AGCO RT140A

The AGCO RT140A is a tractor produced by Agco. It is equipped with a 402.5 ci 6.6 L engine. The listed engine power is Diesel (listed): 170 hp / 126.8 kW. Transmission: PowerMaxx CVT. Operating weight: 14300 to 15100 pounds.

Engine Power
Diesel (listed): 170 hp / 126.8 kW
Fuel & Capacities
100 gal 378.5 L
Transmission
PowerMaxx CVT
Operating Weight
14300 to 15100 pounds

Overview

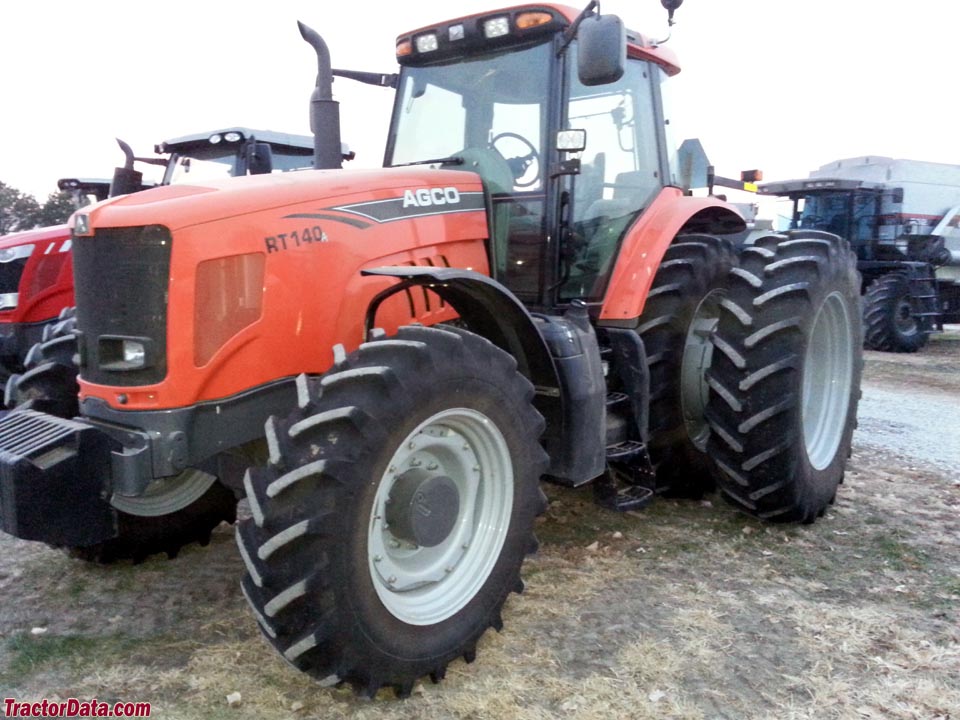

AGCO RT140A tractor photo
2006 - 2011 RT-A SeriesRow-Crop tractor RT-A Series Row-Crop tractor
Production
Manufacturer
AGCO
Row-Crop tractor
Built in Beauvais, France
Original price
$93,670 (2009 Auto-6 2WD )
$102,895 ( Auto-6 4WD )
$109,893 ( CVT 4WD )
AGCO RT140A Engine
SisuDiesel 6.6L 6-cyl diesel
Fuel tank
100 gal 378.5 L
Engine details ...
AGCO RT140A Power
Engine
170 hp 126.8 kW
PTO (claimed)
140 hp 104.4 kW
Drawbar (tested)
127.7 hp 95.2 kW
PTO (tested)
179.7 hp 134.0 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lock
front and rear
Power steering
Hydraulic wet disc brakes
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.
Hydraulics
Type
closed center pressure flow compensated (PFC)
Pressure
2900 psi 200.0 bar
Valves
3 to 5
Total flow
29 gpm 109.8 lpm
39 gpmOptOptional 147.6 lpm
Tractor hitch
Rear Type
3/3N
Control
electronic position and lower-link draft control
Rear lift
16,500 lbs 7484 kg
CVT Rear lift
16,140 lbs 7321 kg
Front Hitch
optional
Front lift
8,800 lbs 3991 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/540E/1000
Front PTO
2/3 OptOptional
Front PTO Type
1000
Dimensions & Tires
2WD Wheelbase
118.6 inches 301 cm
4WD Wheelbase
117.9 inches 299 cm
Weight
14300 to 15100 pounds
Front tire
10.00x16
2WD Rear tire
18.4R42
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
120
150 OptOptional
Batteries
2
Battery CCA
550
Battery volts
12

Engine

Engine Detail — 402.5 ci / 6.6 L Diesel

Manufacturer
SisuDiesel 66CTA
Configuration
turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement
402.5 ci 6.6 L
Emissions
Tier III
Power
170 hp 126.8 kW
Maximum Power
200 hp 149.1 kW
Fuel system
electronic common rail fuel injection
Air cleaner
dry cartridge
Pre-heating
grid heater
Starter volts
12

Transmission

Transmission options
32-speed partial power shift
24-speed partial power shift
continuously variable transmission

Transmission — QuadraShift

Transmission
QuadraShift
Type
partial power shift
Gears
32 forward and reverse
Clutch
wet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.

Transmission — Auto-6

Transmission
Auto-6
Type
partial power shift
Gears
24 forward and reverse
Clutch
wet disc
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.

Transmission — PowerMaxx CVT

Transmission
PowerMaxx CVT
Type
continuously variable transmission
Gears
infinite forward and reverse (two-range)
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.
RT140A PowerMaxx CVT continuously variable transmission speeds

Dimensions

AGCO RT140A Tires
2WD Standard tires (ag)
Front: 10.00x16. Rear: 18.4R42
4WD Standard tires (ag)
Front: 14.9R30. Rear: 18.4R42
Dimensions
2WD Wheelbase
118.6 inches 301 cm
4WD Wheelbase
117.9 inches 299 cm
4WD Length
196 inches 497 cm
4WD CVT Length
187.8 inches 477 cm
Width
79.1 inches 200 cm
Height (cab)
119 inches 302 cm
4WD Shipping weight
14,300 lbs 6486 kg
CVT Shipping weight
15,100 lbs 6849 kg
Bar rear axle
3.74 by 91.9 inches 94 by 2334 mm
Bar rear axle
3.74 by 117.2 inches 94 by 2976 mm
2WD Front tread
64.1 to 79.9 inches 162 to 202 cm
4WD Front tread
60.9 to 88 inches 154 to 223 cm
Rear tread
67.6 to 120 inches 171 to 304 cm

Tests

Tractor Tests
OECD 2200: diesel 32-speed 4WD
OECD 2197: diesel CVT 4WD
OECD 2395: diesel 24-speed 4WD
OECD 2420: diesel CVT 4WD
OCED Tractor Test 2200
Diesel 32-speed 4WD March 2004 - June 2004, Link: OCED Tractor Test 2200 file
PTO performance
Power at rated engine speed
140.7 hp 104.9 kW
Fuel use
8.7 gal/hour 32.9 l/hour
Power at rated PTO speed
145.2 hp 108.3 kW
Fuel use
8.2 gal/hour 31.0 l/hour
Drawbar performance
Max power
121.5 hp 90.6 kW
Fuel use
8.6 gal/hour 32.6 l/hour
Gear 4TA used for power test.
Max pull
16,455 lbs 7463 kg
Gear 1TD used for pull test.
OCED Tractor Test 2197
Diesel CVT 4WD December 2003 - May 2004, Link: OCED Tractor Test 2197 file
PTO performance
Max power
154.4 hp 115.1 kW
Fuel use
8.8 gal/hour 33.3 l/hour
Power at rated engine speed
143.2 hp 106.8 kW
Fuel use
9.4 gal/hour 35.6 l/hour
Power at rated PTO speed
153.1 hp 114.2 kW
Fuel use
9.1 gal/hour 34.4 l/hour
Drawbar performance
Max power
115.1 hp 85.8 kW
Fuel use
9.3 gal/hour 35.2 l/hour
Pull at 7.70 KPH
Max pull
16,690 lbs 7570 kg
Pull at 3.85 KPH
OCED Tractor Test 2395
Diesel 24-speed 4WD August 2007 - October 2007, Link: OCED Tractor Test 2395 file
PTO performance
Power at rated engine speed
153.8 hp 114.7 kW
Fuel use
9.5 gal/hour 36.0 l/hour
Power at rated PTO speed
180.4 hp 134.5 kW
Fuel use
10.1 gal/hour 38.2 l/hour
Drawbar performance
Max power
127.7 hp 95.2 kW
Fuel use
8.9 gal/hour 33.7 l/hour
Pull at 10.50 KPH
Max pull
19,920 lbs 9035 kg
Pull at 2.11 KPH
OCED Tractor Test 2420
Diesel CVT 4WD June 2007 - September 2007, Link: OCED Tractor Test 2420 file
PTO performance
Max power
179.7 hp 134.0 kW
Fuel use
9.7 gal/hour 36.7 l/hour
Power at rated engine speed
153.8 hp 114.7 kW
Fuel use
9.2 gal/hour 34.8 l/hour
Power at rated PTO speed
174.3 hp 130.0 kW
Fuel use
9.7 gal/hour 36.7 l/hour
Drawbar performance
Max power
111.4 hp 83.1 kW
Fuel use
8.4 gal/hour 31.8 l/hour
Pull at 8.21 KPH
Max pull
19,490 lbs 8840 kg
Pull at 2.45 KPH

Photos

AGCO RT140A

AGCO RT140A

Recommended Implements & Sizing Guide

Engineering recommendations for Agco RT140A based on its 170 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT140A.

Estimated Continuous Field Runtime: 11.3 hrs

Approximately 11.3 hours of continuous field operation at ~75% rated power on a full tank (100 gal / 378.5 L).

Estimated 75% Load Fuel Burn~8.8 gal/hr (33.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Agco RT140A Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT140A.

Converted Equivalents:

Horsepower (HP)170 hp
Kilowatts (kW)126.8 kW
Metric Horsepower (PS / CV)172.4 PS

Direct Competitor Comparison

Compare AGCO RT140A against same-era industry alternatives in the same horsepower class.

Current Model
Agco

AGCO RT140A

Engine Power:Diesel (listed): 170 hp / 126.8 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 6485

Engine Power:153
Production Years:2004 - 2012
View Full Specs→
CaseIHMarket Competitor

CaseIH MXM155

Engine Power:153
Production Years:2002 - 2007
View Full Specs→
DeereMarket Competitor

Deere 6155M

Engine Power:155
Production Years:2015 - 2026
View Full Specs→
Deutz-FahrMarket Competitor

Deutz-Fahr 6160 TTV

Engine Power:155
Production Years:2012 - 2022
View Full Specs→
