AGCO RT120
The AGCO RT120 is a tractor produced by Agco. It is equipped with a 408 ci 6.7 L engine. The listed engine power is Diesel (listed): 150 hp / 111.9 kW. Transmission: QuadraShift. Operating weight: 12059 to 15055 pounds.
Engine Power
Diesel (listed): 150 hp / 111.9 kW
Fuel & Capacities
70 gal
264.9 L
Transmission
QuadraShift
Operating Weight
12059 to 15055 pounds
Overview
 | 2004 - 2005
RT SeriesRow-Crop tractor
RT Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
AGCO RT120 Engine | |
|---|---|
Cummins 6.7L 6-cyl diesel | |
Fuel tank | 70 gal
264.9 L |
Engine details ...  | |
AGCO RT120 Power | |
|---|---|
Engine | 150 hp
111.9 kW |
PTO (claimed) | 120 hp
89.5 kW |
Drawbar (tested) | 100.3 hp
74.8 kW |
PTO (tested) | 122.2 hp
91.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with optional automatic climate control. | |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensating (PFC) |
Pressure | 2900 psi
200.0 bar |
Valves | 3 or 4 |
SCV flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/IIIN |
Control | electronic lower-link |
Rear lift (at 24"/610mm) | 9,000 lbs
4082 kg |
10,500 lbs (CVT)
4762 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Front PTO | optional |
Dimensions & Tires | |
|---|---|
Wheelbase | 109.5 inches
278 cm |
Weight | 12059 to 15055 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Batteries | 2 |
Battery volts | 12 |
Engine
Engine Detail — 408 ci / 6.7 L Diesel
Manufacturer | Cummins |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 408 ci
6.7 L |
Bore/Stroke | 4.094x5.179 inches
104 x 132 mm |
Emissions | Tier II |
Power | 150 hp
111.9 kW |
Air cleaner | dual paper elements |
Pre-heating | grid heater |
Compression | 17.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
continuously variable transmission | |
32-speed partial power shift |
Transmission — PowerMaxx CVT
Transmission | PowerMaxx CVT |
Type | continuously variable transmission |
Gears | infinite forward and reverse (2-range) |
 | |
Transmission — QuadraShift
Transmission | QuadraShift |
Type | partial power shift |
Gears | 32 forward and reverse |
Four power shift gears in four ranges. | |
Dimensions
AGCO RT120 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 109.5 inches
278 cm |
Clearance (drawbar) | 14 inches
35 cm |
Front tread | 63.4 to 72.6 inches
161 to 184 cm |
Rear tread | 69.3 to 119.1 inches
176 to 302 cm |
AGCO RT120 Weight | |
|---|---|
Shipping | 12,059 lbs (4WD Cab)
5469 kg |
13,988 lbs (4WD CVT Cab)
6344 kg | |
Operating | 15,055 lbs (4WD CVT Cab)
6828 kg |
Ballasted | 16,545 lbs
7504 kg |
Tests
OCED Tractor Test 2235 | |
|---|---|
Diesel CVT 4WD
April 2004 - June 2004,
Link: OCED Tractor Test 2235 file | |
PTO performance | |
Max power | 122.2 hp
91.1 kW |
Fuel use | 8.0 gal/hour
30.3 l/hour |
Power at rated engine speed | 119.9 hp
89.4 kW |
Fuel use | 8.1 gal/hour
30.7 l/hour |
Power at rated PTO speed | 120.6 hp
89.9 kW |
Fuel use | 7.6 gal/hour
28.8 l/hour |
Drawbar performance | |
Max power | 100.3 hp
74.8 kW |
Fuel use | 8.1 gal/hour
30.7 l/hour |
Pull at 7.83 KPH | |
Max pull | 16,815 lbs
7627 kg |
Pull at 3.03 KPH | |
Photos

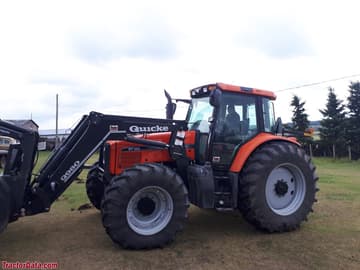

AGCO RT120
Recommended Implements & Sizing Guide
Engineering recommendations for Agco RT120 based on its 150 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT120.
Estimated Continuous Field Runtime: 9 hrs
Approximately 9 hours of continuous field operation at ~75% rated power on a full tank (70 gal / 265 L).
Estimated 75% Load Fuel Burn~7.8 gal/hr (29.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco RT120 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT120.
Converted Equivalents:
Horsepower (HP)150 hp
Kilowatts (kW)111.9 kW
Metric Horsepower (PS / CV)152.1 PS
