AGCO Allis 9170

The AGCO Allis 9170 is a tractor produced by Agco Allis. It is equipped with a 584 ci 9.6 L engine. The rated power output is 173.37 hp 129.3 kW. Transmission: 18 forward and 6 reverse. Operating weight: 16000 lbs 7257 kg.

Overview

	1991 - 1992 9100 SeriesRow-Crop tractorWhite built
1991 - 1992
9100 Series
Row-Crop tractor
White built

1991 - 1992
9100 Series
Row-Crop tractor
White built

Production
Distributor	AGCO Allis
Manufacturer	White
Row-Crop tractor
Built in Coldwater, Ohio, USA
Original price was $68,000 in 1992

AGCO Allis 9170 Engine
Deutz 9.6L 6-cyl diesel
Fuel tank	90 gal 340.7 L
Engine details ...

AGCO Allis 9170 Transmission
18-speed three-speed power shift
Transmission details ...

AGCO Allis 9170 Power
Drawbar (claimed)	154 hp 114.8 kW
PTO (claimed)	173 hp 129.0 kW
Drawbar (tested)	155.86 hp 116.2 kW
PTO (tested)	173.37 hp 129.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2500 psi 172.4 bar
Valves	2 or 3
Pump flow	24 gpm 90.8 lpm

Tractor hitch
Rear Type	III/II
Control	position and draft control
Rear lift (at ends)	7628 lbs 3460 kg
	88746 lbsOptOptional 40255 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2168

Dimensions & Tires
2WD Wheelbase	119 inches 302 cm
4WD Wheelbase	115 inches 292 cm
Weight	16000 lbs 7257 kg
Front tire	11.00-16
2WD Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	105
Batteries	2
Battery volts	12

References
9100 Series published in 1991, by AGCO

Engine

	1991 - 1992 9100 SeriesRow-Crop tractorWhite built
1991 - 1992
9100 Series
Row-Crop tractor
White built

1991 - 1992
9100 Series
Row-Crop tractor
White built

Engine Detail — 584 ci / 9.6 L Diesel

Manufacturer	Deutz BF6L513R
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	584 ci 9.6 L
Bore/Stroke	4.92x5.12 inches 125 x 130 mm
Compression	15.8:1
Rated RPM	2300
Starter volts	12
Oil capacity	23.5 qts 22.2 L

Transmission

	1991 - 1992 9100 SeriesRow-Crop tractorWhite built
1991 - 1992
9100 Series
Row-Crop tractor
White built

1991 - 1992
9100 Series
Row-Crop tractor
White built

Transmission — 18 forward and 6 reverse three-speed power shift

Type	three-speed power shift
Gears	18 forward and 6 reverse
Clutch	330mm dry disc
Six forward gears, each with a three-speed power shift.
With 18.4R38 rear tires.

Dimensions

	1991 - 1992 9100 SeriesRow-Crop tractorWhite built
1991 - 1992
9100 Series
Row-Crop tractor
White built

1991 - 1992
9100 Series
Row-Crop tractor
White built

AGCO Allis 9170 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4R38
4WD Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
2WD Wheelbase	119 inches 302 cm
4WD Wheelbase	115 inches 292 cm
Length	200 inches 508 cm
Width	96 inches*Width over standard axle. 243 cm
Height (cab)	121 inches 307 cm
Height (exhaust)	120 inches 304 cm
Weight	16000 lbs 7257 kg
Bar rear axle	3.875 by 96 inches 98 by 2438 mm
Bar rear axle	3.875 by 115 inches 98 by 2921 mmOptOptional
2WD Front tread	60 to 80 inches 152 to 203 cm
4WD Front tread	61 to 87 inches 154 to 220 cm
Rear tread	62 to 102 inches 157 to 259 cm

Tests

	1991 - 1992 9100 SeriesRow-Crop tractorWhite built
1991 - 1992
9100 Series
Row-Crop tractor
White built

1991 - 1992
9100 Series
Row-Crop tractor
White built

Nebraska Tractor Test 1634
Diesel 18-speed 2WD October 31 - November 15, 1989 Link: Nebraska Tractor Test 1634 file
PTO performance
Power at rated engine speed	173.37 hp 129.3 kW
Fuel use	11.0 gal/hour 41.6 l/hour
Power at rated PTO speed	178.70 hp 133.3 kW
Fuel use	10.7 gal/hour 40.5 l/hour
Drawbar performance
Max power	155.86 hp 116.2 kW
Fuel use	11.1 gal/hour 42.0 l/hour
Gear 3D used for power test.
Max pull	19,027 lbs 8630 kg
Gear 2D used for pull test.

Photos

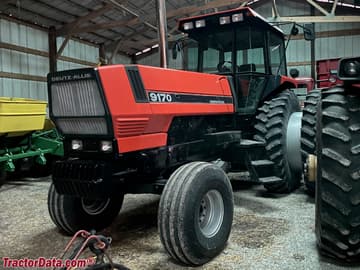

AGCO Allis 9170
