AGCO Allis 8610

The AGCO Allis 8610 is a tractor produced by Agco Allis. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 105.1 hp 78.4 kW. Transmission: 36 forward and reverse. Operating weight: 10,869 lbs 4930 kg.

Overview

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Production
Distributor	AGCO Allis
Manufacturer	SAME
Row-Crop tractor
Built in Italy
Original price was $58,000 in 1997

Variants
Antares 110	similar SAME model

AGCO Allis 8610 Engine
SLH 6.0L 6-cyl diesel
4WD Fuel tank	55.5 gal 210.1 L
2WD Fuel tank	60.8 gal 230.1 L
Engine details ...

AGCO Allis 8610 Power
PTO (claimed)	103 hp 76.8 kW
Drawbar (tested)	78.34 hp 58.4 kW
PTO (tested)	105.1 hp 78.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Valves	3
Pump flow	15.17 gpm 57.4 lpm

Tractor hitch
Rear Type	II/I
Rear lift	9259 lbs 4199 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000/1000E

Dimensions & Tires
Wheelbase	110 inches 279 cm
Weight	10,869 lbs 4930 kg
Front tire	11.00-16
Rear tire	18.4R38 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery volts	12

References
8600 Series published in 1990, by AGCO

Engine

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SLH 1000.6 A
Fuel Type	Diesel
Configuration	6-cylinder, air-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Rated RPM	2500
Starter volts	12

AGCO Allis 8610 Engine

Transmission

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Transmission options
24-speed partially synchronized
36-speed partial power shift

Transmission — 24 forward and 12 reverse partially synchronized

Type	partially synchronized
Gears	24 forward and 12 reverse
Clutch	dry disc
Six synchronized gears in four ranges with synchronized reverser.

Transmission — 36 forward and reverse partial power shift

Type	partial power shift
Gears	36 forward and reverse

Dimensions

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

AGCO Allis 8610 Tires
Standard tires (ag)	Front: 11.00-16. Rear: 18.4R38 (2WD)
	Front: 14.9R28. Rear: 18.4R38 (4WD)

Dimensions
Wheelbase	110 inches 279 cm
Shipping weight	10,869 lbs 4930 kg
4WD Front tread	64 to 92.8 inches 162 to 235 cm

Tests

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

OCED Tractor Test 1328
Diesel 24-speed 4WD June 1991 - July 1991, Link: OCED Tractor Test 1328 file
PTO performance
Power at rated engine speed	105.1 hp 78.4 kW
Fuel use	6.2 gal/hour 23.5 l/hour
Power at rated PTO speed	101.6 hp 75.8 kW
Fuel use	5.9 gal/hour 22.3 l/hour
Drawbar performance
Max power	78.34 hp 58.4 kW
Fuel use	6.0 gal/hour 22.7 l/hour
Gear 5N used for power test.
Max pull	10190 lbs 4622 kg
Gear 3N used for pull test.

Photos

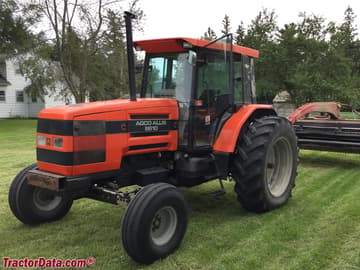

AGCO Allis 8610
