AGCO Allis 8630

The AGCO Allis 8630 is a tractor produced by Agco Allis. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 119.6 hp 89.2 kW. Transmission: 36 forward and reverse. Operating weight: 10500 lbs 4762 kg.

Overview

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Production
Distributor	AGCO Allis
Manufacturer	SAME
Row-Crop tractor
Built in Italy
Original price was $65,500 in 1997

Variants
Antares 130	similar SAME model

AGCO Allis 8630 Engine
SLH 6.0L 6-cyl diesel
Fuel tank	55.5 gal 210.1 L
Engine details ...

AGCO Allis 8630 Power
PTO (claimed)	119 hp 88.7 kW
Drawbar (tested)	93.59 hp 69.8 kW
PTO (tested)	119.6 hp 89.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Valves	3
Pump flow	27.7 gpm 104.8 lpm

Tractor hitch
Rear Type	III/II
Rear lift	10010 lbs 4540 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000/1000E

Dimensions & Tires
Wheelbase	110 inches 279 cm
Weight	10500 lbs 4762 kg
Front tire	11.00-16
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
8600 Series published in 1990, by AGCO

Engine

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer	SLH 1000.6 AT
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	366.1 ci 6.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Rated RPM	2500
Starter volts	12

AGCO Allis 8630 Engine

Transmission

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

Transmission options
24-speed partially synchronized
36-speed partial power shift

Transmission — 24 forward and 12 reverse partially synchronized

Type	partially synchronized
Gears	24 forward and 12 reverse
Six synchronized gears in four ranges with synchronized reverser.

Transmission — 36 forward and reverse partial power shift

Type	partial power shift
Gears	36 forward and reverse

Dimensions

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

AGCO Allis 8630 Tires
Ag front	11.00-16
Ag rear	18.4R38

Dimensions
Wheelbase	110 inches 279 cm
Weight	10500 lbs 4762 kg

Tests

	1991 - 1997 8600 SeriesRow-Crop tractorSAME built
1991 - 1997
8600 Series
Row-Crop tractor
SAME built

1991 - 1997
8600 Series
Row-Crop tractor
SAME built

OCED Tractor Test 1306
Diesel 48-speed 4WD November 1990 - 1990, Link: OCED Tractor Test 1306 file
PTO performance
Power at rated engine speed	119.6 hp 89.2 kW
Fuel use	7.0 gal/hour 26.5 l/hour
Drawbar performance
Max power	93.59 hp 69.8 kW
Fuel use	7.1 gal/hour 26.9 l/hour
Gear 6N-Lo used for power test.
Max pull	11170 lbs 5066 kg
Gear 4N-Hi used for pull test.

Photos

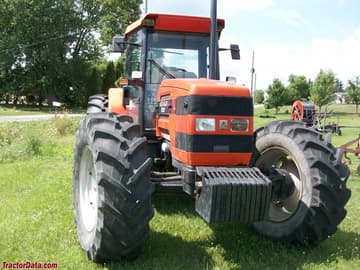

AGCO Allis 8630.

AGCO Allis 8630.

AGCO Allis 8630.

AGCO Allis 8630 cab interior.
