AGCO 1823H

The AGCO 1823H is a tractor produced by Agco Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The listed engine power is Gasoline (gross): 23 hp / 17.2 kW. Transmission: Tuff Torq K71. Operating weight: 666 lbs 302 kg.

Engine Power
Gasoline (gross): 23 hp / 17.2 kW
Fuel & Capacities
4 gal 15.1 L
Transmission
Tuff Torq K71
Operating Weight
666 lbs 302 kg

Overview

AGCO 1823H tractor photo
2002 - 2006 1800 SeriesGarden tractorSimplicity built 1800 Series Garden tractor Simplicity built

Series map: 1820H1823H20.0hp23.0hp

Note: the AGCO model 1823H is the same as the Simplicity Prestige 23. The following data is from the Prestige 23 listing.
Production
Distributor
AGCO
Manufacturer
Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $6,575 in 2003
Variants
Prestige 23
similar Simplicity model
2823
similar Massey Ferguson model
AGCO 1823H Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank
4 gal 15.1 L
Engine details ...
AGCO 1823H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lock
mechanical rear
Steering
power
Open operator station.
Tractor hitch
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Mid PTO
independent
Clutch
electro-magnetic
Dimensions & Tires
Wheelbase
53 inches 134 cm
Weight
666 lbs 302 kg
Front tire
16x6.5-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
15
Battery CCA
500
Battery volts
12
References
1823H references literature
Lawn & Garden Equipment published in 2004, by AGCO

Engine

Series map: 1820H1823H20.0hp23.0hp

Note: the AGCO model 1823H is the same as the Simplicity Prestige 23. The following data is from the Prestige 23 listing.

Engine Detail — 673 cc / 41.1 ci Gasoline

Manufacturer
Kohler CV23S
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
673 cc 41.1 ci
Bore/Stroke
3.15x2.64 inches 80 x 67 mm
Power (gross)
23 hp 17.2 kW
Compression
8.5:1
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Series map: 1820H1823H20.0hp23.0hp

Note: the AGCO model 1823H is the same as the Simplicity Prestige 23. The following data is from the Prestige 23 listing.

Transmission — Tuff Torq K71

Transmission
Tuff Torq K71
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
4.9 qts 4.6 L
1823H K71 belt-driven hydrostatic speeds

Dimensions

Series map: 1820H1823H20.0hp23.0hp

Note: the AGCO model 1823H is the same as the Simplicity Prestige 23. The following data is from the Prestige 23 listing.
AGCO 1823H Tires
Lawn/turf front
16x6.5-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
53 inches 134 cm
Length
75 inches 190 cm
Width
39 inches 99 cm
Height
50 inches 127 cm
Shipping weight
666 lbs 302 kg
Max rear axle
728 lbs 330 kg
Front axle
Cast-iron

Attachments

Series map: 1820H1823H20.0hp23.0hp

Note: the AGCO model 1823H is the same as the Simplicity Prestige 23. The following data is from the Prestige 23 listing.
Attachment overview
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

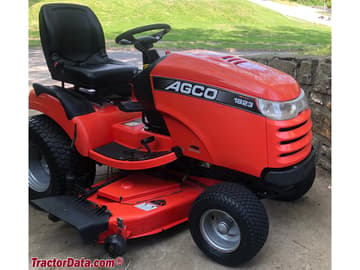

AGCO 1823H garden tractor.

AGCO 1823H garden tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Agco Lawn Tractors AGCO 1823H based on its 23 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco Lawn Tractors AGCO 1823H.

Estimated Continuous Field Runtime: 3.3 hrs

Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Agco Lawn Tractors AGCO 1823H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco Lawn Tractors AGCO 1823H.

Converted Equivalents:

Horsepower (HP)23 hp
Kilowatts (kW)17.2 kW
Metric Horsepower (PS / CV)23.3 PS
