AGCO 1720H

The AGCO 1720H is a tractor produced by Agco Lawn Tractors. It is equipped with a 569 cc 34.75 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Tuff Torq K66. Operating weight: 586 lbs*Weight of tractor alone. 265 kg.

Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
4 gal 15.1 L
Transmission
Tuff Torq K66
Operating Weight
586 lbs*Weight of tractor alone. 265 kg

Overview

AGCO 1720H tractor photo
2002 - 2004 1700 SeriesGarden tractorSimplicity built 1700 Series Garden tractor Simplicity built

Series map: 1718H1720H18.0hp20.0hp

Note: the AGCO model 1720H is the same as the Simplicity Conquest 20H. The following data is from the Conquest 20H listing.
Production
Distributor
AGCO
Manufacturer
Simplicity
Garden tractor
Original price was $5,275 in 2005
Variants
Conquest 20H
similar Simplicity model
2720H
similar Massey Ferguson model
AGCO 1720H Engine
20HP Briggs & Stratton 569cc 2-cyl gasoline
Fuel tank
4 gal 15.1 L
Engine details ...
AGCO 1720H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Tractor hitch
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
53 inches 134 cm
Weight
586 lbs 265 kg
Front tire
16x6.5-8
Rear tire
23x10.5-12
Full dimensions and tires ...
Electrical
Charging amps
16
Battery CCA
340
Battery volts
12
References
1720H references literature
Lawn & Garden Equipment published in 2004, by AGCO

Engine

Series map: 1718H1720H18.0hp20.0hp

Note: the AGCO model 1720H is the same as the Simplicity Conquest 20H. The following data is from the Conquest 20H listing.

Engine Detail — 569 cc / 34.75 ci Gasoline

Manufacturer
Briggs & Stratton Vanguard
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
569 cc 34.75 ci
Bore/Stroke
2.83x2.75 inches 72 x 70 mm
Power (gross)
20 hp 14.9 kW
Air cleaner
dual dry element
Starter
electric
Starter volts
12
Oil capacity
1.75 qts 1.7 L

Transmission

Series map: 1718H1720H18.0hp20.0hp

Note: the AGCO model 1720H is the same as the Simplicity Conquest 20H. The following data is from the Conquest 20H listing.

Transmission — Tuff Torq K66

Transmission
Tuff Torq K66
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
2.6 qts 2.5 L
1720H K66 belt-driven hydrostatic speeds

Dimensions

Series map: 1718H1720H18.0hp20.0hp

Note: the AGCO model 1720H is the same as the Simplicity Conquest 20H. The following data is from the Conquest 20H listing.
AGCO 1720H Tires
Lawn/turf front
16x6.5-8
Lawn/turf rear
23x10.5-12
Dimensions
Wheelbase
53 inches 134 cm
Length
75 inches 190 cm
Width
39 inches 99 cm
Height
47 inches 119 cm
Weight
586 lbs*Weight of tractor alone. 265 kg
Max rear axle
697 lbs 316 kg
Front axle
Cast-iron

Attachments

Series map: 1718H1720H18.0hp20.0hp

Note: the AGCO model 1720H is the same as the Simplicity Conquest 20H. The following data is from the Conquest 20H listing.
Attachment overview
44" mid-mount mower deck
50" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

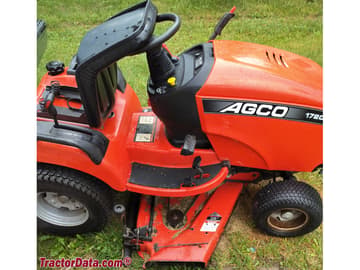

AGCO 1720H

AGCO 1720H

Recommended Implements & Sizing Guide

Engineering recommendations for Agco Lawn Tractors AGCO 1720H based on its 20 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Agco Lawn Tractors AGCO 1720H.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
