AGCO 2020LC
The AGCO 2020LC is a tractor produced by Agco Lawn Tractors. It is equipped with a 617 cc 37.65 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Sundstrand 15U. Operating weight: 690 lbs 312 kg.
Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
6 gal
22.7 L
Transmission
Sundstrand 15U
Operating Weight
690 lbs
312 kg
Overview
 | 1999 - 2003
2000 SeriesGarden tractorSimplicity built
2000 Series
Garden tractor
Simplicity built |
|---|
Series map: 2027LC↑ 2004-20092020H2020LC2023H20.0hp20.0hp23.0hp
Note: the AGCO model 2020LC is the same as the Simplicity Legacy 20LC. The following data is from the Legacy 20LC listing. |
Production | |
|---|---|
Distributor | AGCO |
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price | $8,650 (1998 ) |
$10,300 (2001 ) | |
AGCO 2020LC Engine | |
|---|---|
20HP Kawasaki 617cc 2-cyl gasoline | |
Fuel tank | 6 gal
22.7 L |
Engine details ...  | |
AGCO 2020LC Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Power steering | |
Disc brakes | |
Open operator station. Hard-side weather cab optional. Two-post ROPS available. | |
Hydraulics | |
|---|---|
Pressure | 950 psi
65.5 bar |
Pump flow | 3 gpm
11.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Rear lift | 450 lbs
204 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Clutch | electric |
Rear PTO Type | 540 (1.375) |
2000 (1.0) | |
Front PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 55 inches
139 cm |
Weight | 822 lbs
372 kg |
Front tire | 18x8.5-8 |
Rear tire | 26x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery CCA | 500 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Equipment published in 2000, by AGCO | |
Product Guide Fall 1998 published by Simplicity | |
Operator's Manual Legacy / 2000 / 2900 Series (1717573) published in 2003 | |
2002 Product Specifications published by Simplicity |
Engine
Series map: 2027LC↑ 2004-20092020H2020LC2023H20.0hp20.0hp23.0hp
Note: the AGCO model 2020LC is the same as the Simplicity Legacy 20LC. The following data is from the Legacy 20LC listing. |
Engine Detail — 617 cc / 37.65 ci Gasoline
Manufacturer | Kawasaki FD620 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, liquid-cooled horizontal-shaft V-Twin |
Displacement | 617 cc
37.65 ci |
Bore/Stroke | 2.99x2.66 inches
76 x 68 mm |
Power (gross) | 20 hp
14.9 kW |
Compression | 9:1 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.6 qts
1.5 L |
Coolant capacity | 2.85 qts
2.7 L |
Transmission
Series map: 2027LC↑ 2004-20092020H2020LC2023H20.0hp20.0hp23.0hp
Note: the AGCO model 2020LC is the same as the Simplicity Legacy 20LC. The following data is from the Legacy 20LC listing. |
Transmission — Sundstrand 15U
Transmission | Sundstrand 15U |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 6 qts
5.7 L |
Oil type | ATF F |
Oil change | 400 h |
Sundstrand 15 hydrostatic with Peerless 2600 transaxle. | |
 | |
ATF F |
|---|
Dimensions
Series map: 2027LC↑ 2004-20092020H2020LC2023H20.0hp20.0hp23.0hp
Note: the AGCO model 2020LC is the same as the Simplicity Legacy 20LC. The following data is from the Legacy 20LC listing. |
AGCO 2020LC Tires | |
|---|---|
Lawn/turf front | 18x8.5-8 |
Lawn/turf rear | 26x12-12 |
Dimensions | |
|---|---|
Wheelbase | 55 inches
139 cm |
Length | 78.75 inches
200 cm |
Width | 44.75 inches
113 cm |
Height (steering wheel) | 51 inches
129 cm |
Height (ROPS) | 76.5 inches
194 cm |
Weight | 822 lbs
372 kg |
Max rear axle | 1800 lbs
816 kg |
Ground clearance | 8 inches
20 cm |
Rear axle | 1.1875 inch diameter
30 mm |
Attachments
Series map: 2027LC↑ 2004-20092020H2020LC2023H20.0hp20.0hp23.0hp
Note: the AGCO model 2020LC is the same as the Simplicity Legacy 20LC. The following data is from the Legacy 20LC listing. |
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Kwik-Way Backhoe | |
|---|---|
Backhoe type | Kwik-Way Backhoe |
Weight | 690 lbs
312 kg |
Transport height | 85 inches
215 cm |
Bucket width | 9 inches
22 cm |
12 inches
30 cm | |
2-Foot flat digging depth | 78 inches
198 cm |
Reach from pivot | 123 inches
312 cm |
Loading height | 84 inches
213 cm |
Bucket Rotation | 147° |
Swing Arc | 151° |
Photos

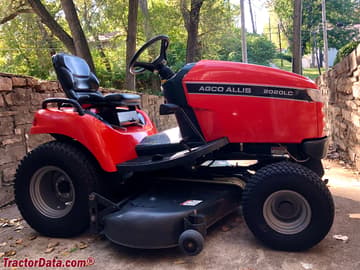

AGCO 2020LC garden tractor.
AGCO 2020LC operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Agco Lawn Tractors AGCO 2020LC based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco Lawn Tractors AGCO 2020LC.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (6 gal / 22.7 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco Lawn Tractors AGCO 2020LC Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco Lawn Tractors AGCO 2020LC.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
