allis chalmers 190xt

OverviewEngineTransmissionDimensionsTestsPhotos
Allis Chalmers 190XT tractor photo
1964 - 1971 Row-Crop tractor
1964 - 1971
Row-Crop tractor
1964 - 1971
Row-Crop tractor
1964 - 1971
Row-Crop tractor
Tractor Tests
NTTL 887: diesel 8-speed 2WD
NTTL 927: LP gas 8-speed 2WD
NTTL 929: gasoline 8-speed 2WD
Nebraska Tractor Test 887

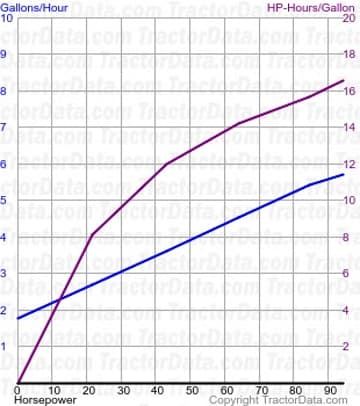

190XT fuel use from test 887
190XT fuel use from test 887
190XT fuel use from test 887
190XT fuel use from test 887
Nebraska Tractor Test 887
Diesel 8-speed 2WD April 10 - 16, 1965 Link: Nebraska Tractor Test 887 file
PTO performance
Power at rated engine speed
93.64 hp 69.8 kW
Fuel use
5.7 gal/hour 21.6 l/hour
Power at rated PTO speed
89.71 hp 66.9 kW
Fuel use
5.3 gal/hour 20.1 l/hour
Drawbar performance
Max power
79.12 hp 59.0 kW
Fuel use
5.7 gal/hour 21.6 l/hour
Gear 4 used for power test.
Max pull
8,917 lbs 4044 kg
Gear 3 used for pull test.
Nebraska Tractor Test 927

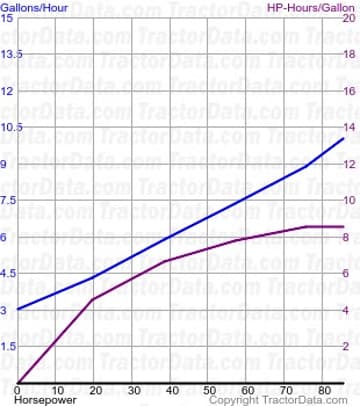

190XT fuel use from test 927
190XT fuel use from test 927
190XT fuel use from test 927
190XT fuel use from test 927
Nebraska Tractor Test 927
LP gas 8-speed 2WD November 9 - 17, 1965 Link: Nebraska Tractor Test 927 file
PTO performance
Power at rated engine speed
85.25 hp 63.6 kW
Fuel use
9.9 gal/hour 37.5 l/hour
Power at rated PTO speed
76.36 hp 56.9 kW
Fuel use
8.7 gal/hour 32.9 l/hour
Drawbar performance
Max power
71.95 hp 53.7 kW
Fuel use
10.0 gal/hour 37.9 l/hour
Gear 4 used for power test.
Max pull
9418 lbs 4272 kg
Gear 2 used for pull test.
Nebraska Tractor Test 929

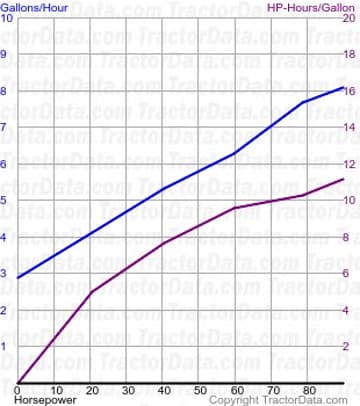

190XT fuel use from test 929
190XT fuel use from test 929
190XT fuel use from test 929
190XT fuel use from test 929
Nebraska Tractor Test 929
Gasoline 8-speed 2WD November 9 - 16, 1965 Link: Nebraska Tractor Test 929 file
PTO performance
Power at rated engine speed
89.53 hp 66.8 kW
Fuel use
8.0 gal/hour 30.3 l/hour
Power at rated PTO speed
82.30 hp 61.4 kW
Fuel use
7.2 gal/hour 27.3 l/hour
Drawbar performance
Max power
76.65 hp 57.2 kW
Fuel use
8.5 gal/hour 32.2 l/hour
Gear 4 used for power test.
Max pull
9199 lbs 4172 kg
Gear 2 used for pull test.
