allis chalmers 190xt

Allis Chalmers 190XT tractor photo
1964 - 1971 Row-Crop tractor
1964 - 1971
Row-Crop tractor
1964 - 1971
Row-Crop tractor
1964 - 1971
Row-Crop tractor
Transmission
Transmission
Power Director
Type
two-speed power shift
Gears
8 forward and 2 reverse
Clutch
dry disc
Oil capacity
32 qts 30.3 L

38 qts (S/N 23000 and up) 36.0 L
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.

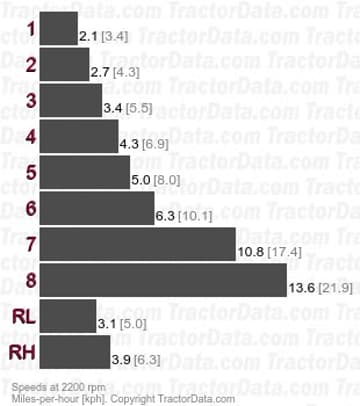

Speeds
With 15.5-38 rear tires.
190XT Power Director two-speed power shift speeds

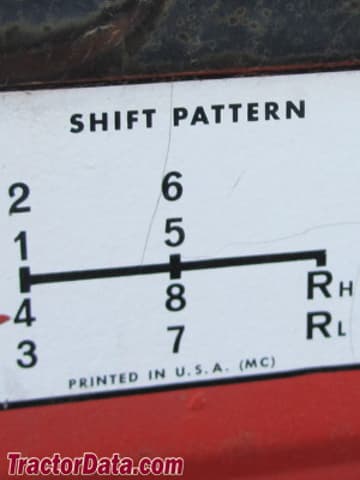

Shift Pattern
Allis Chalmers 190XT transmission controls

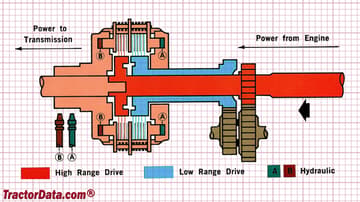

Allis Chalmers 190XT Transmission
Allis Chalmers 190XT transmission image
