Allis Chalmers D19
The Allis Chalmers D19 is a tractor produced by Allis Chalmers. It is equipped with a 262 ci 4.3 L engine. The rated power output is 80 hp 59.7 kW. Transmission: Power Director. Operating weight: 6650 to 6840 pounds.
Engine Power
80 hp
59.7 kW
Fuel & Capacities
LP gas
Transmission
Power Director
Operating Weight
6650 to 6840 pounds
Allis Chalmers D19 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1961 - 1964
D SeriesRow-Crop tractor |
|---|---|
1961 - 1964 | |
D Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Row-Crop tractor | |
Built in West Allis, Wisconsin, USA | |
Total built | 10,591 |
Original price was $5,300 in 1964 | |
Allis Chalmers D19 Transmission | |
|---|---|
8-speed sliding gear | |
Transmission details ...  |
Allis Chalmers D19 Power | |
|---|---|
Engine | 85 hp
63.4 kW |
Diesel Drawbar (claimed) | 62.5 hp
46.6 kW |
Gas Drawbar (claimed) | 66.5 hp
49.6 kW |
LP-gas Drawbar (claimed) | 61.5 hp
45.9 kW |
Diesel PTO (claimed) | 70.4 hp
52.5 kW |
Gas PTO (claimed) | 75.3 hp
56.2 kW |
LP-gas PTO (claimed) | 69.6 hp
51.9 kW |
Plows | 5 |
Drawbar (tested) | 63.91 hp
47.7 kW |
PTO (tested) | 71.54 hp
53.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power assist |
Differential mechanical band and dry disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | II |
Type | Snap-Coupler |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1760 |
Dimensions & Tires | |
|---|---|
Wheelbase | 102.4 inches
260 cm |
Weight | 6650 to 6840 pounds |
Front tire | 6.50x16 |
Rear tire | 15.5x38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
the Big New D-19 published in 1961, by Allis Chalmers | |
D-19 published in 1963, by Allis Chalmers | |
more work... less sweat published in 1962, by Allis Chalmers |
Engine
Engine options | |
|---|---|
Allis Chalmers 4.3L 6-cyl gasoline | |
Allis-Chalmers 4.3L 6-cyl diesel | |
Allis-Chalmers 4.3L 6-cyl LP gas |
Engine Detail — 262 ci / 4.3 L Gasoline
Manufacturer | Allis Chalmers G-262 |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 262 ci
4.3 L |
Bore/Stroke | 3.5625x4.375 inches
90 x 111 mm |
Power | 85 hp
63.4 kW |
Air cleaner | dry with precleaner |
Compression | 8.0:1 |
Rated RPM | 2000 |
Idle RPM | 375-2300 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |

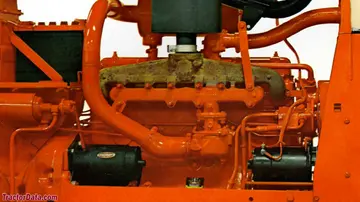

Allis Chalmers D19 Engine | |
|---|---|
 |
Engine Detail — 262 ci / 4.3 L Diesel
Manufacturer | Allis-Chalmers D-262T |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 262 ci
4.3 L |
Bore/Stroke | 3.5625x4.375 inches
90 x 111 mm |
Power | 80 hp
59.7 kW |
Air cleaner | dry with precleaner |
Compression | 14.0:1 (early) |
15.0:1 (late) | |
Rated RPM | 2000 |
Idle RPM | 650-2300 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Engine Detail — 262 ci / 4.3 L LP Gas
Manufacturer | Allis-Chalmers |
Fuel Type | LP gas |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 262 ci
4.3 L |
Bore/Stroke | 3.5625x4.375 inches
90 x 111 mm |
Power | 80 hp
59.7 kW |
Air cleaner | dry with precleaner |
Compression | 9.35:1 |
Rated RPM | 2000 |
Idle RPM | 375-2300 |
Firing order | 1-5-3-6-2-4 |
Starter volts | 12 |
Allis Chalmers D19 Engine | |
|---|---|
 |
Transmission
Transmission — Power Director
Transmission | Power Director |
Type | sliding gear |
Gears | 8 forward and 2 reverse |
With 15.8x38 rear tires. | |
 | |
Dimensions
Allis Chalmers D19 Tires | |
|---|---|
Ag front | 6.50x16 |
Ag rear | 15.5x38 |
Ag front | 9.00x10 (single front) |
Ag rear | 16.9x34 |
14.9x38 | |
18.4x34 | |
23.1x26 (rice) | |
Dimensions | |
|---|---|
Wheelbase | 102.4 inches
260 cm |
Length | 154 inches
391 cm |
Width | 83.6 inches
212 cm |
Height | 89 inches
226 cm |
Rear axle | 2.75 inch diameter
69 mm |
Front tread | 60 to 84 inches
152 to 213 cm |
Rear tread | 60 to 80 inches
152 to 203 cm |
Rear tread | 60 to 88 inches
152 to 223 cm (PAVT) |
Allis Chalmers D19 Weight | |
|---|---|
Gas Operating | 6650 lbs
3016 kg |
Diesel Operating | 6840 lbs
3102 kg |
Ballasted | 11210 lbs
5084 kg |
Tests
Tractor Tests | |
|---|---|
NTTL 810: gasoline 8-speed 2WD | |
NTTL 811: diesel 8-speed 2WD | |
NTTL 814: LP gas 8-speed 2WD |
Nebraska Tractor Test 810 | |
|---|---|
Gasoline 8-speed 2WD
April 3 - 19, 1962
Link: Nebraska Tractor Test 810 file | |
PTO performance | |
Power at rated engine speed | 71.54 hp
53.3 kW |
Fuel use | 6.2 gal/hour
23.5 l/hour |
Power at rated PTO speed | 65.19 hp
48.6 kW |
Fuel use | 5.6 gal/hour
21.2 l/hour |
Drawbar performance | |
Max power | 63.91 hp
47.7 kW |
Fuel use | 6.8 gal/hour
25.7 l/hour |
Gear 5 used for power test. | |
Max pull | 8587 lbs
3895 kg |
Gear 1 used for pull test. | |
Nebraska Tractor Test 811 | |
|---|---|
Diesel 8-speed 2WD
April 3 - 18, 1962
Link: Nebraska Tractor Test 811 file | |
PTO performance | |
Power at rated engine speed | 66.92 hp
49.9 kW |
Fuel use | 5.2 gal/hour
19.7 l/hour |
Power at rated PTO speed | 64.83 hp
48.3 kW |
Fuel use | 4.9 gal/hour
18.5 l/hour |
Drawbar performance | |
Max power | 62.05 hp
46.3 kW |
Fuel use | 5.4 gal/hour
20.4 l/hour |
Gear 5 used for power test. | |
Max pull | 8459 lbs
3837 kg |
Gear 1 used for pull test. | |
Nebraska Tractor Test 814 | |
|---|---|
LP gas 8-speed 2WD
April 9 - 19, 1962
Link: Nebraska Tractor Test 814 file | |
PTO performance | |
Power at rated engine speed | 66.19 hp
49.4 kW |
Fuel use | 7.4 gal/hour
28.0 l/hour |
Power at rated PTO speed | 59.88 hp
44.7 kW |
Fuel use | 6.5 gal/hour
24.6 l/hour |
Drawbar performance | |
Max power | 58.29 hp
43.5 kW |
Fuel use | 7.5 gal/hour
28.4 l/hour |
Gear 5 used for power test. | |
Max pull | 8674 lbs
3934 kg |
Gear 1 used for pull test. | |
Photos
Allis-Chalmers D19, right side.
Allis-Chalmers D19 with LP-gas engine.
Allis-Chalmers D19 with LP-gas engine.
Allis-Chalmers D19, left side.
Allis-Chalmers D19 operator station and controls.
Allis-Chalmers D19 high-crop with LP-gas engine.
Allis-Chalmers D19 high-crop with LP-gas engine.
