Allis Chalmers 6060

The Allis Chalmers 6060 is a tractor produced by Allis Chalmers. It is equipped with a 200 ci 3.3 L engine. The rated power output is 63.83 hp 47.6 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x2 2WD. Operating weight: 6100 to 6465 pounds.

Overview

	1980 - 1984 6000 SeriesRow-Crop tractor
1980 - 1984
6000 Series
Row-Crop tractor

Production
Manufacturer	Allis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built	4,027
Original price	$21,460

Allis Chalmers 6060 Engine
Allis Chalmers 3.3L 4-cyl diesel
Engine details ...

Allis Chalmers 6060 Transmission
8-speed partially synchronized
Transmission details ...

Allis Chalmers 6060 Power
Drawbar (tested)	50.87 hp 37.9 kW
PTO (tested)	63.83 hp 47.6 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Four-post ROPS canopy. Cab and air-conditioning optional.

Capacity
Fuel	32 gal 121.1 L
Rear diff.	37 qts 35.0 L

Hydraulics
Type	open center
Valves	2
Pump flow	11.4 gpm 43.1 lpm
Total flow	19 gpm 71.9 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	3,500 lbs 1587 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	93 inches (2WD) 236 cm
	91.9 inches (4WD) 233 cm
Weight	6100 to 6465 pounds
Front tire	7.50-16
Rear tire	16.9-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	72
Batteries	1
	2 (optional)
Battery volts	12

References
6080 - 6060 published in 1982, by Allis Chalmers

Engine

Engine Detail — 200 ci / 3.3 L Diesel

Manufacturer	Allis Chalmers 433T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	200 ci 3.3 L
Bore/Stroke	3.876x4.250 inches 98 x 108 mm
Air cleaner	paper element with pre-cleander
Compression	14.1:1
Rated RPM	2300
Starter volts	12
Oil capacity	10 qts 9.5 L
Coolant capacity	17 qts 16.1 L

Transmission

Transmission — 8 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 2 reverse
Oil capacity	12 qts 11.4 L
Two ranges with four gears in each range. Synchronized shifting between top two gears (3-4 and 7-8) in each range.
With 15.5-38 rear tires.

Dimensions

Allis Chalmers 6060 Tires
Ag front	7.50-16 (2WD)
	11.2-24 (4WD)
Ag rear	16.9-28 (2WD)
	18.4-28 (4WD)

Dimensions
Wheelbase	93 inches (2WD) 236 cm
	91.9 inches (4WD) 233 cm
Length	146.5 inches 372 cm
Width	68.5 inches 173 cm
Ground clearance	18.1 inches (4WD front axle) 45 cm
	20.4 inches (2WD front axle) 51 cm
	26.7 inches (rear axle) 67 cm

Allis Chalmers 6060 Weight
Shipping	6,100 lbs (2WD ROPS) 2766 kg
Operating	6,465 lbs (2WD ROPS) 2932 kg
Ballasted	8,945 lbs 4057 kg

Allis Chalmers 6060 Height
Hood	69.4 inches 176 cm
ROPS	107.7 inches 273 cm
Cab	103.2 inches 262 cm
Exhaust	110.2 inches 279 cm

Tests

Nebraska Tractor Test 1397
Diesel 8-speed 2WD June 9 - 22, 1981 Link: Nebraska Tractor Test 1397 file
PTO performance
Power at rated engine speed	63.83 hp 47.6 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Power at rated PTO speed	64.90 hp 48.4 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Drawbar performance
Max power	50.87 hp 37.9 kW
Fuel use	3.8 gal/hour 14.4 l/hour
Gear 1-H used for power test.
Max pull	6,846 lbs 3105 kg
Gear 2-L used for pull test.

Photos

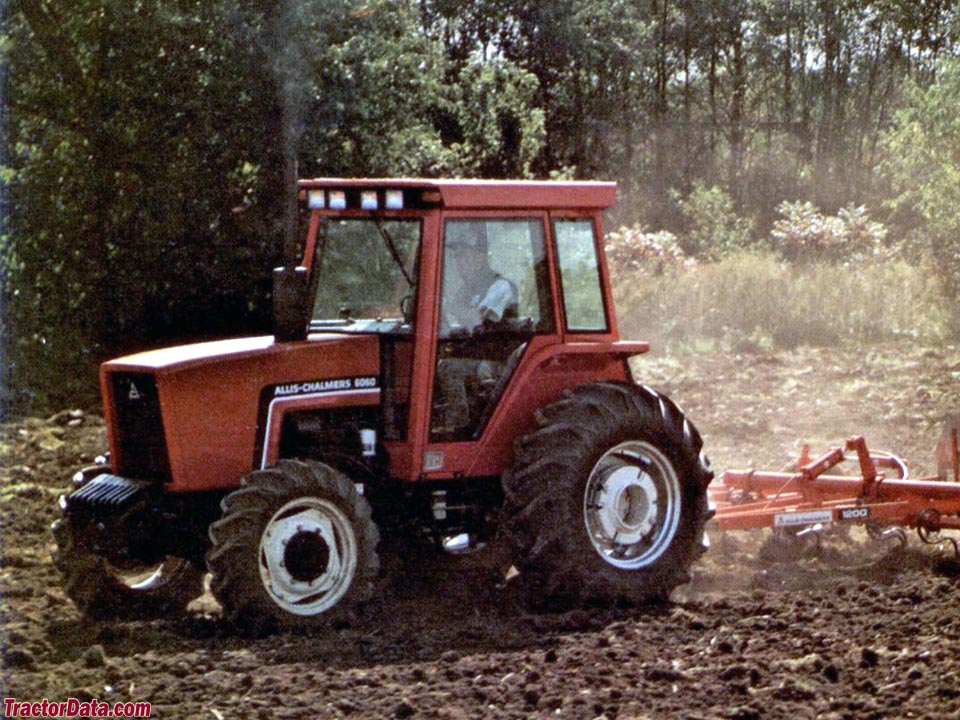

Allis-Chalmers 6060 with four-wheel drive.

Allis-Chalmers 6060 with two-wheel drive.
