Allis Chalmers 508 1690069
The Allis Chalmers 508 1690069 is a tractor produced by Allis Chalmers Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 2 forward and reverse. Operating weight: 429 lbs 194 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
2 forward and reverse
Operating Weight
429 lbs
194 kg
Overview
 | 1974 - 1979
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Original price was $896 in 1979 | |
Allis Chalmers 508 Engine | |
|---|---|
8HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Allis Chalmers 508 Transmission | |
|---|---|
2-speed shuttle | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.4 inches
112 cm |
Weight | 429 lbs
194 kg |
Front tire | 4.10/3.50x4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1974 Buyer's Guide published by Allis-Chalmers |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 2 forward and reverse belt-driven shuttle
Type | belt-driven shuttle |
Gears | 2 forward and reverse |
 | |
Dimensions
Allis Chalmers 508 Tires | |
|---|---|
Lawn/turf front | 4.10/3.50x4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44.4 inches
112 cm |
Length | 57.8 inches
146 cm |
Height (steering wheel) | 36.3 inches
92 cm |
Weight | 429 lbs
194 kg |
Attachments
30" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Overall width | 40.3 inches
102 cm |
Photos

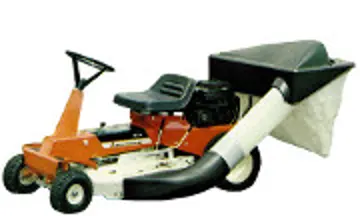

Allis Chalmers 508 1690069 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 508 1690069.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers 508 1690069 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 508 1690069.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
