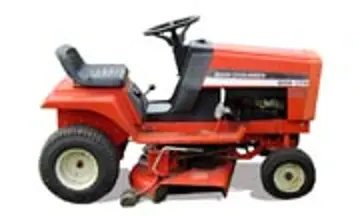

Allis Chalmers 608 LTD

The Allis Chalmers 608 LTD is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 81 lbs 36 kg.

Overview

	1980 - 1985 600 Lawn SeriesLawn tractor 600 Lawn Series Lawn tractor

Production
Manufacturer	Allis Chalmers
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $1,929 in 1984

Allis Chalmers 608 LTD Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Allis Chalmers 608 LTD Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	502 lbs 227 kg
Front tire	13-5.00x6
Rear tire	18-8.50x8
Full dimensions and tires ...

Links
SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com

Electrical
Ground	negative
Battery volts	12

References
Lawn & Garden Tractors published in 1980, by Allis-Chalmers
600 Series/Sprint/All-in-One published in 1982, by Allis-Chalmers
1983 Lawn and Garden Line published by Allis-Chalmers
600 & Sprint Series published in 1984, by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 191707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power	8 hp 6.0 kW
Air cleaner	foam
Rated RPM	3600
Idle RPM	1800-3400
Starter volts	12
Oil capacity	1.13 qts 1.1 L

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Manufacturer	Peerless
Type	belt-driven gear
Gears	5 forward and 1 reverse

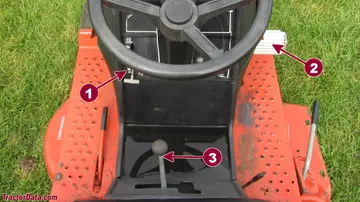

608 LTD Transmission Controls
1	Throttle
2	Clutch/brake
3	Gear shift

Dimensions

Allis Chalmers 608 LTD Tires
Lawn/turf front	13-5.00x6
Lawn/turf rear	18-8.50x8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	62.8 inches 159 cm
Width	34.3 inches 87 cm
Height	39.3 inches 99 cm
Weight	502 lbs*Weight with 36-inch mower deck. 227 kg
Ground clearance	5.5 inches 13 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Allis-Chalmers
	2-blade with manual lift
Cutting width	36 inches 91 cm
Weight	81 lbs 36 kg
Overall width	46 inches 116 cm

Photos

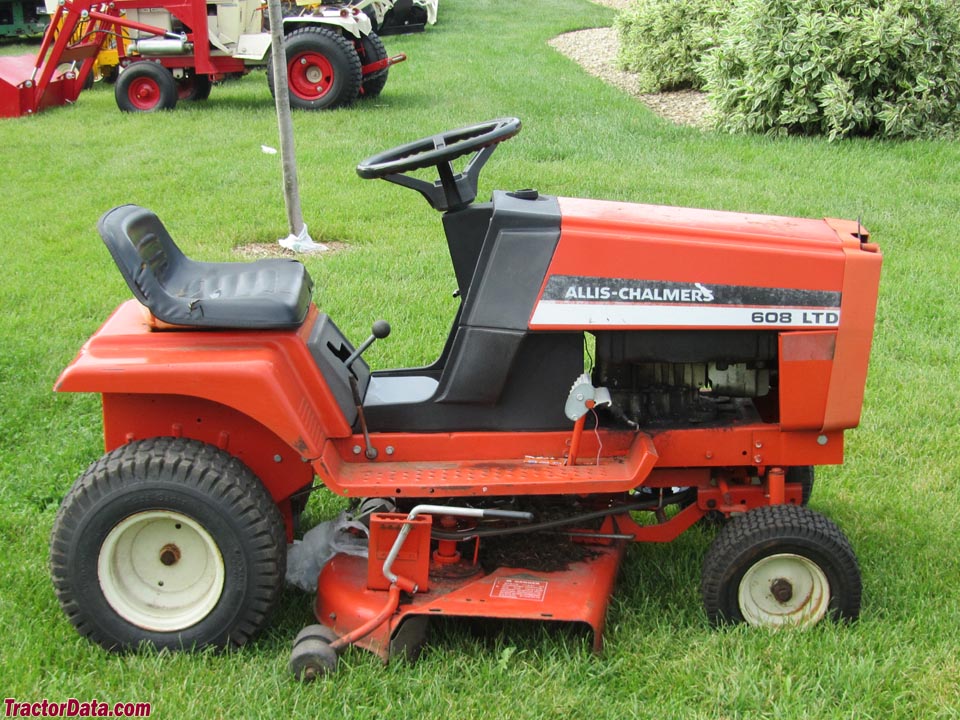

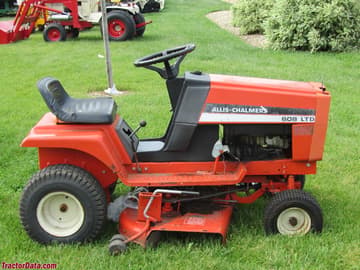

Allis Chalmers 608 LTD

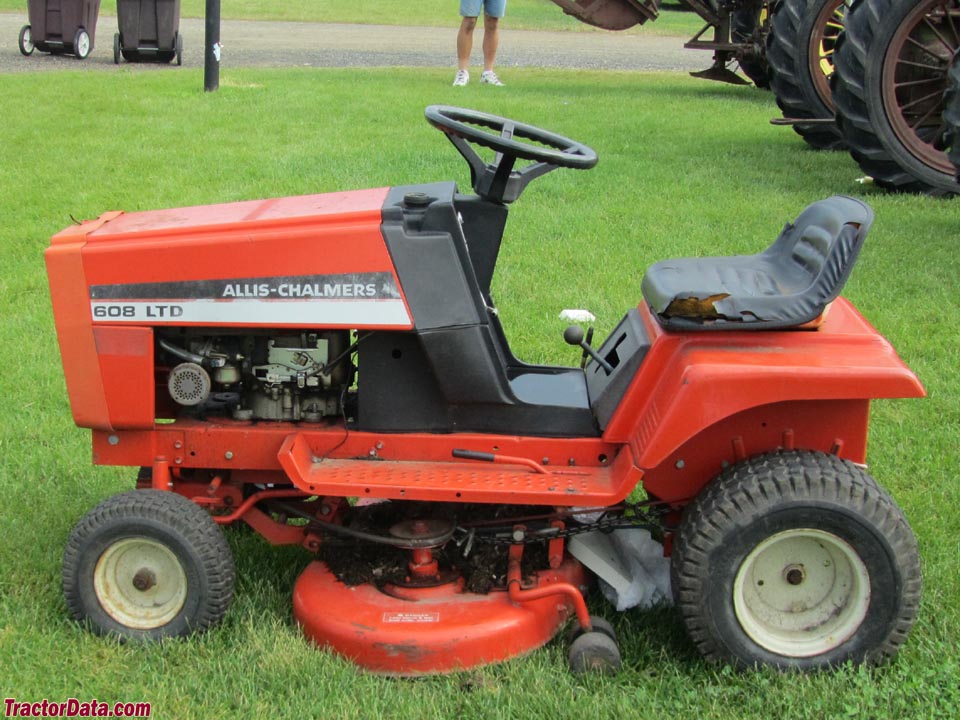

Allis Chalmers 608 LTD

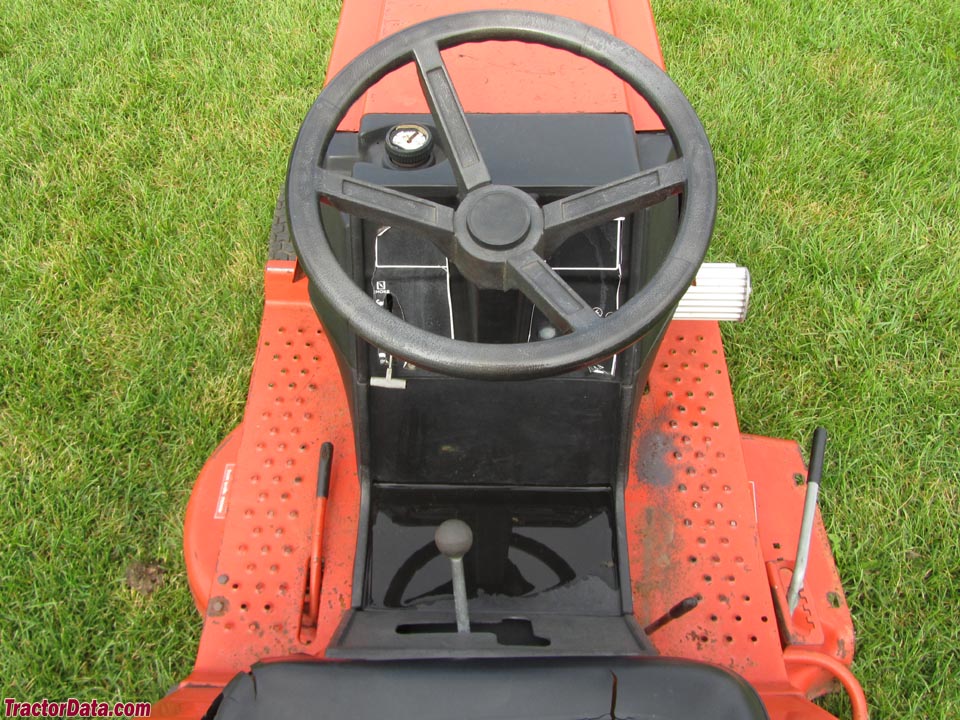

Allis-Chalmers 608LTD operator station and controls.

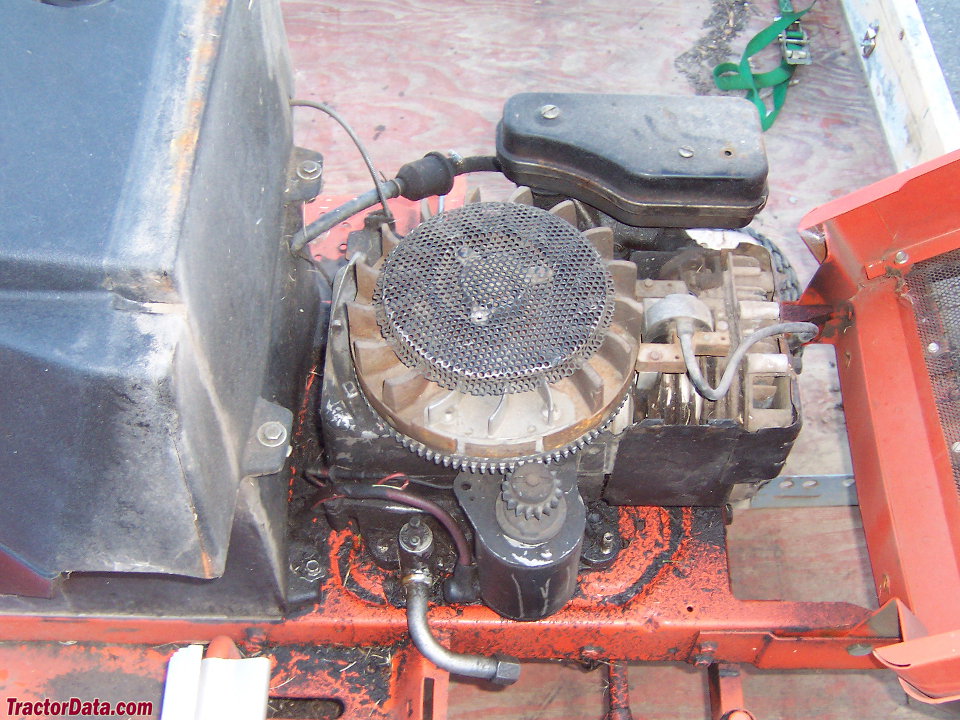

Allis-Chalmers 608LTD hood open, showing engine.

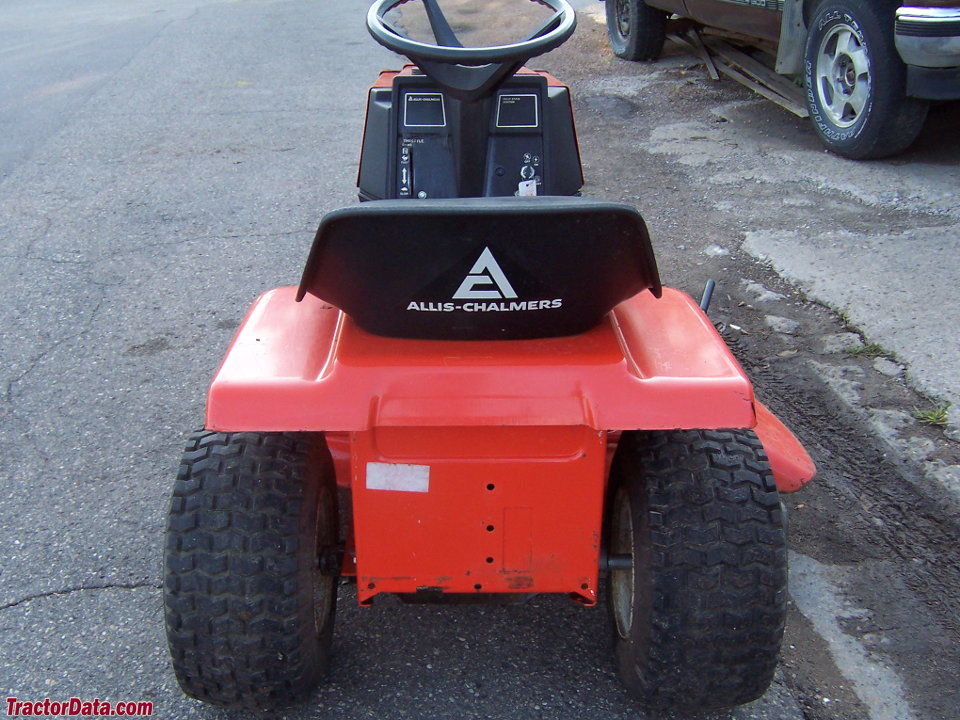

Rear view of the Allis-Chalmers 608LTD.
