Allis Chalmers 608LT

The Allis Chalmers 608LT is a tractor produced by Allis Chalmers Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: Peerless. Operating weight: 490 lbs*Weight with 36-inch mower. 222 kg.

Overview

	1976 - 1978 Lawn tractor

Production
Manufacturer	Allis Chalmers
Lawn tractor
Original price was $1,299 in 1979
The Allis-Chalmers 608LT is the same as the Simplicity 4108.

Allis Chalmers 608LT Engine
8HP Briggs & Stratton 1-cyl gasoline
Fuel tank	0.75 gal 2.8 L
Engine details ...

Allis Chalmers 608LT Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	44.325 inches 112 cm
Weight	490 lbs 222 kg
Front tire	13x5.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Allis-Chalmers Lawn and Garden Equipment published in 1975
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers
Lawn and Garden Tractors published in 1979, by Allis-Chalmers

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Power	8 hp 6.0 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless

Transmission	Peerless
Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Allis Chalmers 608LT Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	44.325 inches 112 cm
Length	57.75 inches 146 cm
Height (steering wheel)	36.25 inches 92 cm
Weight	490 lbs*Weight with 36-inch mower. 222 kg

Attachments

Attachment overview
30" mid-mount mower deck
Snowblower

30" Mower deck
Type	mid-mount Allis Chalmers
Cutting width	30 inches 76 cm
Overall width	40.25 inches 102 cm
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

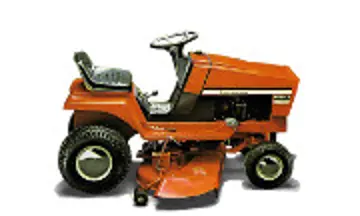

Allis Chalmers 608LT tractor photo
