Allis Chalmers 611 LTD

The Allis Chalmers 611 LTD is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (listed): 11 hp / 8.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 81 lbs 36 kg.

Engine Power
Gasoline (listed): 11 hp / 8.2 kW
Fuel & Capacities
2.2 gal 8.3 L
Transmission
5 forward and 1 reverse
Operating Weight
81 lbs 36 kg

Overview

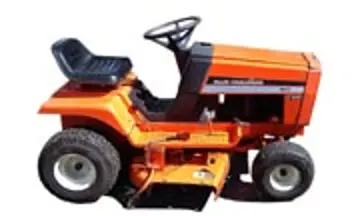

Allis Chalmers 611 LTD tractor photo
1980 - 1985 600 Lawn SeriesLawn tractor 600 Lawn Series Lawn tractor
Production
Manufacturer
Allis Chalmers
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,099 in 1984
The Allis-Chalmers 611 was similar to the Simplicity 4200 Series lawn tractors.
Allis Chalmers 611 LTD Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank
2.2 gal 8.3 L
Engine details ...
Allis Chalmers 611 LTD Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual
Disc brakes
Open operator station.
Dimensions & Tires
Wheelbase
45.5 inches 115 cm
Weight
330 to 526 pounds
Front tire
13-5.00x6
Rear tire
18-9.50x8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
611 LTD references literature
Lawn & Garden Tractors published in 1980, by Allis-Chalmers
600 Series/Sprint/All-in-One published in 1982, by Allis-Chalmers
1983 Lawn and Garden Line published by Allis-Chalmers
600 & Sprint Series published in 1984, by Allis-Chalmers
1984 Lawn and Garden Line published by Allis-Chalmers
1985 Lawn and Garden Line published by Allis-Chalmers

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer
Briggs & Stratton 252707
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
399 cc 24.36 ci
Bore/Stroke
3.4375x2.325 inches 87 x 59 mm
Power
11 hp 8.2 kW
Air cleaner
foam
Rated RPM
3600
Idle RPM
1750-3400
Starter volts
12

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
5 forward and 1 reverse
611 LTD belt-driven gear speeds

Dimensions

Allis Chalmers 611 LTD Tires
Lawn/turf front
13-5.00x6
15x6.00-6 *Introduced for the 1984 model year.
Lawn/turf rear
18-9.50x8
Dimensions
Wheelbase
45.5 inches 115 cm
Length
65.25 inches 165 cm
Width
35.25 inches 89 cm
Height (steering wheel)
39 inches 99 cm
Shipping weight
330 lbs 149 kg
526 lbs*Weight with 36-inch mower deck. 238 kg
Ground clearance
5.5 inches (transmission) 13 cm
Clearance (front axle)
9.2 inches 23 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
36" Mower deck
Type
mid-mount Allis-Chalmers
2-blade with manual lift
Cutting width
36 inches 91 cm
Weight
81 lbs 36 kg
Overall width
46 inches 116 cm

Photos

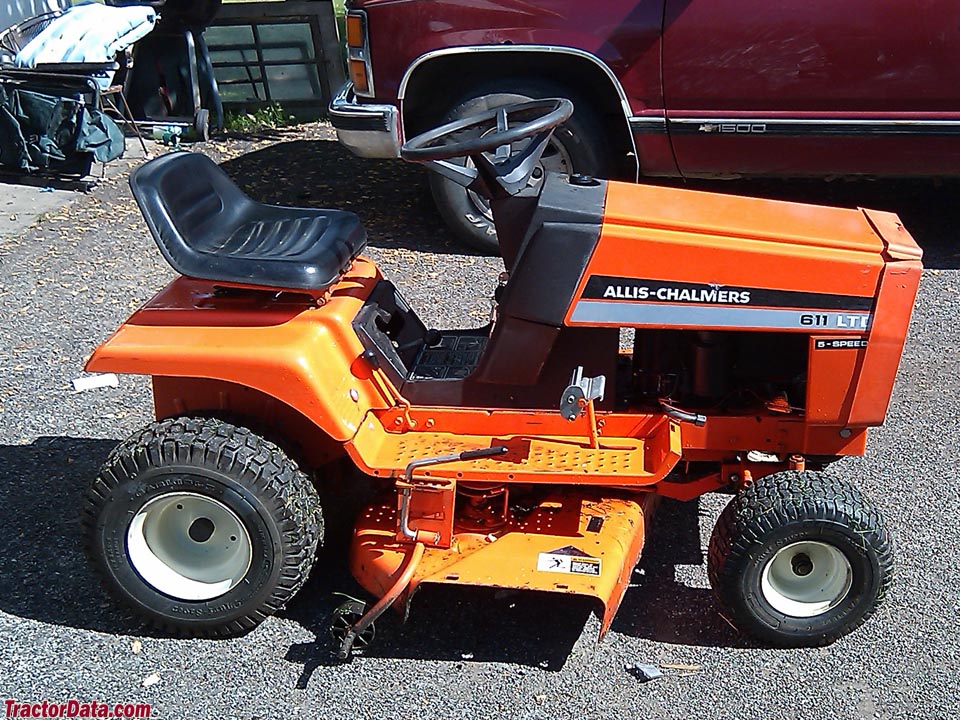

Allis Chalmers 611 LTD

Allis Chalmers 611 LTD

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 611 LTD.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Allis Chalmers Lawn Tractors Allis Chalmers 611 LTD Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 611 LTD.

Converted Equivalents:

Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
