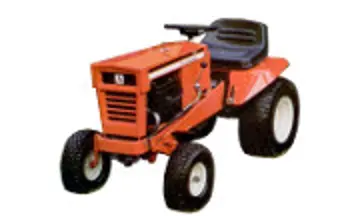

Allis Chalmers 610
The Allis Chalmers 610 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 453 lbs*Weight of tractor only. 205 kg.
Overview
 | 1974 - 1976
600 SeriesGarden tractor
600 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $1,378 in 1979 | |
Variants | |
|---|---|
Broadmoor 5010 | similar Simplicity model |
Allis Chalmers 610 Engine | |
|---|---|
10HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
Allis Chalmers 610 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 453 lbs
205 kg |
Front tire | 5.30/4.50-6 |
Rear tire | 20x8.00x10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1974 Buyer's Guide published by Allis-Chalmers | |
Allis-Chalmers Lawn and Garden Equipment published in 1975 |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton 251707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.4375x2.625 inches
87 x 67 mm |
Power | 10 hp
7.5 kW |
Air cleaner | foam |
Rated RPM | 3600 |
Starter volts | 12 |

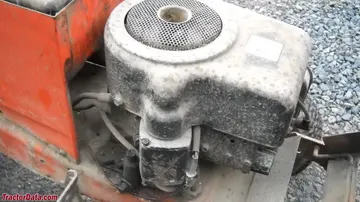

Allis Chalmers 610 Engine | |
|---|---|
 | |
Image courtesy of Jacob Lorenz |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Allis Chalmers 610 Tires | |
|---|---|
Lawn/turf front | 5.30/4.50-6 |
Lawn/turf rear | 20x8.00x10 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 59 inches
149 cm |
Width | 31.5 inches
80 cm |
Height | 31 inches
78 cm |
Weight | 453 lbs*Weight of tractor only.
205 kg |
Ground clearance | 5.5 inches
13 cm |
Front tread | 26 inches
66 cm |
Rear tread | 22.4 inches
56 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

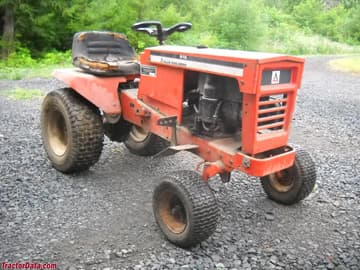

Allis Chalmers 610

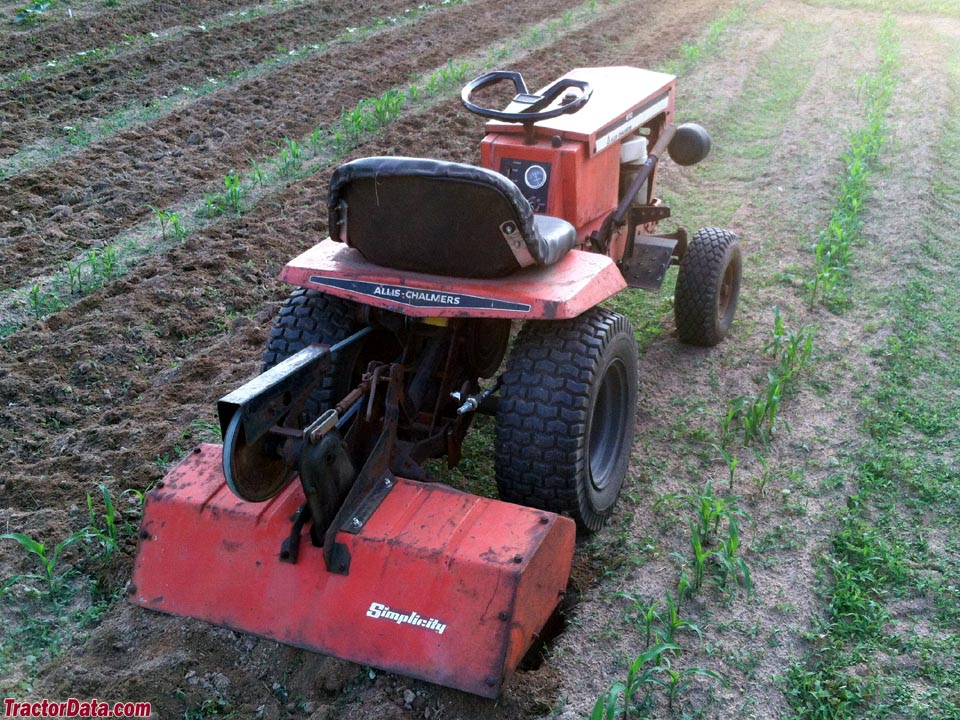

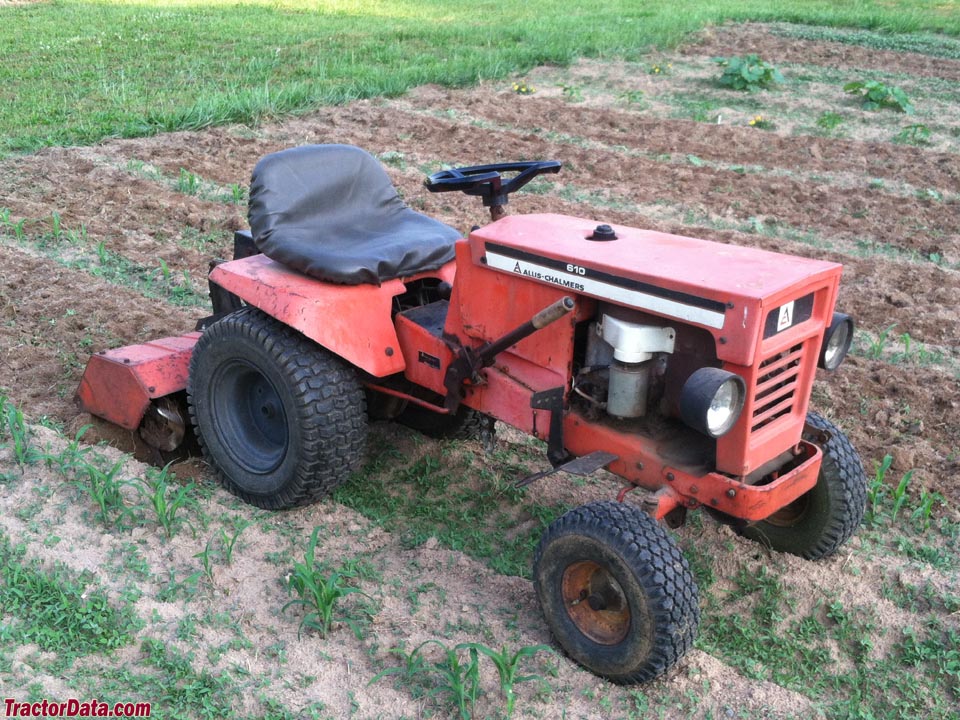

Allis-Chalmers 610 with mounted tiller.
Allis-Chalmers 610 with mounted tiller.

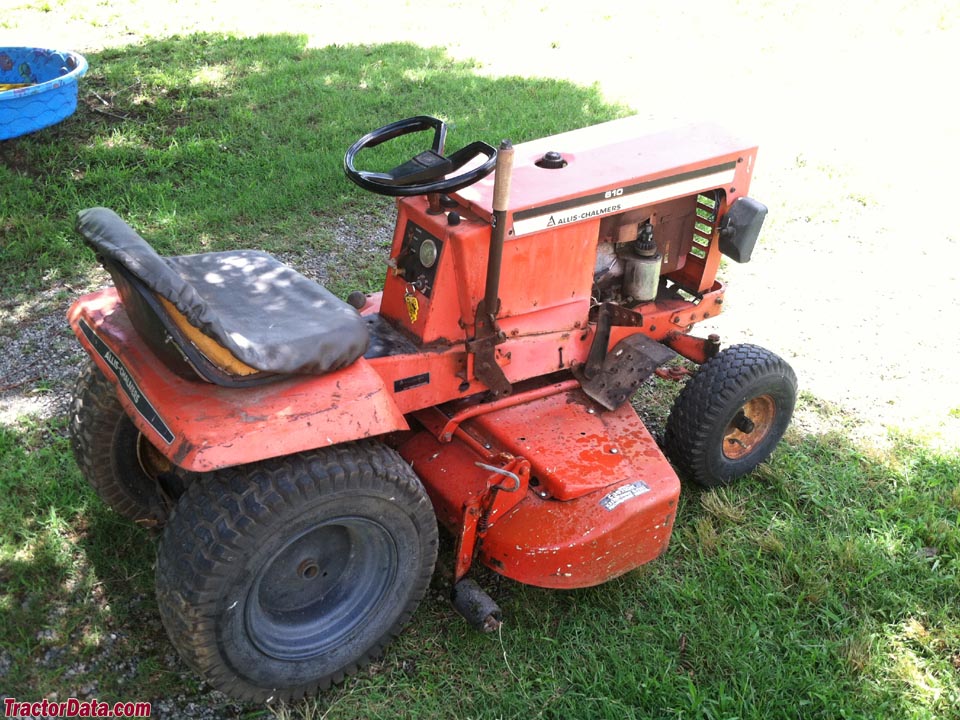

Allis-Chalmers 610 with mower deck.

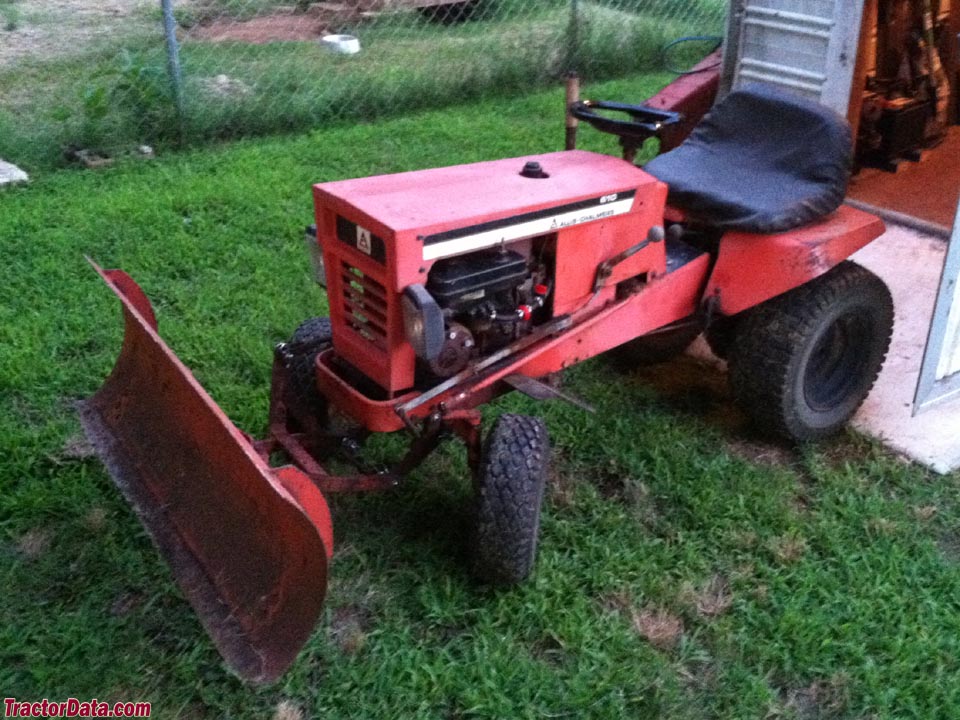

Allis-Chalmers 610 with front-mount blade.

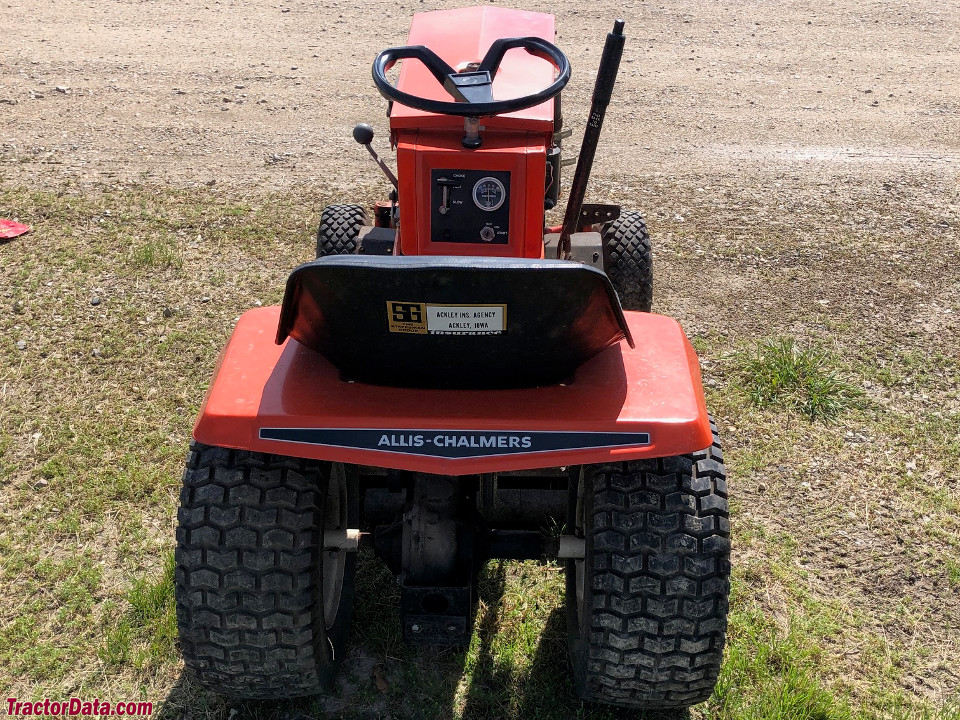

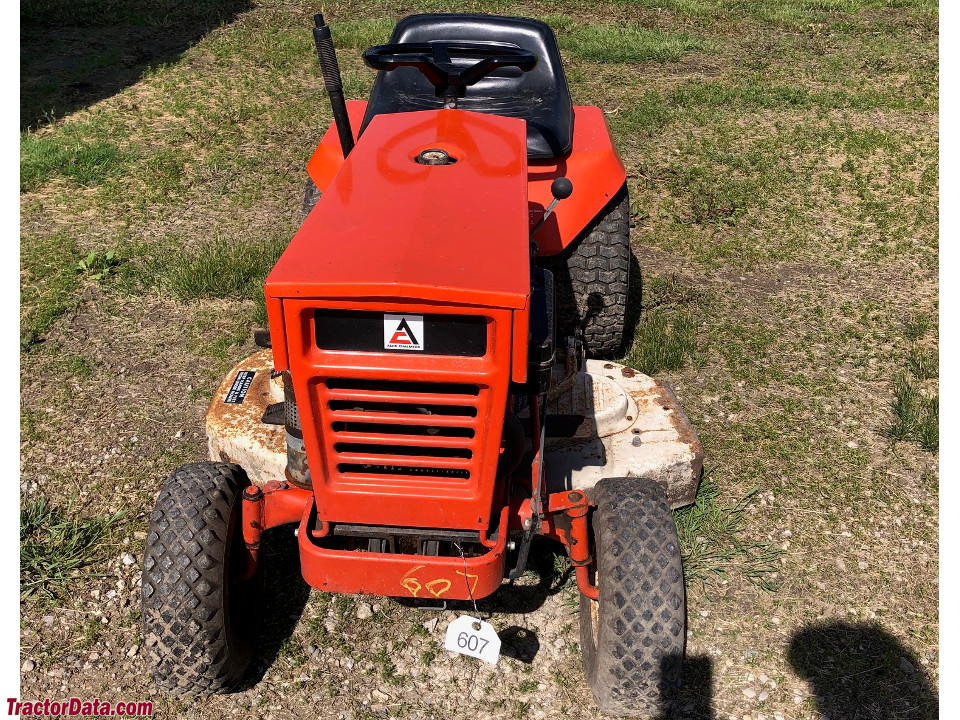

Allis-Chalmers 610.
Allis-Chalmers 610.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 610.
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Allis Chalmers Lawn Tractors Allis Chalmers 610 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 610.
Converted Equivalents:
