Allis Chalmers B-10

The Allis Chalmers B-10 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 376 cc 23 ci engine. The listed engine power is Gasoline (listed): 9 hp / 6.7 kW. Transmission: Hi-Lo. Operating weight: 685 lbs 310 kg.

Engine Power
Gasoline (listed): 9 hp / 6.7 kW
Fuel & Capacities
1.5 gal 5.7 L
Transmission
Hi-Lo
Operating Weight
685 lbs 310 kg

Overview

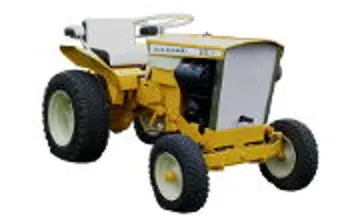

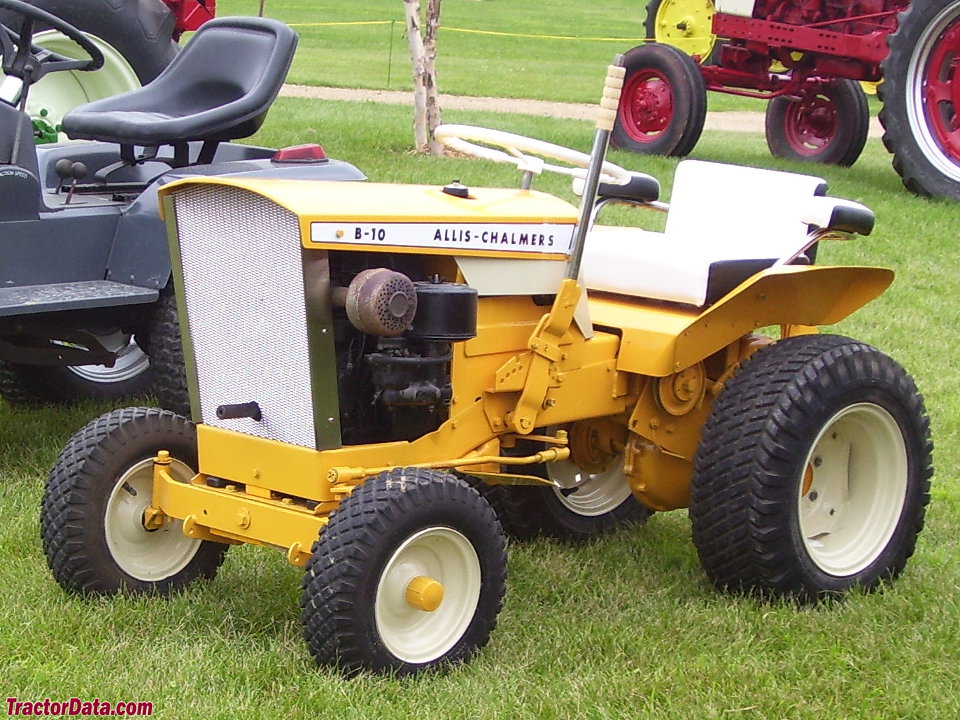

Allis Chalmers B-10 tractor photo
1963 - 1968 Model year 1963-196419651966-1968 B SeriesGarden tractorSimplicity built B Series Garden tractor Simplicity built
Production
Distributor
Allis Chalmers
Manufacturer
Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Allis Chalmers B-10 Engine
9HP Briggs & Stratton 376cc 1-cyl gasoline
Fuel tank
1.5 gal 5.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO
live
Mid PTO
live
Front PTO
live
Dimensions & Tires
Wheelbase
44 inches 111 cm
Weight
685 lbs 310 kg
Front tire
4.80x8
Rear tire
23-8.50x12
Full dimensions and tires ...
Links
Allis-Chalmers B-10: information, photos and old advertising literature at SimpleTractors.com
References
B-10 references literature
Service Manual B Series Tractors (9003453) published in 1976

Engine

Engine Detail — 376 cc / 23 ci Gasoline

Manufacturer
Briggs & Stratton 243431
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
376 cc 23 ci
Bore/Stroke
3.00x3.25 inches 76 x 83 mm
Power
9 hp 6.7 kW
Air cleaner
oiled foam
Rated RPM
3600
Torque
15.75 lb-ft 21.4 Nm
Torque RPM
2400
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission options
3-speed gear
6-speed gear

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse
B-10 belt-driven gear speeds

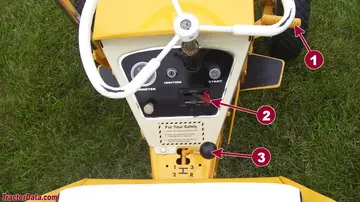

B-10 Transmission Controls
Allis Chalmers B-10 transmission controls
1
Clutch/brake
2
Throttle
3
Gear shift

Transmission — Hi-Lo

Transmission
Hi-Lo
Type
belt-driven gear
Gears
6 forward and 2 reverse

Dimensions

Allis Chalmers B-10 Tires
Lawn/turf front
4.80x8
Lawn/turf rear
23-8.50x12
Dimensions
Wheelbase
44 inches 111 cm
Length
68 inches 172 cm
Width
34.25 inches 86 cm
Height (steering wheel)
37.25 inches 94 cm
Height (hood)
33.375 inches 84 cm
Weight
685 lbs 310 kg
Ground clearance
6 inches 15 cm

Attachments

Attachment overview
32" mid-mount mower deck
42" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

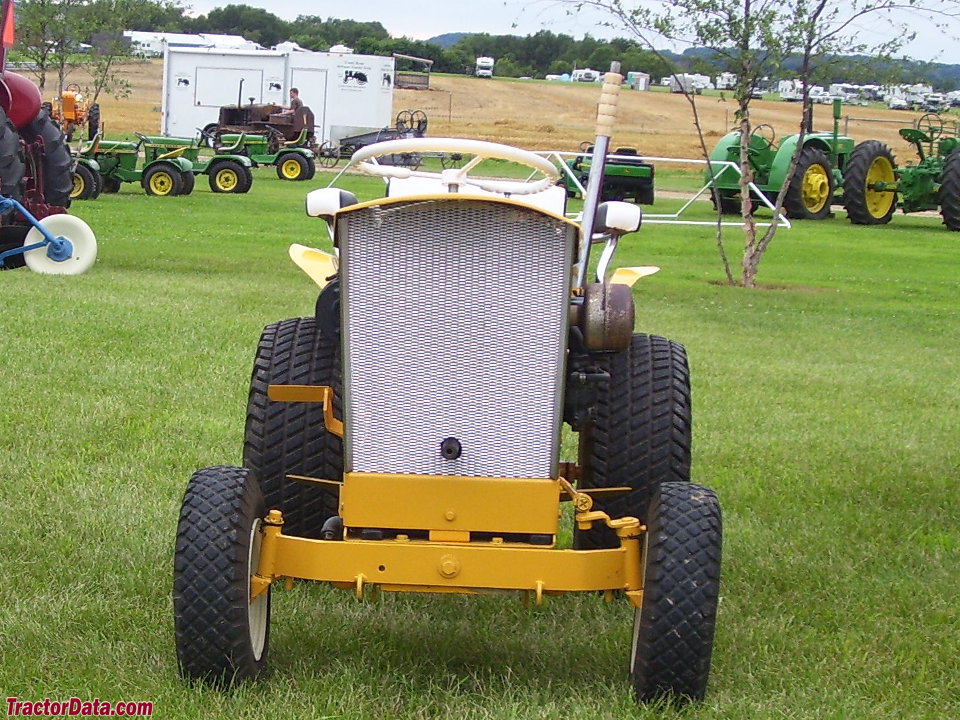

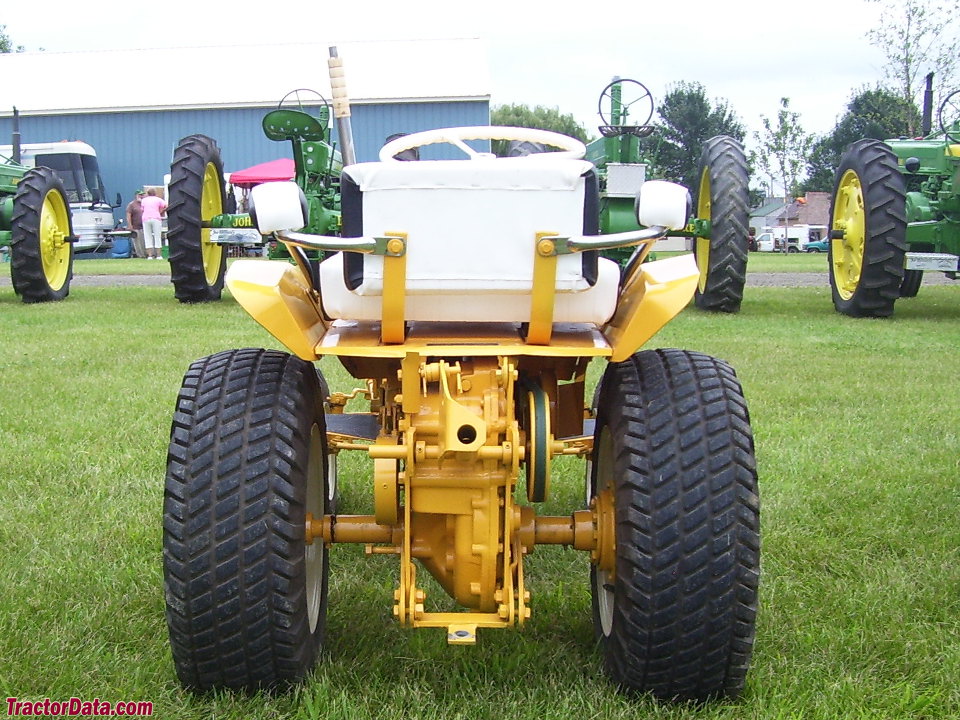

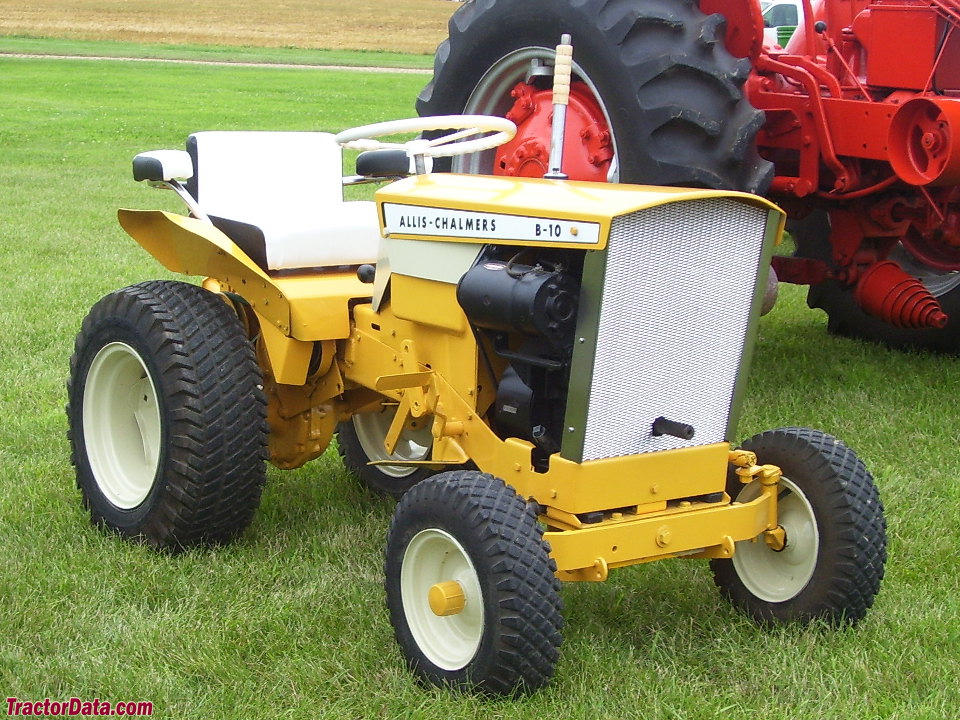

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

Allis Chalmers B-10

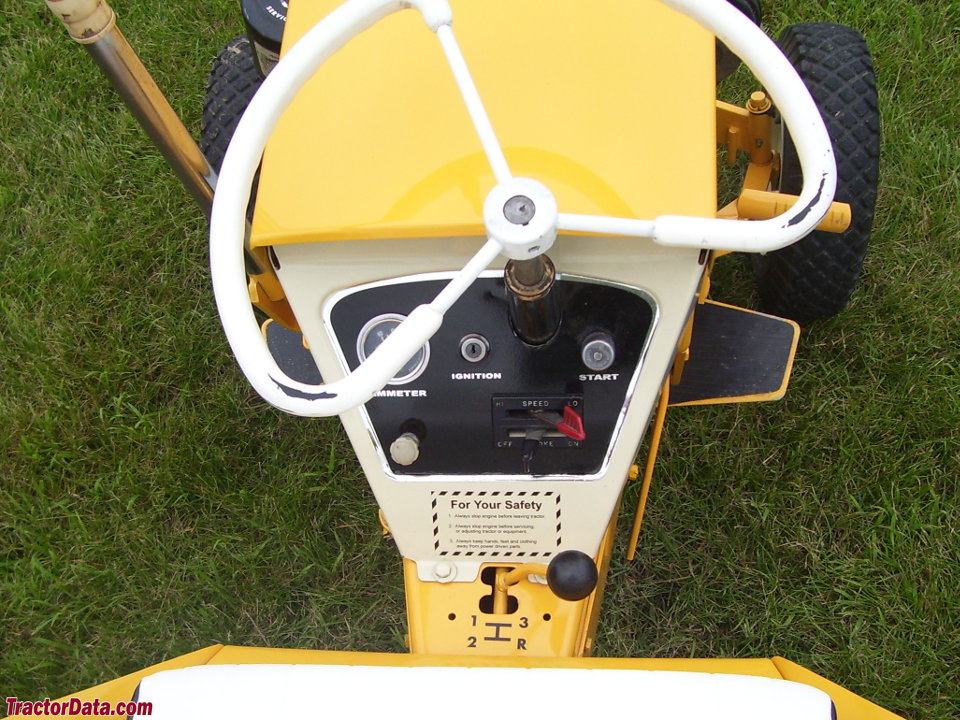

Allis-Chalmers B-10 operator station and controls.
