Allis Chalmers 410

The Allis Chalmers 410 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse. Operating weight: 825 lbs (shuttle) 374 kg.

Overview

	1973 400 SeriesGarden tractor 400 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA
There were no Simplicity models that were equivalent to the Allis-Chalmers 410, but the tractor had model codes 1600258 (3-speed) and 1600299 (shuttle) for identification in the Simplicity catalog.

Variants
410S	shuttle
410-3SP	three-speed

Allis Chalmers 410 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Rear PTO	optional
Rear PTO Type	540
Front PTO	independent
Clutch	electric
Front PTO Type	3600

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	780 to 825 pounds
Front tire	4.80/4.00x8
Rear tire	23-8.50x12
Full dimensions and tires ...

Links
SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com

Electrical
Ground	negative
Charging amps	15
Battery volts	12

References
400 Series Tractors published in 1972, by Allis-Chalmers
Operator's Manual 400 Series Tractor (TP-1504) published in 1973
Yardpower published in 1973, by Allis-Chalmers

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power	10 hp 7.5 kW
Air cleaner	dry element
Rated RPM	3600
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission options
4-speed shuttle
3-speed gear

Transmission — 4 forward and reverse shuttle

Type	shuttle
Gears	4 forward and reverse
Oil capacity	1.5 qts 1.4 L
Four speed transmission with right-hand shuttle lever. Tractor must be stopped to shift gears and shuttle lever in neutral, or the clutch/brake pedal fully depressed.

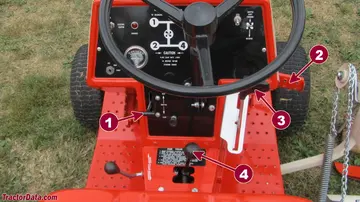

410 Transmission Controls
1	Throttle
2	Clutch/brake
3	Shuttle shift
4	Gear shift

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Gear transmission operated with center-mount gear shift and right-hand clutch/brake pedal. Tractor must be stopped, and clutch used, to shift gears.

Dimensions

Allis Chalmers 410 Tires
Lawn/turf front	4.80/4.00x8
Lawn/turf rear	23-8.50x12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	74 inches 187 cm
Width	34.5 inches 87 cm
Height (steering wheel)	43 inches 109 cm
Height (hood)	39 inches 99 cm
Weight	825 lbs (shuttle) 374 kg
	780 lbs (3-speed) 353 kg
Clearance (front axle)	8 inches 20 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7.5 inches 19 cm
Front tread	29.7 inches 75 cm
Rear tread	26 inches 66 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Allis-Chalmers
	3-blade, lift is manual or electric optional
Cutting width	42 inches 106 cm

Photos

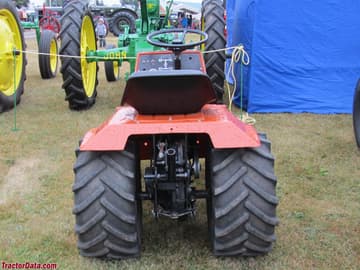

Allis Chalmers 410

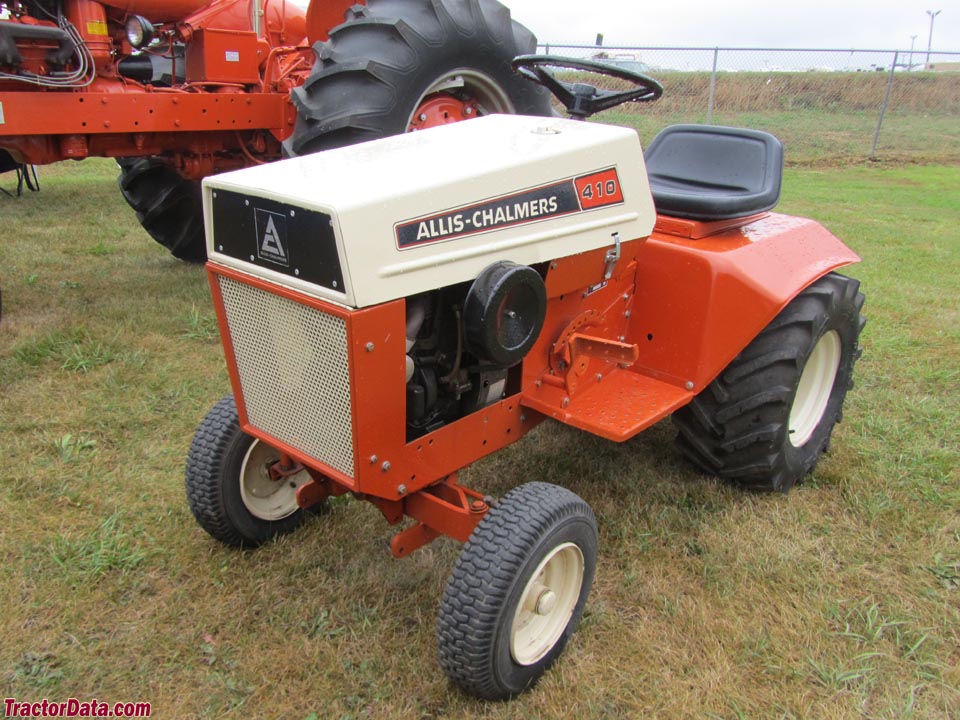

Allis Chalmers 410

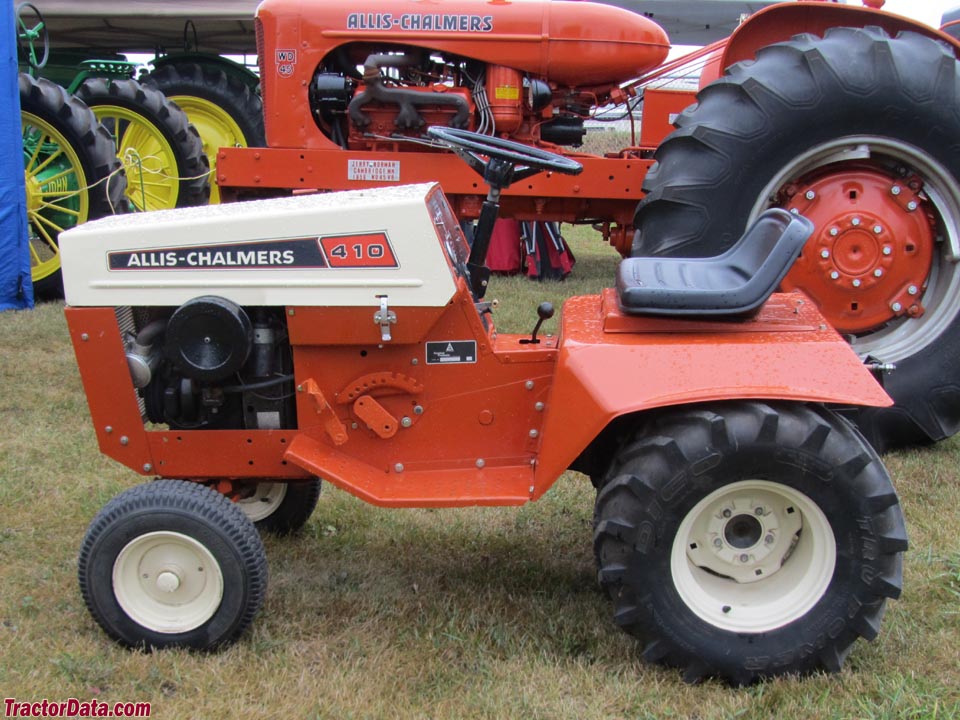

Allis Chalmers 410

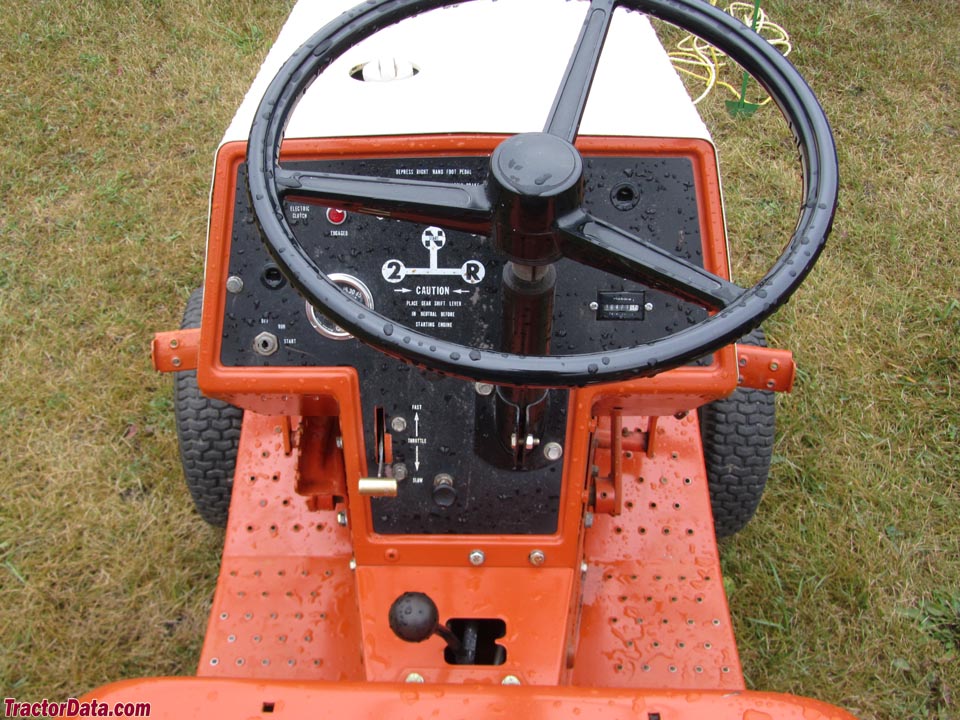

Allis-Chalmers 410 gear operator station and controls.
