Allis Chalmers 710

The Allis Chalmers 710 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 6 forward and 2 reverse. Operating weight: 750 lbs 340 kg.

Overview

	1974 - 1979 700 SeriesGarden tractor 700 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,250 in 1979

Allis Chalmers 710 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Drum brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	750 lbs 340 kg
Front tire	4.80x4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Links
SimpleTractors.com: information, photos and old advertising literature at SimpleTractors.com

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12
Battery AH	45

References
Operator's Manual Models 700 Series (1652386) published in 1974
Operator's Manual Models 700 Series (1664443) published in 1978
1974 Buyer's Guide published by Allis-Chalmers
Allis-Chalmers Lawn and Garden Equipment published in 1975
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers
Lawn and Garden Tractors published in 1979, by Allis-Chalmers

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer	Kohler K241
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	391 cc 23.9 ci
Bore/Stroke	3.25x2.88 inches 83 x 73 mm
Power	10 hp 7.5 kW
Air cleaner	dry
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission options
3-speed gear
6-speed gear

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse
The three-speed version was built from 1974 through 1976.

Transmission — 6 forward and 2 reverse belt-driven gear

Type	belt-driven gear
Gears	6 forward and 2 reverse
The six-speed Allis 710 was built from 1977 through 1979.

Dimensions

Allis Chalmers 710 Tires
Lawn/turf front	4.80x4.00-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	67 inches 170 cm
Width	37.5 inches 95 cm
Height	39.3 inches 99 cm
Weight	750 lbs 340 kg
Ground clearance	8 inches 20 cm
Front tread	30 inches 76 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

42" Mower deck
Type	mid-mount Allis Chalmers
	3-blade, lift is manual or electric OptOptional
Cutting width	42 inches 106 cm
Cut height	1.625 to 3.125 inch 4 to 7 cm

Photos

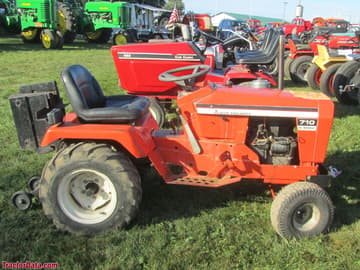

Allis Chalmers 710

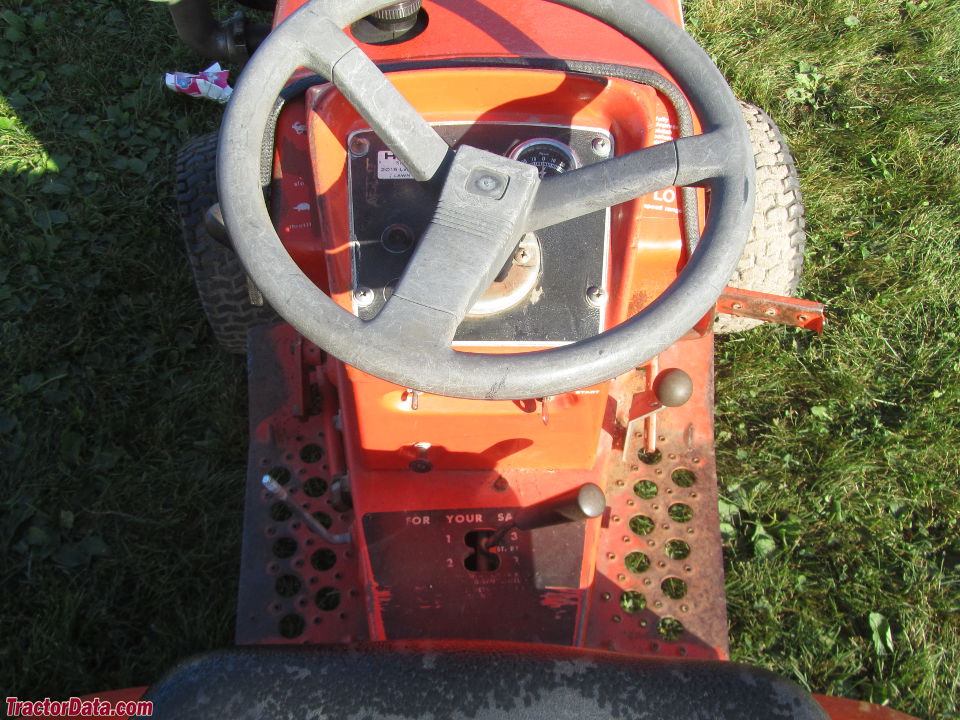

Allis Chalmers 710 operator station and controls.

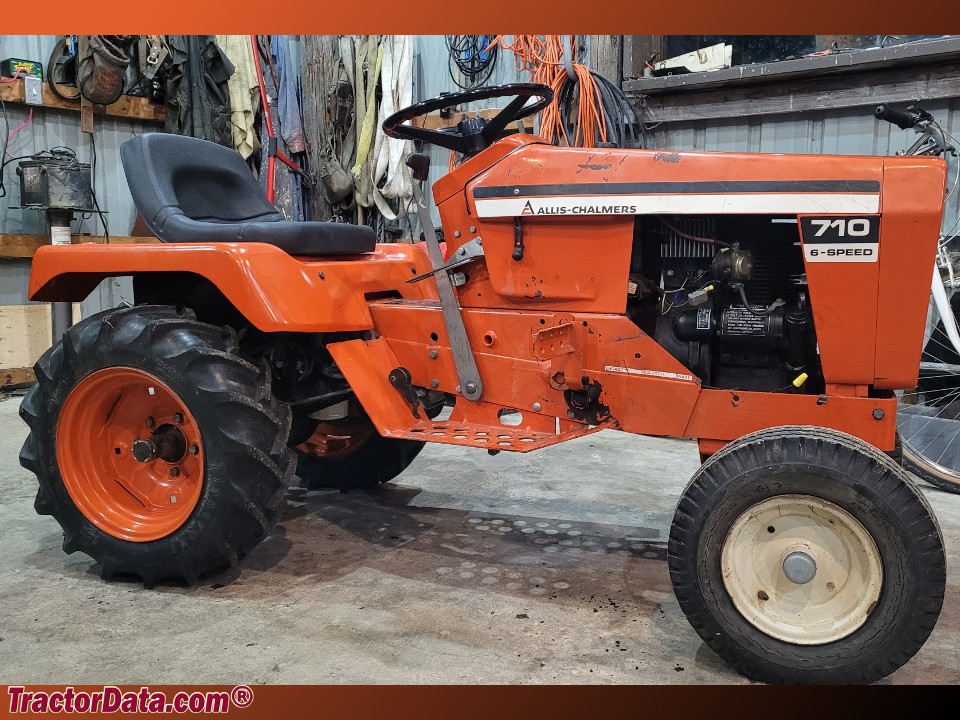

Allis-Chalmers 710

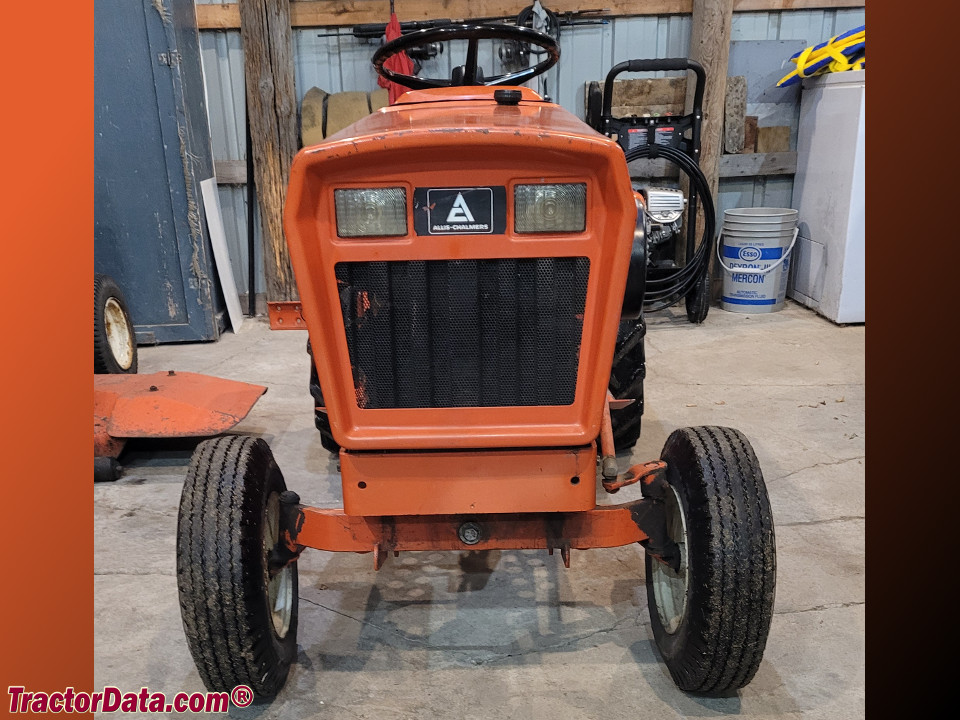

Allis-Chalmers 710

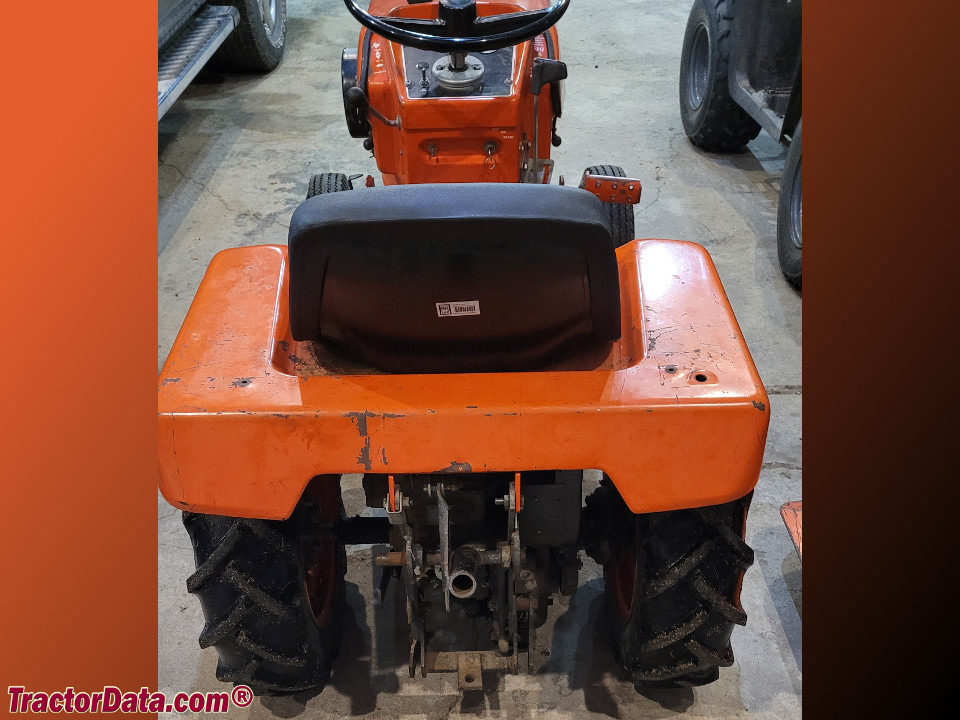

Allis-Chalmers 710

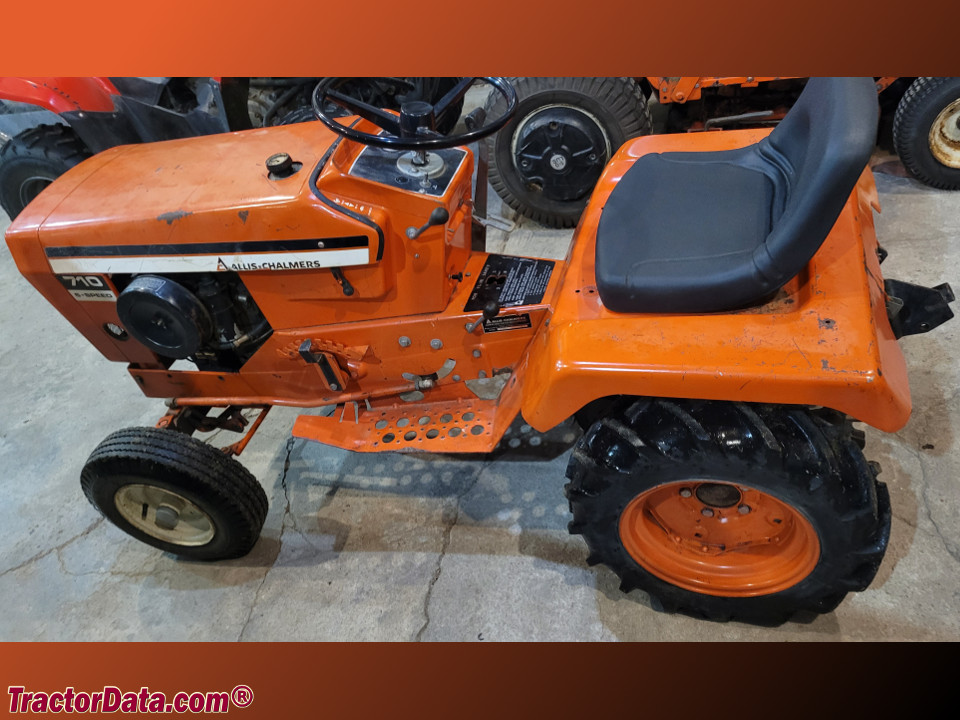

Allis-Chalmers 710

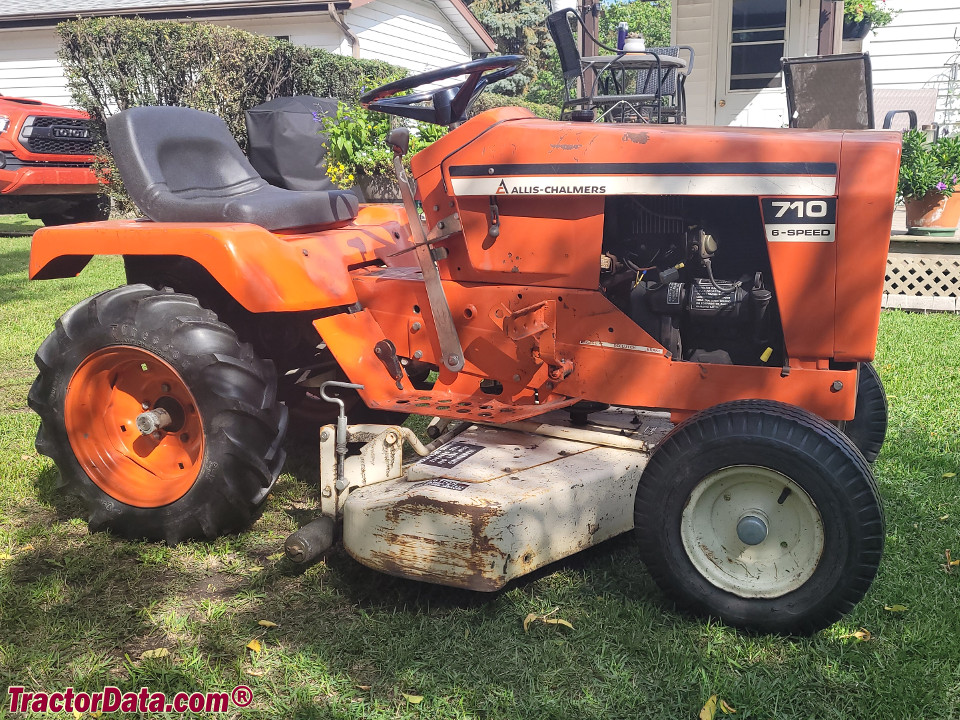

Allis-Chalmers 710 with mower deck.
