Allis Chalmers 808GT

The Allis Chalmers 808GT is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 76 lbs 34 kg.

Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
2.2 gal 8.3 L
Transmission
3 forward and 1 reverse
Operating Weight
76 lbs 34 kg

Overview

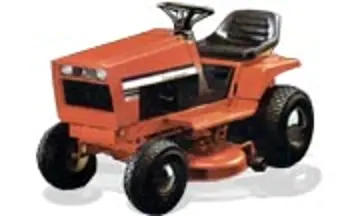

Allis Chalmers 808GT tractor photo
1976 - 1982 800GT SeriesGarden tractor 800GT Series Garden tractor
Production
Manufacturer
Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price was $1,353 in 1979
Allis Chalmers 808GT Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank
2.2 gal 8.3 L
Engine details ...
Allis Chalmers 808GT Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical idler pulley
Dimensions & Tires
Wheelbase
45.5 inches 115 cm
Weight
420 lbs 190 kg
Front tire
15-6.00x6
Rear tire
18-9.50x8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References

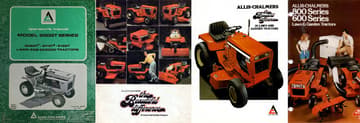

808GT references literature
Operator's Manual Model 800GT Series (1666091) published in 1979
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers
Lawn and Garden Tractors published in 1979, by Allis-Chalmers
Lawn & Garden Tractors published in 1980, by Allis-Chalmers

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
318 cc 19.44 ci
Bore/Stroke
3.00x2.75 inches 76 x 70 mm
Power (gross)
8 hp 6.0 kW
Air cleaner
oiled foam
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.13 qts 1.1 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse
808GT belt-driven gear speeds

Dimensions

Allis Chalmers 808GT Tires
Lawn/turf front
15-6.00x6
Lawn/turf rear
18-9.50x8
Dimensions
Wheelbase
45.5 inches 115 cm
Length
63.5 inches 161 cm
Width
35 inches 88 cm
Height (steering wheel)
39 inches 99 cm
Weight
420 lbs*Weight of tractor only. 190 kg

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
36" Mower deck
Type
mid-mount Allis-Chalmers
2-blade
Cutting width
36 inches 91 cm
Weight
76 lbs 34 kg
Overall width
42 inches 106 cm
Cut height
1.5 to 3.5 inch 3 to 8 cm

Photos

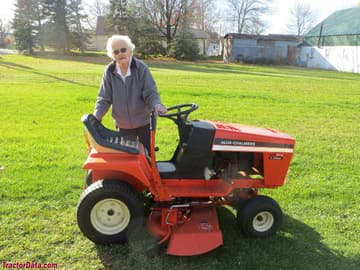

Allis Chalmers 808GT

Allis Chalmers 808GT

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 808GT.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Allis Chalmers Lawn Tractors Allis Chalmers 808GT Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 808GT.

Converted Equivalents:

Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
