Allis Chalmers 830 Sprint
The Allis Chalmers 830 Sprint is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 316 lbs 143 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
5 forward and 1 reverse
Operating Weight
316 lbs
143 kg
Overview
 | 1982 - 1985
Sprint SeriesRiding lawn mower
Sprint Series
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Original price was $1,659 in 1984 | |
Allis Chalmers 830 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Allis Chalmers 830 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 316 lbs
143 kg |
Front tire | 4.10/3.50-4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |

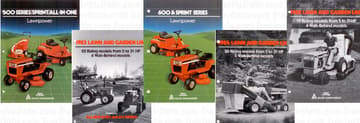

References | |
|---|---|
 | |
600 Series/Sprint/All-in-One published in 1982, by Allis-Chalmers | |
1983 Lawn and Garden Line published by Allis-Chalmers | |
600 & Sprint Series published in 1984, by Allis-Chalmers | |
1984 Lawn and Garden Line published by Allis-Chalmers | |
1985 Lawn and Garden Line published by Allis-Chalmers |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 190707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Air cleaner | oiled foam |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.1 qts
1.0 L |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Clutch | idler pulley |
 | |
Dimensions
Allis Chalmers 830 Tires | |
|---|---|
Lawn/turf front | 4.10/3.50-4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 60.75 inches
154 cm |
Width | 31 inches
78 cm |
Height (steering wheel) | 38 inches
96 cm |
Weight | 316 lbs
143 kg |
Attachments
30" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Overall width | 39 inches
99 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Cut positions | 6 |
Photos
Allis Chalmers 830 Sprint tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 830 Sprint.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers 830 Sprint Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 830 Sprint.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
