Allis Chalmers B-208
The Allis Chalmers B-208 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 317 cc 19.4 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
0.88 gal
3.3 L
Transmission
3 forward and 1 reverse
Overview
 | 1970 - 1972
B Series |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Built in Lexington, South Carolina, USA | |
Allis Chalmers B-208 Engine | |
|---|---|
8HP Briggs & Stratton 317cc 1-cyl gasoline | |
Fuel tank | 0.88 gal
3.3 L |
Engine details ...  | |
Allis Chalmers B-208 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | live |
Front PTO | live |
Dimensions & Tires | |
|---|---|
Wheelbase | 41 inches
104 cm |
Full dimensions and tires ...  | |
Links | |
|---|---|
Allis-Chalmers B-208: information, photos and old advertising literature at SimpleTractors.com |
References | |
|---|---|
 | |
Service Manual B Series Tractors (9003453) published in 1976 |
Engine
Engine Detail — 317 cc / 19.4 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 317 cc
19.4 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Air cleaner | oiled foam |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.13 qts
1.1 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Allis Chalmers B-208 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 41 inches
104 cm |
Length | 58 inches
147 cm |
Width | 32.5 inches
82 cm |
Height | 35.5 inches
90 cm |
Ground clearance | 5 inches
12 cm |
Photos

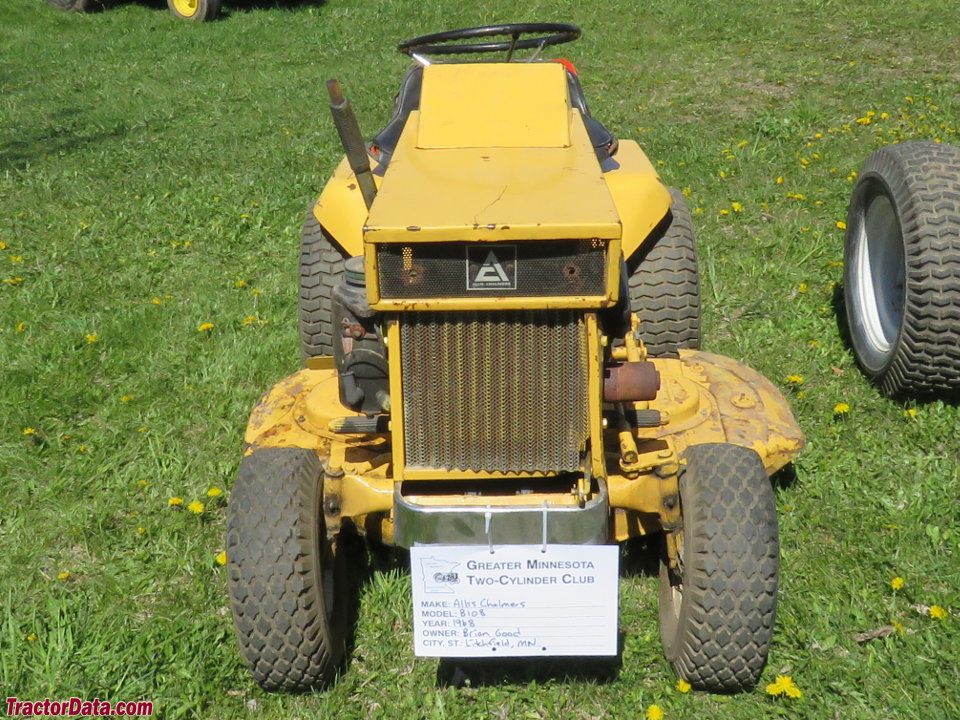

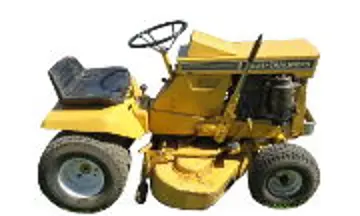

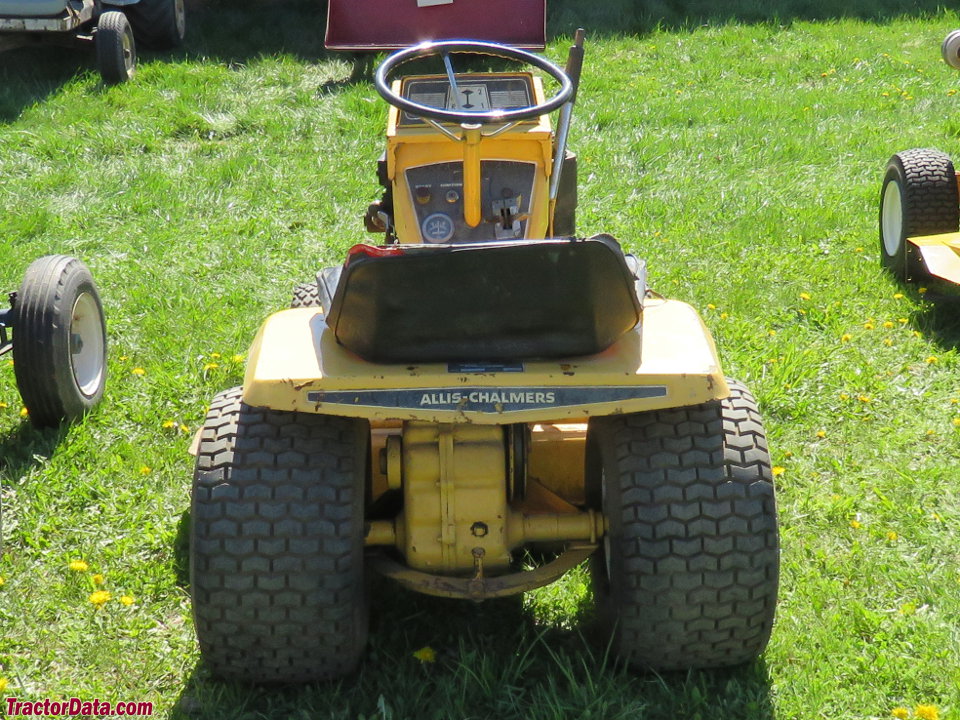

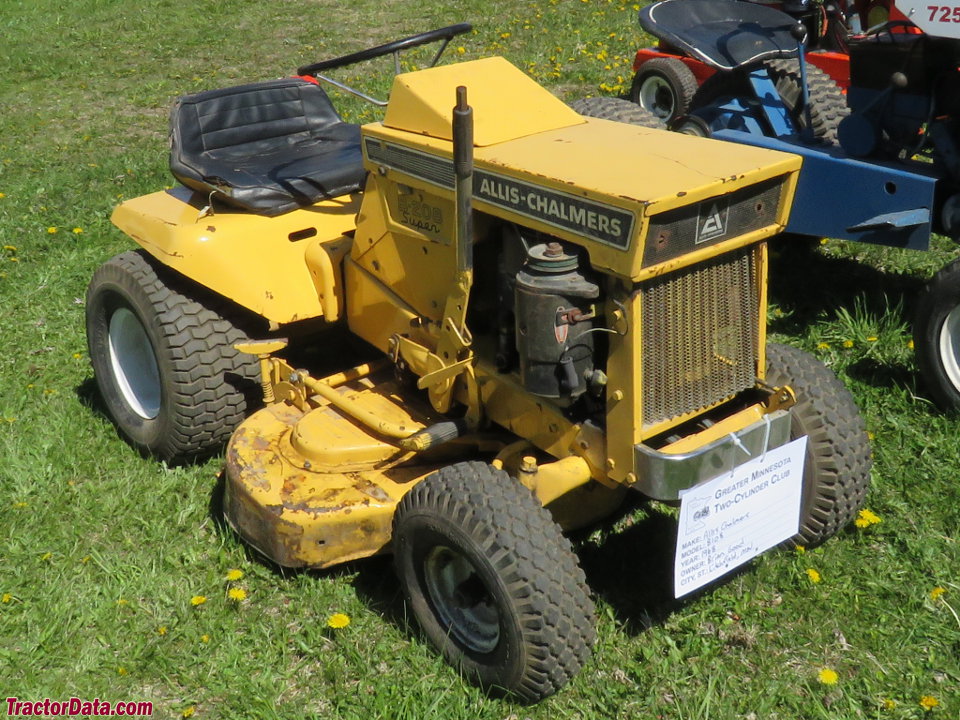

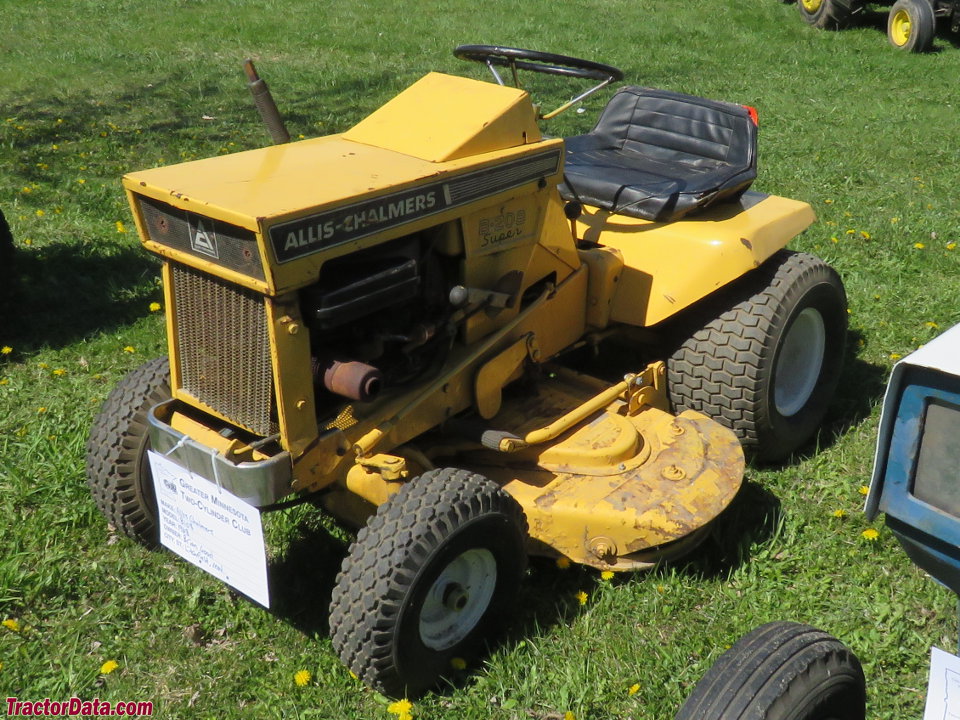

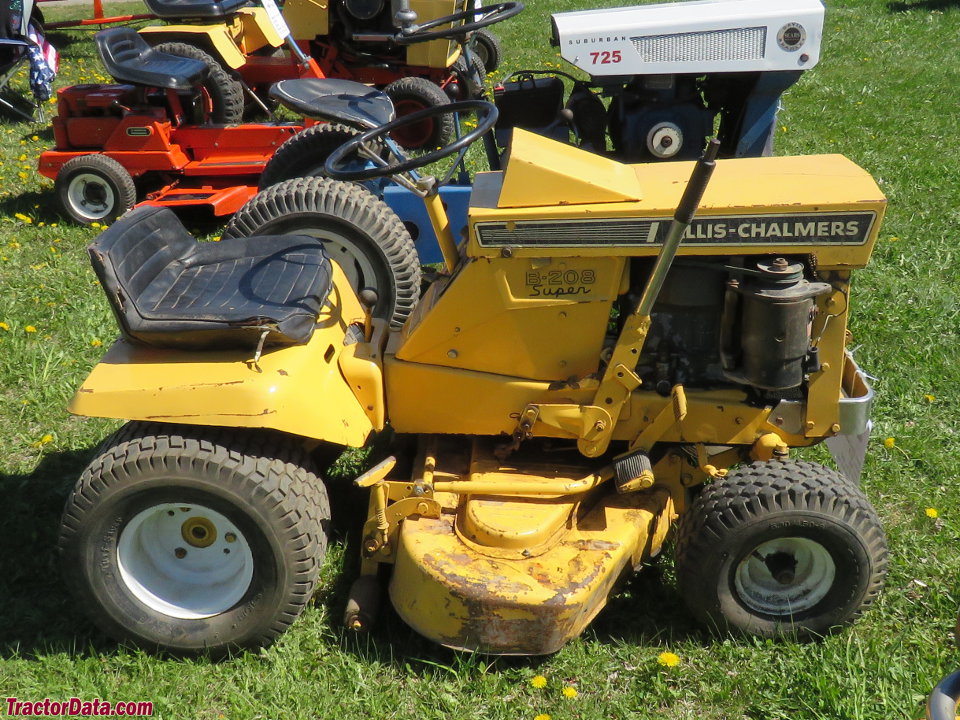

Allis Chalmers B-208
Allis Chalmers B-208
Allis Chalmers B-208
Allis Chalmers B-208
Allis Chalmers B-208
Allis Chalmers B-208

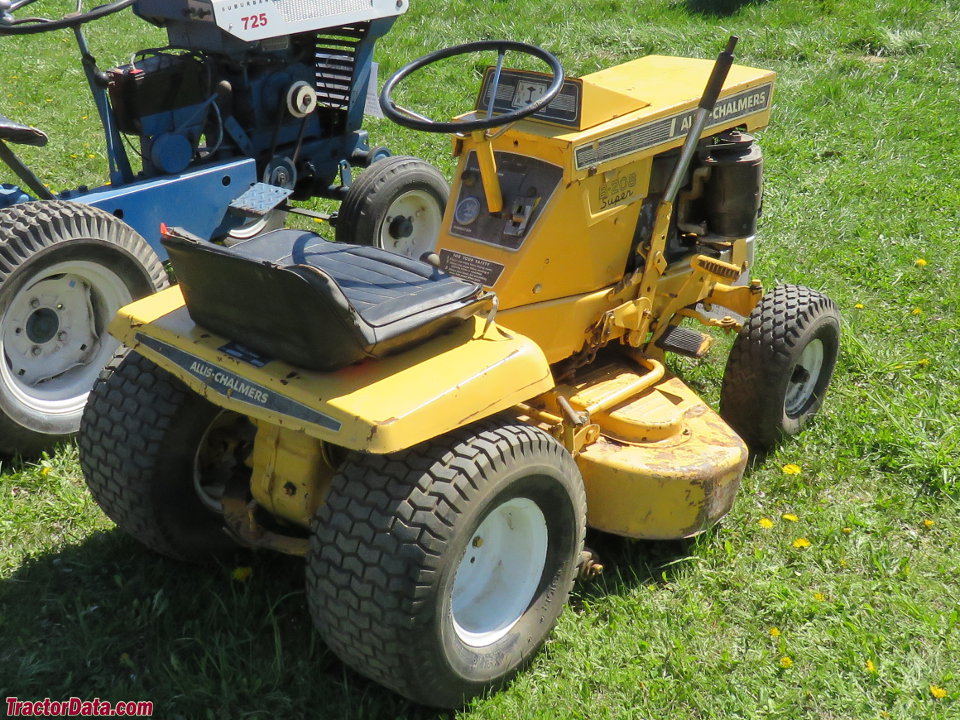

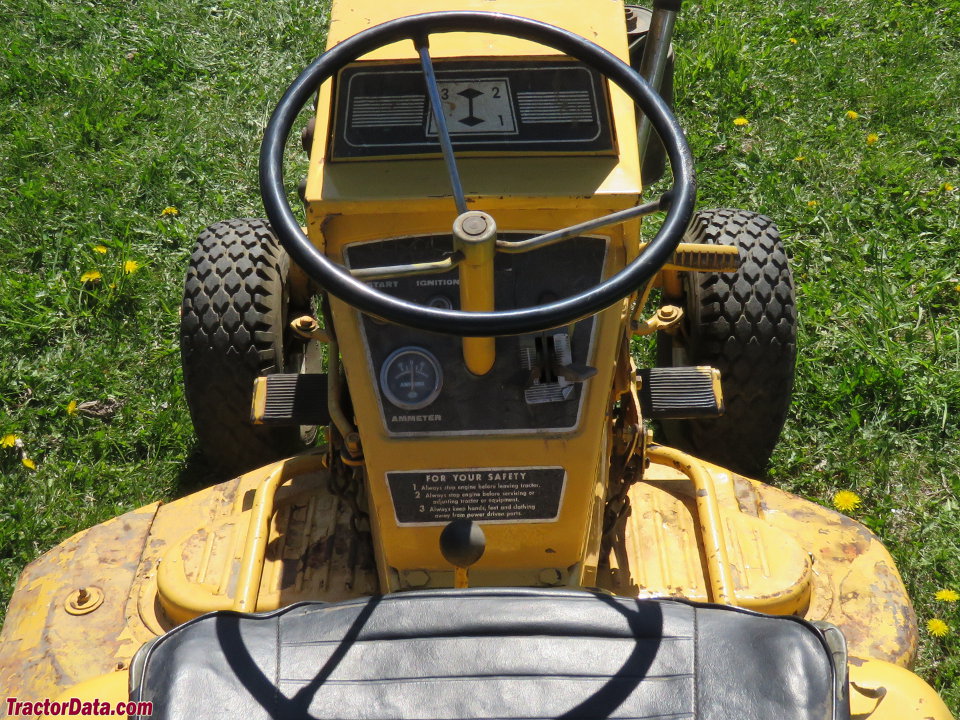

Allis-Chalmers B-208 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers B-208.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers B-208 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers B-208.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
