Allis Chalmers Homesteader 8

The Allis Chalmers Homesteader 8 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 475 lbs 215 kg.

Overview

	1971 - 1974 Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA

Allis Chalmers Homesteader 8 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Engine details ...

Allis Chalmers Homesteader 8 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual gear-and-sector
Open operator station.

Dimensions & Tires
Wheelbase	41.25 inches 104 cm
Weight	475 lbs 215 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Battery volts	12
Battery AH	45

References
Yardpower published in 1973, by Allis-Chalmers

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190701
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Rated RPM	3600
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse

Dimensions

Allis Chalmers Homesteader 8 Tires

Dimensions
Wheelbase	41.25 inches 104 cm
Length	58 inches 147 cm
Width	31.25 inches 79 cm
Height (steering wheel)	34.5 inches 87 cm
Shipping weight	475 lbs 215 kg
Front tread	26 inches 66 cm
Rear tread	22.4 inches 56 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade
Listed attachedments for the Allis Homesteader 8 included a 30-inch rear tiller and 40-inch grader blade.

36" Mower deck
Type	mid-mount Allis-Chalmers
	3-blade
Cutting width	36 inches 91 cm

Photos

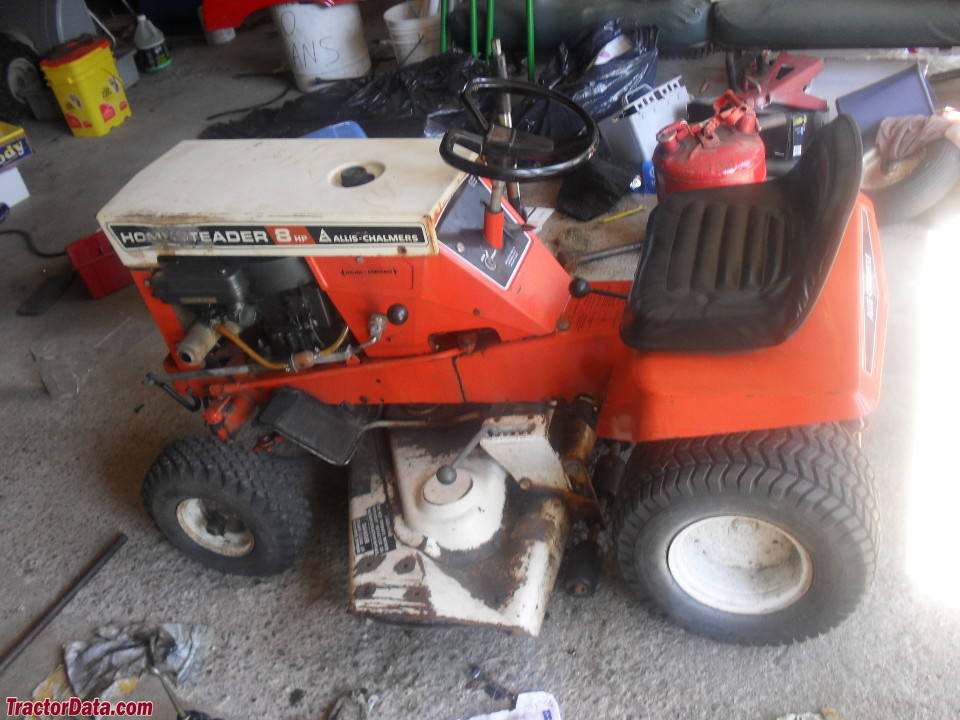

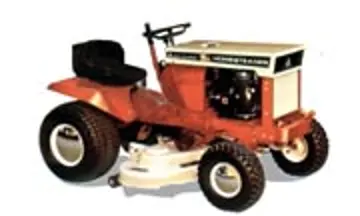

Allis Chalmers Homesteader 8
