Allis Chalmers Scamp 8
The Allis Chalmers Scamp 8 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 2 forward and reverse. Operating weight: 346 lbs 156 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
0.75 gal
2.8 L
Transmission
2 forward and reverse
Operating Weight
346 lbs
156 kg
Overview
 | 1973 - 1974
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Allis Chalmers Scamp 8 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Allis Chalmers Scamp 8 Transmission | |
|---|---|
2-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Dimensions & Tires | |
|---|---|
Wheelbase | 44.375 inches
112 cm |
Weight | 346 lbs
156 kg |
Front tire | 4.10x3.50-4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Yardpower published in 1973, by Allis-Chalmers |
Engine
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton 190707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Transmission
Transmission — 2 forward and reverse
Gears | 2 forward and reverse |
 | |
Dimensions
Allis Chalmers Scamp 8 Tires | |
|---|---|
Lawn/turf front | 4.10x3.50-4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44.375 inches
112 cm |
Length | 57.75 inches
146 cm |
Height (steering wheel) | 36.25 inches
92 cm |
Weight | 346 lbs
156 kg |
Attachments
30" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
1-blade | |
Cutting width | 30 inches
76 cm |
Overall width | 40.25 inches
102 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Photos

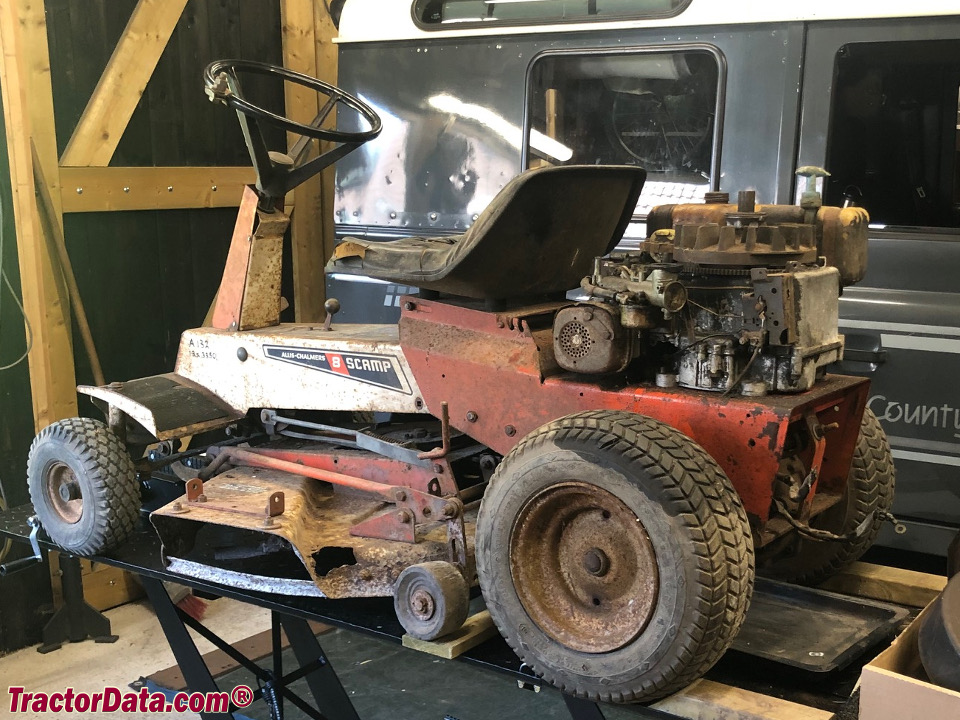

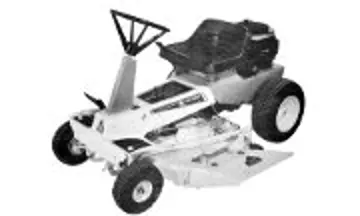

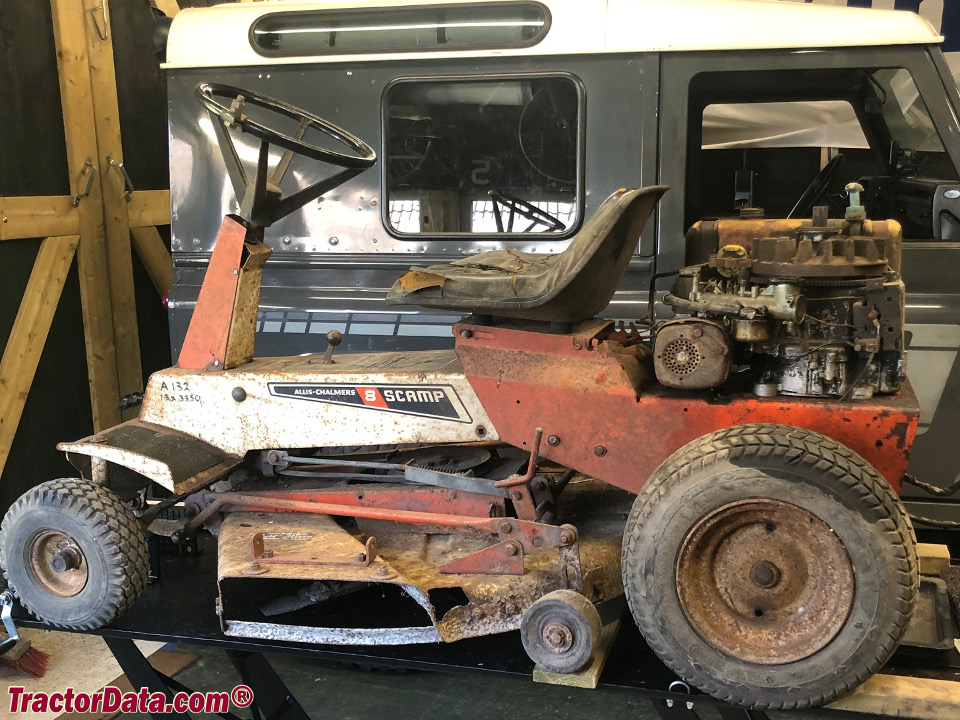

Allis Chalmers Scamp 8
Allis Chalmers Scamp 8
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers Scamp 8.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers Scamp 8 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers Scamp 8.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
