Antonio Carraro TGF 9400S

The Antonio Carraro TGF 9400S is a tractor produced by Antonio Carraro. It is equipped with a 181.2 ci 3.0 L engine. The listed engine power is Diesel (gross): 87 hp / 64.9 kW. Transmission: 16 forward and reverse. Operating weight: 5027 lbs (ROPS) 2280 kg.

Engine Power

Diesel (gross): 87 hp / 64.9 kW

Fuel & Capacities

15.9 gal 60.2 L

Transmission

16 forward and reverse

Operating Weight

5027 lbs (ROPS) 2280 kg

Overview

	Utility tractor	Utility tractor

Production
Manufacturer	Antonio Carraro
Utility tractor
Built in Italy

Antonio Carraro TGF 9400S Engine
VM Motori 3.0L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Antonio Carraro TGF 9400S Transmission
16-speed
Transmission details ...

Antonio Carraro TGF 9400S Power
Engine (gross)	87 hp 64.9 kW

Mechanical
Four-wheel drive
Steering	hydraulic power
Hydraulic wet disc brakes
Two-post foldable ROPS. Optional StarLight cab with air-conditioning. Optional low-profile Protector S cab.

Tractor hitch
Rear Type	II/I
Rear lift	5071 lbs 2300 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E (1.375)

Dimensions & Tires
Wheelbase	57.6 inches (20-in wheels) 146 cm
	60.2 inches (24-in wheels) 152 cm
Weight	5027 to 5269 pounds
Front tire	8.25-16
Rear tire	11.2R20
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 181.2 ci / 3.0 L Diesel

Manufacturer	VM Motori D754
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	181.2 ci 3.0 L
Bore/Stroke	3.70x4.213 inches 94 x 107 mm
Emissions	Stage 3A
Rated Power (gross)	87 hp 64.9 kW
Fuel system	direct injection
Rated RPM	2600
Torque	280.3 lb-ft 380.1 Nm
Torque RPM	1000
Firing order	1-3-4-2
Starter	electric
Starter volts	12

Transmission

Transmission — 16 forward and reverse

Gears

16 forward and reverse

Dimensions

Antonio Carraro TGF 9400S Tires
Standard tires (ag)	Front: 8.25-16. Rear: 11.2R20
	Front: 250/80-16. Rear: 320/70R20
	Front: 300/80-15.3. Rear:
	Front: 360/70R20. Rear:
	Front: 280/70-18. Rear: 360/70R20
	Front: 320/70R20. Rear: 360/70R24

Dimensions
Wheelbase	57.6 inches (20-in wheels) 146 cm
	60.2 inches (24-in wheels) 152 cm
Length	135.6 inches (20-in wheels) 344 cm
	138.8 inches (24-in wheels) 352 cm
Width	52.4 inches (min) 133 cm
Weight	5027 lbs (ROPS) 2280 kg
	5269 lbs (Cab) 2390 kg

Antonio Carraro TGF 9400S Height
ROPS	90.2 inches 229 cm
Cab	86.4 inches (StarLight) 219 cm
	70.9 inches (Protector S) 180 cm

Photos

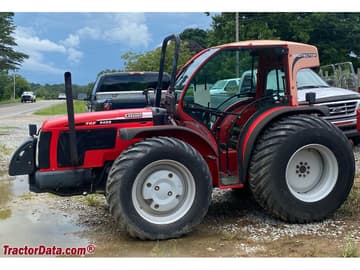

Antonio Carraro TGF 9400S

Recommended Implements & Sizing Guide

Engineering recommendations for Antonio Carraro TGF 9400S based on its 87 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Antonio Carraro TGF 9400S.

Estimated Continuous Field Runtime: 3.5 hrs

Approximately 3.5 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).

Estimated 75% Load Fuel Burn~4.5 gal/hr (17.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
