Antonio Carraro TRH 9800
The Antonio Carraro TRH 9800 is a tractor produced by Antonio Carraro. It is equipped with a 202.5 ci 3.3 L engine. The listed engine power is Diesel (gross): 87 hp / 64.9 kW. Transmission: infinite forward and reverse (4-range). Operating weight: 5104 to 5456 pounds.
Overview
![]() | Ergit 100 SeriesUtility tractor |
|---|---|
Ergit 100 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Antonio Carraro |
Utility tractor | |
Built in Italy | |
Antonio Carraro TRH 9800 Engine | |
|---|---|
Yanmar 3.3L 4-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ... | |
Antonio Carraro TRH 9800 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Antonio Carraro TRH 9800 Power | |
|---|---|
Engine (gross) | 87 hp
64.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydraulic power |
Hydraulic wet disc brakes | |
Two-post foldable ROPS. Optional six-post ROPS canopy frame with windscreen. Optional StarLight cab with air-conditioning. | |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 5291 lbs
2399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 59.2 inches
150 cm |
Weight | 5104 to 5456 pounds |
Front tire | 250/80R18 |
Rear tire | 250/80R18 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 202.5 ci / 3.3 L Diesel
Manufacturer | Yanmar |
Configuration | turbocharged diesel, 4-cylinder 16-valve, liquid-cooled |
Displacement | 202.5 ci
3.3 L |
Bore/Stroke | 3.86x4.33 inches
98 x 110 mm |
Emissions | Stage 3A |
Rated Power (gross) | 87 hp
64.9 kW |
Fuel system | direct injection |
Rated RPM | 2500 |
Torque | 211.5 lb-ft
286.8 Nm |
Torque RPM | 1850 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse (4-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (4-range) |
Dimensions
Antonio Carraro TRH 9800 Tires | |
|---|---|
Ag front | 250/80R18 |
280/70R18 | |
9.5R20 | |
300/70R20 | |
320/70R20 | |
300/80-15.3 | |
320/65R18 | |
280/85R20 | |
Ag rear | 250/80R18 |
280/70R18 | |
9.5R20 | |
300/70R20 | |
320/70R20 | |
300/80-15.3 | |
320/65R18 | |
280/85R20 | |
Lawn/turf front | 31x15.50-15 |
Lawn/turf rear | 31x15.50-15 |
Dimensions | |
|---|---|
Wheelbase | 59.2 inches
150 cm |
Length | 138 inches
350 cm |
Width | 54.3 inches (min)
137 cm |
Antonio Carraro TRH 9800 Weight | |
|---|---|
5104 lbs (ROPS)
2315 kg | |
5258 lbs (frame)
2385 kg | |
5456 lbs (cab)
2474 kg | |
Antonio Carraro TRH 9800 Height | |
|---|---|
ROPS | 91.3 inches
231 cm |
Cab | 81.3 inches
206 cm |
84 inches (StarLight)
213 cm | |

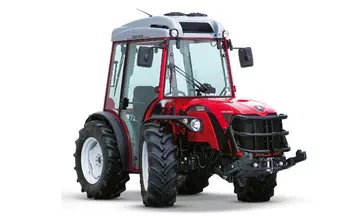

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Antonio Carraro TRH 9800 based on its 87 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Antonio Carraro TRH 9800.
Estimated Continuous Field Runtime: 3.5 hrs
Approximately 3.5 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Antonio Carraro TRH 9800 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Antonio Carraro TRH 9800.
Converted Equivalents:
Direct Competitor Comparison
Compare Antonio Carraro TRH 9800 against same-era industry alternatives in the same horsepower class.
Antonio Carraro TRH 9800
