Bad Boy 2024
The Bad Boy 2024 is a tractor produced by Bad Boy. It is equipped with a 70.7 ci 1.2 L engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 827 lbs 375 kg.
Engine Power
Diesel (gross): 24 hp / 17.9 kW
Fuel & Capacities
6.1 gal
23.1 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
827 lbs
375 kg
Overview
 | 2021 - 2023
20 SeriesSub-Compact Utility tractorTYM built
20 Series
Sub-Compact Utility tractor
TYM built |
|---|
Production | |
|---|---|
Distributor | Bad Boy |
Manufacturer | TYM |
Sub-Compact Utility tractor | |
Bad Boy 2024 Engine | |
|---|---|
TYM 1.2L 3-cyl diesel | |
Fuel tank | 6.1 gal
23.1 L |
Engine details ...  | |
Bad Boy 2024 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Bad Boy 2024 Power | |
|---|---|
Engine (gross) | 24 hp
17.9 kW |
PTO (claimed) | 18 hp
13.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 4.3 gpm
16.3 lpm |
Total flow | 7.4 gpm
28.0 lpm |
Steering flow | 3.1 gpm
11.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 1433 lbs
650 kg |
Rear lift (at 24"/610mm) | 650 lbs
294 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2600 |
960@2600 | |
Mid PTO | independent OptOptional |
Engine RPM | 2500@2600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 59.1 inches
150 cm |
Weight | 1829 lbs
829 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Model BBH200 Backhoe published in 2022 | |
Operator's Manual BBL200 Front End Loader published in 2022 | |
Operator's Manual Model 2024H/3026H published in 2021 | |
Tractor Series published in 2021, by Bad Boy | |
Tractor Series published in 2023, by Bad Boy |
Engine
Engine Detail — 70.7 ci / 1.2 L Diesel
Manufacturer | TYM A1100N2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled inline |
Displacement | 70.7 ci
1.2 L |
Bore/Stroke | 3.07x3.23 inches
78 x 82 mm |
Power (gross) | 24 hp
17.9 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Compression | 21.5:1 |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Bad Boy 2024 Engine | |
|---|---|
 |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Bad Boy 2024 Tires | |
|---|---|
Industrial front | 23x8.5-12 |
Industrial rear | 12-16.5 |
Dimensions | |
|---|---|
Wheelbase | 59.1 inches
150 cm |
Length | 107 inches
271 cm |
Width | 44.3 inches
112 cm |
Height (ROPS) | 87.2 inches
221 cm |
Weight | 1829 lbs
829 kg |
Ground clearance | 12.7 inches
32 cm |
Front tread | 33.6 inches
85 cm |
Rear tread | 34.6 inches
87 cm |
Attachments
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
Bad Boy BBH200 Backhoe | |
|---|---|
Backhoe type | Bad Boy BBH200 Backhoe |
Weight | 827 lbs
375 kg |
Transport height | 70.5 inches
179 cm |
Bucket width | 12 inches
30 cm |
2-Foot flat digging depth | 76 inches
193 cm |
Reach from pivot | 104.3 inches
264 cm |
Loading height | 63.8 inches
162 cm |
Bucket Rotation | 180° |
Swing Arc | 150° |
Bucket force | 2050 lbs
929 kg |
Photos

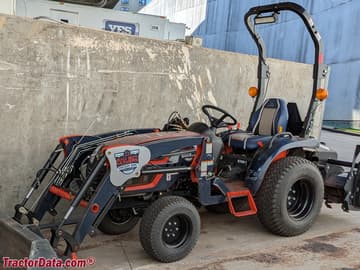

Bad Boy 2024H compact tractor with Pinstripe Bowl decal wrap.
Recommended Implements & Sizing Guide
Engineering recommendations for Bad Boy 2024 based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bad Boy 2024.
Estimated Continuous Field Runtime: 4.9 hrs
Approximately 4.9 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23.1 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bad Boy 2024 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bad Boy 2024.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
Direct Competitor Comparison
Compare Bad Boy 2024 against same-era industry alternatives in the same horsepower class.
Current Model
Bad Boy
Bad Boy 2024
Engine Power:Diesel (gross): 24 hp / 17.9 kW
★ Baseline Reference
