Bad Boy 5045

The Bad Boy 5045 is a tractor produced by Bad Boy. It is equipped with a 139.5 ci 2.3 L engine. The rated power output is 45 hp 33.6 kW. Transmission: infinite forward and reverse (4-range). Operating weight: 3831 to 4349 pounds.

Overview

	2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built

2024 -
50 Series
Compact Utility tractor
TYM built

Production
Distributor	Bad Boy
Manufacturer	TYM
Compact Utility tractor

Variants
5045S	ROPS shuttle
5045H	ROPS hydrostatic
5045SC	Cab shuttle
5045HC	Cab hydrostatic

Bad Boy 5045 Engine
TYM 2.3L 4-cyl diesel
Engine details ...

Bad Boy 5045 Power
Engine (gross)	45 hp 33.6 kW
PTO (claimed)	38 hp 28.3 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.

Hydraulics
Type	open center
Shuttle Pump flow	11.4 gpm 43.1 lpm
Hydro Pump flow	10.7 gpm 40.5 lpm
Shuttle Total flow	16.4 gpm 62.1 lpm
Hydro Total flow	15.7 gpm 59.4 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	3306 lbs 1499 kg
Rear lift (at 24"/610mm)	2425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	71 inches 180 cm
Weight	3831 to 4349 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

	2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built

2024 -
50 Series
Compact Utility tractor
TYM built

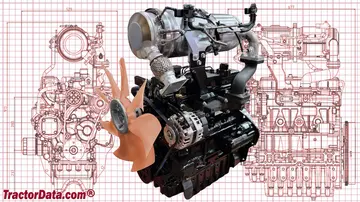

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer	TYM A2300N2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	139.5 ci 2.3 L
Bore/Stroke	3.46x3.70 inches 88 x 94 mm
Power (gross)	45 hp 33.6 kW
Air cleaner	dry
Rated RPM	2600
Starter	electric
Starter volts	12

Bad Boy 5045 Engine

Transmission

	2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built

2024 -
50 Series
Compact Utility tractor
TYM built

Transmission options
16-speed shuttle
hydrostatic

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse

Transmission — infinite forward and reverse (4-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (4-range)

Dimensions

	2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built

2024 -
50 Series
Compact Utility tractor
TYM built

Bad Boy 5045 Tires

Dimensions
Wheelbase	71 inches 180 cm
Length	127 inches 322 cm
Width	65 inches 165 cm
Height (ROPS)	98.4 inches 249 cm
Height (cab)	97 inches 246 cm
ROPS Weight	3831 lbs 1737 kg
Cab Weight	4349 lbs 1972 kg
Ground clearance	15.5 inches 39 cm

Attachments

	2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built

2024 -
50 Series
Compact Utility tractor
TYM built

Photos

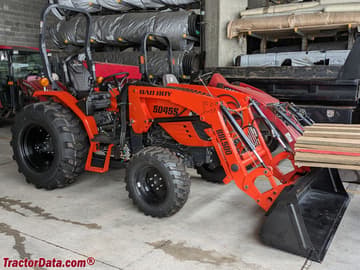

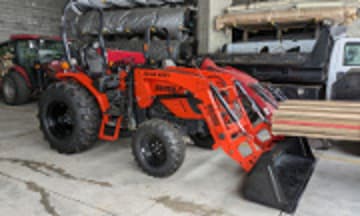

Bad Boy 5045S compact tractor with BBL500 front-end loader.
