Bad Boy 5055

The Bad Boy 5055 is a tractor produced by Bad Boy. It is equipped with a 139.5 ci 2.3 L engine. The rated power output is 55 hp 41.0 kW. Transmission: infinite forward and reverse (4-range). Operating weight: 3836 to 4349 pounds.

Engine Power
55 hp 41.0 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse (4-range)
Operating Weight
3836 to 4349 pounds

Bad Boy 5055 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Bad Boy 5055 tractor photo
2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built
2024 -
50 Series
Compact Utility tractor
TYM built
Production
Distributor
Bad Boy
Manufacturer
TYM
Compact Utility tractor
Variants
5055S
ROPS shuttle
5055H
ROPS hydrostatic
5055SC
Cab shuttle
5055HC
Cab hydrostatic
Bad Boy 5055 Engine
TYM 2.3L 4-cyl diesel
Engine details ...
Bad Boy 5055 Power
Engine (gross)
55 hp 41.0 kW
PTO (claimed)
44 hp 32.8 kW
Mechanical
Four-wheel drive
Differential lock
mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS. Cab available with air-conditioning.
Hydraulics
Type
open center
Shuttle Pump flow
11.4 gpm 43.1 lpm
Hydro Pump flow
10.7 gpm 40.5 lpm
Shuttle Total flow
16.4 gpm 62.1 lpm
Hydro Total flow
15.7 gpm 59.4 lpm
Steering flow
5 gpm 18.9 lpm
Tractor hitch
Rear Type
I
Rear lift (at ends)
3306 lbs 1499 kg
Rear lift (at 24"/610mm)
2425 lbs 1099 kg
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
71 inches 180 cm
Weight
3836 to 4349 pounds
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12

Engine

Bad Boy 5055 tractor photo
2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built
2024 -
50 Series
Compact Utility tractor
TYM built

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer
TYM A2300N2
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled inline
Displacement
139.5 ci 2.3 L
Bore/Stroke
3.46x3.70 inches 88 x 94 mm
Power (gross)
55 hp 41.0 kW
Air cleaner
dry
Rated RPM
2600
Starter
electric
Starter volts
12

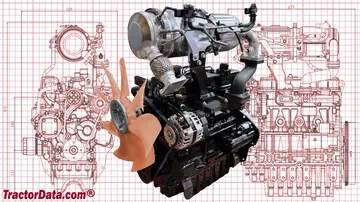

Bad Boy 5055 Engine
Bad Boy 5055 engine image

Transmission

Bad Boy 5055 tractor photo
2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built
2024 -
50 Series
Compact Utility tractor
TYM built
Transmission options
16-speed shuttle
hydrostatic

Transmission — 16 forward and reverse shuttle

Type
shuttle
Gears
16 forward and reverse

Transmission — infinite forward and reverse (4-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (4-range)

Dimensions

Bad Boy 5055 tractor photo
2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built
2024 -
50 Series
Compact Utility tractor
TYM built
Bad Boy 5055 Tires
Dimensions
Wheelbase
71 inches 180 cm
Length
127 inches 322 cm
Width
65 inches 165 cm
Height (ROPS)
98.4 inches 249 cm
Height (cab)
97 inches 246 cm
ROPS Weight
3836 lbs 1740 kg
Cab Weight
4349 lbs 1972 kg
Ground clearance
15.5 inches 39 cm

Attachments

Bad Boy 5055 tractor photo
2024 - 50 SeriesCompact Utility tractorTYM built
2024 -
50 Series
Compact Utility tractor
TYM built
2024 -
50 Series
Compact Utility tractor
TYM built

Photos

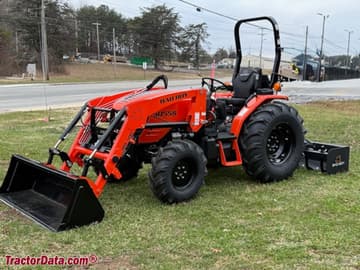

Bad Boy 5055S compact uility tractor.

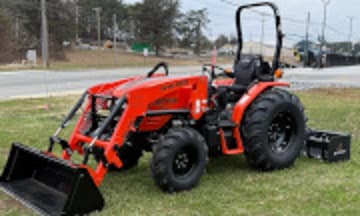

Bad Boy 5055S compact uility tractor.

Bad Boy 5055 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Bad Boy 5055.

Converted Equivalents:

Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS
