Belarus 1500

The Belarus 1500 is a tractor produced by Belarus. It is equipped with a 558 ci 9.1 L engine. The rated power output is 175 hp 130.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 18600 lbs 8436 kg.

Overview

	1977 - 1985 Four-wheel Drive (4WD) tractorXTZ built
1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

Production
Distributor	Belarus
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine
Original price was $37,000 in 1985

Variants
T-150K	European model designation

Belarus 1500 Engine
Belarus 9.1L 6-cyl diesel
Engine details ...

Belarus 1500 Transmission
12-speed partial power shift
Transmission details ...

Belarus 1500 Power
Engine	175 hp 130.5 kW
Drawbar (claimed)	147 hp 109.6 kW
PTO (claimed)	168 hp 125.3 kW
Drawbar (tested)	147.03 hp 109.6 kW
PTO (tested)	168.76 hp 125.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Articulated power steering
Pneumatic shoe brakes
Cab standard.

Capacity
Fuel	83.2 gal 314.9 L
Hydraulic system	9.8 gal 37.1 L

Hydraulics
Capacity	9.8 gal 37.1 L
Pump flow	21.1 gpm 79.9 lpm

Power Take-off (PTO)
Rear PTO Type	540
	1000
Engine RPM	540@2100
	1000@2048

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	18600 lbs 8436 kg
Front tire	21.3-24
Rear tire	21.3-24
Full dimensions and tires ...

References
Traktor-program published in 1979, by Belarus
Trattori published by Belarus

Engine

	1977 - 1985 Four-wheel Drive (4WD) tractorXTZ built
1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

Engine Detail — 558 ci / 9.1 L Diesel

Manufacturer	Belarus CMD-62
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled V-6
Displacement	558 ci 9.1 L
Bore/Stroke	5.118x4.528 inches 130 x 115 mm
Power	175 hp 130.5 kW
Air cleaner	dry
Compression	15:1
Rated RPM	2100
Starter type	gasoline pony motor
Coolant capacity	44 qts 41.6 L

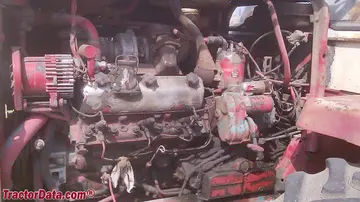

Belarus 1500 Engine
Image courtesy of Nevin Bontrager

Transmission

	1977 - 1985 Four-wheel Drive (4WD) tractorXTZ built
1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

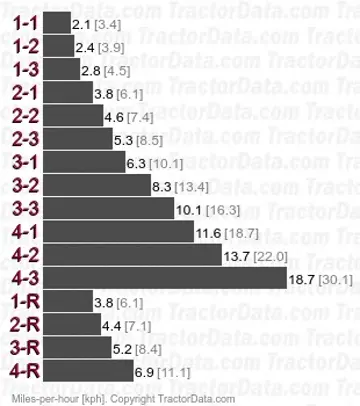

Transmission — 12 forward and 4 reverse partial power shift

Type	partial power shift
Gears	12 forward and 4 reverse
Clutch	dry disc

Dimensions

	1977 - 1985 Four-wheel Drive (4WD) tractorXTZ built
1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

Belarus 1500 Tires
Ag front	21.3-24
Ag rear	21.3-24

Dimensions
Wheelbase	112.6 inches 286 cm
Length	241 inches 612 cm
Width	94.5 inches 240 cm
Height	124.6 inches 316 cm
Operating weight	18600 lbs 8436 kg
Ballasted weight	19885 lbs 9019 kg
Front tread	73.2 inches 185 cm
Rear tread	73.2 inches 185 cm

Tests

	1977 - 1985 Four-wheel Drive (4WD) tractorXTZ built
1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

1977 - 1985
Four-wheel Drive (4WD) tractor
XTZ built

Nebraska Tractor Test 1333
Diesel 12-speed 4WD November 14 - 27, 1979 Link: Nebraska Tractor Test 1333 file
PTO performance
Power at rated engine speed	168.76 hp 125.8 kW
Fuel use	10.4 gal/hour 39.4 l/hour
Power at rated PTO speed	169.63 hp 126.5 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Drawbar performance
Max power	147.03 hp 109.6 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Gear 2-2 used for power test.
Max pull	19,311 lbs 8759 kg
Gear 1-3 used for pull test.

Photos

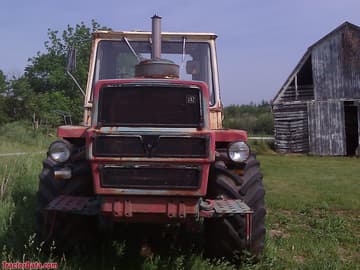

Belarus 1500

Belarus 1500

Belarus 1500

Belarus 1500
