Belarus 1770

The Belarus 1770 is a tractor produced by Belarus. It is equipped with a 558.4 ci 9.2 L engine. The rated power output is 185 hp 138.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 19585 lbs 8883 kg.

Overview

	1985 - 1997 Four-wheel Drive (4WD) tractorXTZ built
1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

Production
Distributor	Belarus
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine
Original price was $44,000 in 1997

Belarus 1770 Engine
Belarus 9.2L 6-cyl diesel
Engine details ...

Belarus 1770 Transmission
12-speed four-speed power shift
Transmission details ...

Belarus 1770 Power
Engine	185 hp 138.0 kW
Drawbar (claimed)	151 hp 112.6 kW
PTO (claimed)	171 hp 127.5 kW
Drawbar (tested)	148.11 hp 110.4 kW
PTO (tested)	167.6 hp 125.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	articulated hydraulic power
Pneumatic shoe brakes
Cab standard.

Capacity
Fuel	83.2 gal 314.9 L
Hydraulic system	10.25 gal 38.8 L

Hydraulics
Type	open center
Capacity	10.25 gal 38.8 L
Pressure	2275 psi 156.9 bar
Valves	2
Pump flow	28.2 gpm 106.7 lpm

Tractor hitch
Rear Type	III
Rear lift	12480 lbs 5660 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2025
	1000@2050

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	19585 lbs 8883 kg
Front tire	23.1-26
Rear tire	23.1-26
Full dimensions and tires ...

References
Model 1770 published in 1988, by Belarus

Engine

	1985 - 1997 Four-wheel Drive (4WD) tractorXTZ built
1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

Engine Detail — 558.4 ci / 9.2 L Diesel

Manufacturer	Belarus SMD-63
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled V-6
Displacement	558.4 ci 9.2 L
Bore/Stroke	5.118x4.528 inches 130 x 115 mm
Power	185 hp 138.0 kW
Fuel system	direct injection
Compression	15:1
Rated RPM	2100
Starter volts	24
Coolant capacity	44 qts 41.6 L

Transmission

	1985 - 1997 Four-wheel Drive (4WD) tractorXTZ built
1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

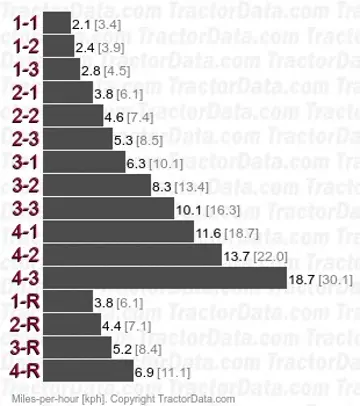

Transmission — 12 forward and 4 reverse four-speed power shift

Type	four-speed power shift
Gears	12 forward and 4 reverse
Clutch	pneumatic dry disc

Dimensions

	1985 - 1997 Four-wheel Drive (4WD) tractorXTZ built
1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

Belarus 1770 Tires
Ag front	23.1-26
Ag rear	23.1-26

Dimensions
Wheelbase	112.6 inches 286 cm
Length	241 inches 612 cm
Width	94.5 inches 240 cm
Height	124.6 inches 316 cm
Operating weight	19585 lbs*Weight with single 23.1-26 tires. 8883 kg
Front tread	73.2 inches 185 cm
Rear tread	73.2 inches 185 cm

Tests

	1985 - 1997 Four-wheel Drive (4WD) tractorXTZ built
1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

1985 - 1997
Four-wheel Drive (4WD) tractor
XTZ built

Nebraska Tractor Test 1641
Diesel 12-speed 4WD May 7 - 17, 1990 Link: Nebraska Tractor Test 1641 file
PTO performance
Power at rated engine speed	167.6 hp 125.0 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Power at rated PTO speed	171.27 hp 127.7 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Drawbar performance
Max power	148.11 hp 110.4 kW
Fuel use	10.2 gal/hour 38.6 l/hour
Gear 2-2 used for power test.
Max pull	18440 lbs 8364 kg
Gear 1-2 used for pull test.
