Belarus 1507

The Belarus 1507 is a tractor produced by Belarus. It is equipped with a 558.4 ci 9.2 L engine. The rated power output is 165 hp 123.0 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x4 artciulated 4WD. Operating weight: 20283 lbs 9200 kg.

Overview

	Four-wheel Drive (4WD) tractor	Four-wheel Drive (4WD) tractor

Production
Manufacturer	Belarus
Four-wheel Drive (4WD) tractor

Belarus 1507 Engine
Belarus 9.2L 6-cyl diesel
Engine details ...

Belarus 1507 Transmission
12-speed
Transmission details ...

Belarus 1507 Power
Engine	165 hp 123.0 kW

Mechanical
Drive	4x4 artciulated 4WD
Final drives	planetary
Articulated power steering
Pneumatic drum brakes
Cab standard with heat.

Hydraulics
Type	open center
Pump flow	21.1 gpm 79.9 lpm

Tractor hitch
Rear Type	III
Rear lift	5512 lbs 2500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	20283 lbs 9200 kg
Front tire	21.3x24
Rear tire	21.3x24
Full dimensions and tires ...

References
1507 published by Belarus

Engine

Engine Detail — 558.4 ci / 9.2 L Diesel

Manufacturer	Belarus CMD-63
Configuration	turbocharged diesel, 6-cylinder V6-valve, liquid-cooled
Displacement	558.4 ci 9.2 L
Bore/Stroke	5.12x4.53 inches 130 x 115 mm
Power	165 hp 123.0 kW
Air cleaner	dry
Compression	15:1
Rated RPM	2100
Firing order	1-4-2-5-3-6
Starter	electric
Starter volts	24

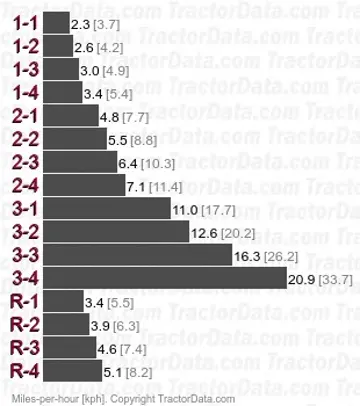

Transmission

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	pneumatic dry disc
Four gears in three ranges, plus reverse range.

Dimensions

Belarus 1507 Tires
Ag front	21.3x24
Ag rear	21.3x24

Dimensions
Wheelbase	112.6 inches 286 cm
Length	233.5 inches 593 cm
Width	97 inches 246 cm
Height	130.5 inches 331 cm
Operating weight	20283 lbs 9200 kg
Ground clearance	15.8 inches 40 cm
Front tread	73.2 inches 185 cm
Rear tread	73.2 inches 185 cm

Photos

Belarus 1507 tractor photo
