Belarus 6520

The Belarus 6520 is a tractor produced by Belarus. It is equipped with a 434 ci 7.1 L engine. Transmission: 16 forward and 8 reverse. Operating weight: 11,222 lbs 5090 kg.

Fuel & Capacities
28.6 gal 108.3 L
Transmission
16 forward and 8 reverse
Operating Weight
11,222 lbs 5090 kg

Overview

Belarus 6520 tractor photo
2011 - Row-Crop tractor
2011 -
Row-Crop tractor
Production
Manufacturer
Belarus
Row-Crop tractor
Belarus 6520 Engine
7.1L 6-cyl diesel
Fuel tank
28.6 gal 108.3 L
Engine details ...
Belarus 6520 Transmission
16-speed partially synchronized
Transmission details ...
Belarus 6520 Power
PTO (claimed)
125 hp 93.2 kW
Mechanical
Four-wheel drive
Differential lock
electro-hydraulic
Steering
hydrostatic power
Disc brakes
Cab with heater.
Hydraulics
Type
open center
Tractor hitch
Rear Type
III
Control
draft and position control
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
108.2 inches 274 cm
Weight
11,222 lbs 5090 kg
Front tire
14.9Rx24
Rear tire
18.4Rx38
Full dimensions and tires ...

Engine

Engine Detail — 434 ci / 7.1 L Diesel

Manufacturer
D260.2
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
434 ci 7.1 L
Rated RPM
2100

Transmission

Transmission — 16 forward and 8 reverse partially synchronized

Type
partially synchronized
Gears
16 forward and 8 reverse
Clutch
dry disc
With 18.4x38 rear tires.

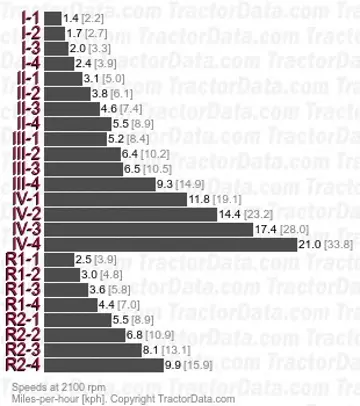

6520 partially synchronized speeds

Dimensions

Belarus 6520 Tires
Standard tires (ag)
Front: 14.9Rx24. Rear: 18.4Rx38
Dimensions
Wheelbase
108.2 inches 274 cm
Length
194.8 inches 494 cm
Width
77.5 inches 196 cm
Height (cab)
114 inches 289 cm
Weight
11,222 lbs 5090 kg
Front tread
59 to 70.8 inches 149 to 179 cm
Rear tread
59 to 82.7 inches 149 to 210 cm

Photos

Belarus 6520 tractor photo

Belarus 6520 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Belarus 6520.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Belarus 6520 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Belarus 6520.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
