Bobcat CT122
The Bobcat CT122 is a tractor produced by Bobcat. It is equipped with a 61.5 ci 1.0 L engine. The listed engine power is Diesel (gross): 22 hp / 16.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1,032 lbs 468 kg.
Engine Power
Diesel (gross): 22 hp / 16.4 kW
Fuel & Capacities
5.3 gal
20.1 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1,032 lbs
468 kg
Overview
 | 2008 - 2013
Compact Utility tractorDaedong built
Compact Utility tractor
Daedong built |
|---|
Production | |
|---|---|
Distributor | Bobcat |
Manufacturer | Daedong |
Compact Utility tractor | |
Built in Daegu, South Korea | |
Bobcat CT122 Engine | |
|---|---|
Daedong 1.0L 3-cyl diesel | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ...  | |
Bobcat CT122 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Bobcat CT122 Power | |
|---|---|
Engine (gross) | 22 hp
16.4 kW |
PTO (claimed) | 16.2 hp
12.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Integral wet disc brakes | |
ROPS. | |
Hydraulics | |
|---|---|
Valves | 1 |
Total flow | 7.7 gpm
29.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 860 lbs
390 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 57.9 inches
147 cm |
Weight | 2,056 lbs
932 kg |
Front tire | 6x12 |
Rear tire | 9.5x16 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Compact Tractors published in 2010, by Bobcat |
Engine
Engine Detail — 61.5 ci / 1.0 L Diesel
Manufacturer | Daedong |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.5 ci
1.0 L |
Power (gross) | 22 hp
16.4 kW |
Transmission
Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Bobcat CT122 Tires | |
|---|---|
Ag front | 6x12 |
Ag rear | 9.5x16 |
Lawn/turf front | 23x8.5-12 |
Lawn/turf rear | 33x12.5-16.5 |
Industrial front | 23x8.5-12 |
Industrial rear | 12-16.5 |
Dimensions | |
|---|---|
Wheelbase | 57.9 inches
147 cm |
Length | 105.7 inches
268 cm |
Width | 46.5 inches
118 cm |
Height (ROPS) | 81.8 inches
207 cm |
Weight | 2,056 lbs
932 kg |
Ground clearance | 10.7 inches
27 cm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Front-end loader | |
Backhoe |
54" Mower deck | |
|---|---|
Type | mid-mount Bobcat |
3-blade with hydraulic lift | |
Cutting width | 54 inches
137 cm |
Weight | 244 lbs
110 kg |
Bobcat 6TB Backhoe | |
|---|---|
Backhoe type | Bobcat 6TB Backhoe |
Weight | 1,032 lbs
468 kg |
Digging depth | 78 inches
198 cm |
Reach from pivot | 107 inches
271 cm |
Bucket force | 2,875 lbs
1304 kg |
Dipperstick force | 1,744 lbs
791 kg |
Photos

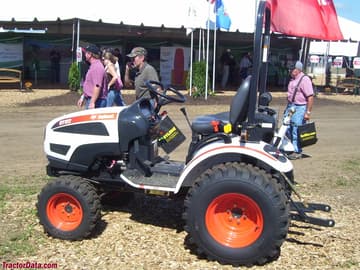

Bobcat CT122
Recommended Implements & Sizing Guide
Engineering recommendations for Bobcat CT122 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bobcat CT122.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bobcat CT122 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bobcat CT122.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
Direct Competitor Comparison
Compare Bobcat CT122 against same-era industry alternatives in the same horsepower class.
Current Model
Bobcat
Bobcat CT122
Engine Power:Diesel (gross): 22 hp / 16.4 kW
★ Baseline Reference
