Bobcat CT2025

The Bobcat CT2025 is a tractor produced by Bobcat. It is equipped with a 100.6 ci 1.6 L engine. The rated power output is 24.5 hp 18.3 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 880 lbs*Weight without bucket. 399 kg.

Overview

	2019 - 2000 SeriesCompact Utility tractorDaedong built
2019 -
2000 Series
Compact Utility tractor
Daedong built

2019 -
2000 Series
Compact Utility tractor
Daedong built

Production
Distributor	Bobcat
Manufacturer	Daedong
Compact Utility tractor
Original price was $15,284 in 2019

Bobcat CT2025 Engine
Daedong 1.6L 3-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

Bobcat CT2025 Power
Engine	24.5 hp 18.3 kW
Gear PTO (claimed)	22.2 hp 16.6 kW
Hydro PTO (claimed)	21.8 hp 16.3 kW

Mechanical
Four-wheel drive
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Total flow	11.34 gpm 42.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at 24"/610mm)	1631 lbs 739 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Mid PTO Type	1976

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	2646 lbs 1200 kg
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Compact Tractors published in 2020, by Bobcat

Engine

	2019 - 2000 SeriesCompact Utility tractorDaedong built
2019 -
2000 Series
Compact Utility tractor
Daedong built

2019 -
2000 Series
Compact Utility tractor
Daedong built

Engine Detail — 100.6 ci / 1.6 L Diesel

Manufacturer	Daedong 3A165
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	100.6 ci 1.6 L
Bore/Stroke	3.43x3.64 inches 87 x 92 mm
Emissions	Tier 3
Power	24.5 hp 18.3 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

	2019 - 2000 SeriesCompact Utility tractorDaedong built
2019 -
2000 Series
Compact Utility tractor
Daedong built

2019 -
2000 Series
Compact Utility tractor
Daedong built

Transmission options
9-speed gear
hydrostatic

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

	2019 - 2000 SeriesCompact Utility tractorDaedong built
2019 -
2000 Series
Compact Utility tractor
Daedong built

2019 -
2000 Series
Compact Utility tractor
Daedong built

Bobcat CT2025 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24
Lawn/turf front	28x8.5-15
Lawn/turf rear	41x14-20
Industrial front	27x8.5-15
Industrial rear	15-19.5

Dimensions
Wheelbase	65 inches 165 cm
Length	120.9 inches 307 cm
Width	64 inches 162 cm
Height (ROPS)	91.5 inches 232 cm
Operating weight	2646 lbs 1200 kg
Ground clearance	11.5 inches 29 cm

Attachments

	2019 - 2000 SeriesCompact Utility tractorDaedong built
2019 -
2000 Series
Compact Utility tractor
Daedong built

2019 -
2000 Series
Compact Utility tractor
Daedong built

Attachment overview
60" mid-mount mower deck
Snowblower
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Bobcat M60-5
	3-blade
Cutting width	60 inches 152 cm
Weight	380 lbs 172 kg
Overall width	74.1 inches 188 cm
Cut height	1 to 4 inch 2 to 10 cm

Bobcat BH76 Backhoe
Backhoe type	Bobcat BH76 Backhoe
Weight	880 lbs*Weight without bucket. 399 kg
Transport height	83.5 inches 212 cm
2-Foot flat digging depth	90 inches 228 cm
Reach from pivot	122 inches 309 cm
Loading height	74 inches 187 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3075 lbs 1394 kg

Photos

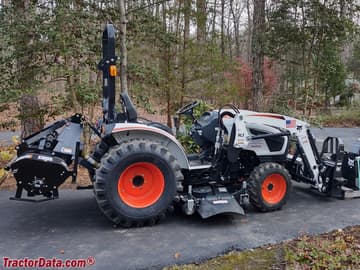

Bobcat CT2025 with loader, mid-mount mower, and tiller.

Bobcat CT2025 with loader, mid-mount mower, and tiller.

Bobcat CT2025 with loader, mid-mount mower, and tiller.

Bobcat CT2025 with loader, mid-mount mower, and tiller.

Bobcat CT2025 with FL7 loader.
