Bobcat CT1025

The Bobcat CT1025 is a tractor produced by Bobcat. It is equipped with a 69.1 ci 1.1 L engine. The rated power output is 24.5 hp 18.3 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 657 lbs*Weight without bucket. 298 kg.

Overview

	2019 - 1000 SeriesSub-Compact Utility tractorDaedong built
2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

Production
Distributor	Bobcat
Manufacturer	Daedong
Sub-Compact Utility tractor
Original price was $12,922 in 2019

Bobcat CT1025 Engine
Shibaura 1.1L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Bobcat CT1025 Transmission
hydrostatic
Transmission details ...

Bobcat CT1025 Power
Engine	24.5 hp 18.3 kW
PTO (claimed)	19.4 hp 14.5 kW

Mechanical
Four-wheel drive
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Total flow	6.5 gpm 24.6 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at 24"/610mm)	700 lbs 317 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO Type	2200

Dimensions & Tires
Wheelbase	55 inches 139 cm
Weight	1488 lbs 674 kg
Front tire	18x8.5-10
Rear tire	26x12.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Sub-Compact Tractors CT1021 - CT1025 published in 2020, by Bobcat

Engine

	2019 - 1000 SeriesSub-Compact Utility tractorDaedong built
2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

Engine Detail — 69.1 ci / 1.1 L Diesel

Manufacturer	Shibaura S733L
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	69.1 ci 1.1 L
Bore/Stroke	3.03x3.19 inches 77 x 81 mm
Emissions	Tier 4
Power	24.5 hp 18.3 kW
Rated RPM	3000
Starter	electric
Starter volts	12

Transmission

	2019 - 1000 SeriesSub-Compact Utility tractorDaedong built
2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

	2019 - 1000 SeriesSub-Compact Utility tractorDaedong built
2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

Bobcat CT1025 Tires
Standard tires (ag)	Front: 18x8.5-10. Rear: 26x12.00-12
Industrial front	18x8.5-10
Industrial rear	26x12.00-12

Dimensions
Wheelbase	55 inches 139 cm
Length	99.3 inches 252 cm
Width	46 inches 116 cm
Height (ROPS)	87.6 inches 222 cm
Operating weight	1488 lbs 674 kg
Ground clearance	6.3 inches 16 cm

Attachments

	2019 - 1000 SeriesSub-Compact Utility tractorDaedong built
2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

2019 -
1000 Series
Sub-Compact Utility tractor
Daedong built

Attachment overview
60" mid-mount mower deck
Snowblower
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Bobcat M60
	3-blade
Cutting width	60 inches 152 cm
Weight	374 lbs 169 kg
Cut height	1 to 4 inch 2 to 10 cm

Bobcat BH66 Backhoe
Backhoe type	Bobcat BH66 Backhoe
Weight	657 lbs*Weight without bucket. 298 kg
Transport height	70 inches 177 cm
2-Foot flat digging depth	73 inches 185 cm
Reach from pivot	100 inches 254 cm
Loading height	55 inches 139 cm
Bucket Rotation	152°
Swing Arc	180°
Bucket force	2240 lbs 1016 kg

Photos

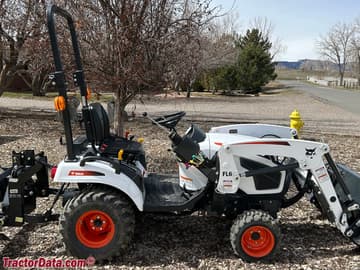

Bobcat CT1025
