Bobcat CT225

The Bobcat CT225 is a tractor produced by Bobcat. It is equipped with a 79.3 ci 1.3 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: hydrostatic. Operating weight: 1,047 lbs 474 kg.

Overview

	2008 - 2013 Compact Utility tractorDaedong built Compact Utility tractor Daedong built

Production
Distributor	Bobcat
Manufacturer	Daedong
Compact Utility tractor
Built in Daegu, South Korea

Variants
CK27	similar Kioti model

Bobcat CT225 Engine
Daedong 1.3L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Bobcat CT225 Power
Engine	25 hp 18.6 kW
PTO (claimed)	19.5 hp 14.5 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
folding ROPS

Hydraulics
Valves	1 or 2
Pump flow	8.2 gpm 31.0 lpm
Total flow	12.7 gpm 48.1 lpm
Steering flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	1
Rear lift (at 24"/610mm)	1,225 lbs 555 kg
	1,400 lbs (with loader) 635 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	66.1 inches 167 cm
Weight	3,021 lbs 1370 kg
Front tire	25x8.5-14
Rear tire	15x19.5
Full dimensions and tires ...

References
Compact Tractors published in 2010, by Bobcat

Engine

Engine Detail — 79.3 ci / 1.3 L Diesel

Manufacturer	Daedong TD1300LXE
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
The TD1300LX engine was used in very early models of the CT225. These tractors are based on the Kioti CK25.
Displacement	79.3 ci 1.3 L
Power	25 hp 18.6 kW

Transmission

Transmission — hydrostatic

Transmission	hydrostatic
Gears	infinite forward and reverse (3-range)
11.2x24 rear tires.

Dimensions

Bobcat CT225 Tires
Ag front	25x8.5-14
Ag rear	15x19.5
Ag front	7x14
Ag rear	11.2x24
Lawn/turf front	25x8.5-16
Lawn/turf rear	13.6x16

Dimensions
Wheelbase	66.1 inches 167 cm
Length	118.3 inches 300 cm
Width	55.9 inches 141 cm
Height	95.9 inches 243 cm
Weight	3,021 lbs 1370 kg
Ground clearance	9.9 inches 25 cm

Attachments

Attachment overview
66" mid-mount mower deck
Snowblower
Front-end loader
Backhoe

66" Mower deck
Type	mid-mount Bobcat
	3-blade with hydraulic lift
Cutting width	66 inches 167 cm
Weight	285 lbs 129 kg

Bobcat 6TB Backhoe
Backhoe type	Bobcat 6TB Backhoe
Weight	1,032 lbs 468 kg
Digging depth	78 inches 198 cm
Reach from pivot	107 inches 271 cm
Bucket force	2,875 lbs 1304 kg
Dipperstick force	1,744 lbs 791 kg

Bobcat 7TB Backhoe
Backhoe type	Bobcat 7TB Backhoe
Weight	1,047 lbs 474 kg
Digging depth	90 inches 228 cm
Reach from pivot	117.6 inches 298 cm
Bucket force	2,827 lbs 1282 kg
Dipperstick force	2,022 lbs 917 kg

Photos

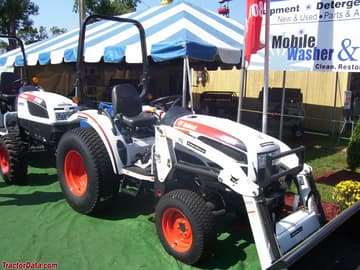

Bobcat CT225
