Bolens G294 TS2904

The Bolens G294 TS2904 is a tractor produced by Bolens. It is equipped with a 89.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 29 hp / 21.6 kW. Transmission: 8 forward and 2 reverse. Operating weight: 2,948 lbs 1337 kg.

Engine Power

Diesel (listed): 29 hp / 21.6 kW

Fuel & Capacities

8 gal 30.3 L

Transmission

8 forward and 2 reverse

Operating Weight

2,948 lbs 1337 kg

Overview

	1981 - 1985 Compact Utility tractorIseki built Compact Utility tractor Iseki built

Production
Distributor	Bolens
Manufacturer	Iseki
Compact Utility tractor

Variants
G292	2WD
G294	4WD
TS2810	similar Iseki model

Bolens G294 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	8 gal 30.3 L
Engine details ...

Bolens G294 Transmission
8-speed
Transmission details ...

Bolens G294 Power
Engine	29 hp 21.6 kW

Mechanical
Four-wheel drive
Differential lock	mechanical standard
Steering	power
Mechanical shoe brakes
Open operator station. Two-post ROPS (#17370) optional with optional canopy.

Hydraulics
Type	open center
Pressure	2130 psi 146.9 bar
Pump flow	7.7 gpm 29.1 lpm

Tractor hitch
Rear Type	1
Control	position and draft control

Power Take-off (PTO)
Rear PTO	live (two-stage clutch)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	70 inches 177 cm
Weight	2,948 lbs 1337 kg
Front tire	6.00-16
Rear tire	12.4x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Equipment Seminar published in 1982
Diesel Tractors - The Work Machines published in 1980, by Bolens

Engine

Engine Detail — 89.3 ci / 1.5 L Diesel

Manufacturer	Iseki 3AA1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	89.3 ci 1.5 L
Power	29 hp 21.6 kW
Pre-heating	glow plugs
Rated RPM	2600
Torque	63.5 lb-ft 86.1 Nm
Torque RPM	1800
Starter	electric
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse

Gears	8 forward and 2 reverse
Clutch	dual-stage dry disc

Dimensions

Bolens G294 Tires
Standard tires (ag)	Front: 6.00-16. Rear: 12.4x24

Dimensions
Wheelbase	70 inches 177 cm
Length	122 inches 309 cm
Width	59 inches 149 cm
Height	79 inches 200 cm
Weight	2,948 lbs 1337 kg
Ground clearance	12.6 inches 32 cm
Front tread	44 inches 111 cm
Rear tread	47 to 60 inches 119 to 152 cm

Photos

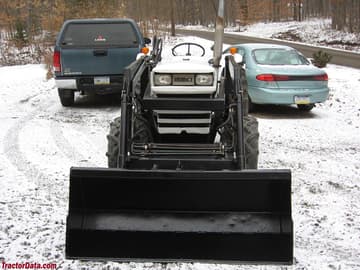

Bolens G294 TS2904

Recommended Implements & Sizing Guide

Engineering recommendations for Bolens G294 TS2904 based on its 29 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens G294 TS2904.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).

Estimated 75% Load Fuel Burn~1.5 gal/hr (5.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
