Kubota L2250

The Kubota L2250 is a tractor produced by Kubota. It is equipped with a 79.3 ci 1.3 L engine. The rated power output is 26.5 hp 19.8 kW. Transmission: 8 forward and 7 reverse. Operating weight: 2170 to 2425 pounds.

Overview

	1985 - 1992 L SeriesCompact Utility tractor
1985 - 1992
L Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor
Built in Japan

Variants
L2250F	2WD
L2250DT	4WD

Kubota L2250 Engine
Kubota 1.3L 3-cyl diesel
Engine details ...

Kubota L2250 Power
Engine (gross)	26.5 hp 19.8 kW
PTO (claimed)	21 hp 15.7 kW
Drawbar (tested)	16.84 hp 12.6 kW
PTO (tested)	21.15 hp 15.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Steering	manual
	power (optional)
Differential wet disc brakes
Two-post ROPS with optional canopy.

Capacity
Fuel	7.7 gal 29.1 L
Hydraulic system	8.2 gal 31.0 L

Hydraulics
Type	open center
Capacity	8.2 gal 31.0 L
Pressure	2275 psi 156.9 bar
Valves	1 to 3
Pump flow	6.7 gpm 25.4 lpm
Steering flow	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1875 lbs 850 kg
Rear lift (at 24"/610mm)	1435 lbs 650 kg

Power Take-off (PTO)
Rear PTO	continuous
	live OptOptional
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2400
	1000@2438
Mid PTO	optional
Mid PTO Type	1080/2000

Dimensions & Tires
Wheelbase	64.6 inches 164 cm
Weight	2170 to 2425 pounds
Front tire	4.00-15
Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	35
Battery volts	12
Battery AH	80

References
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Mid-Mount Mowers B/L Series published in 1994, by Kubota*
Front Loaders published in 1988, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota*
Product Catalog published in 1990, by Kubota
L2250/L2550/L2850 published in 1986, by Kubota
L2250/L2550/L2850 published in 1992, by Kubota
*Publication contains known errors.

Engine

Engine Detail — 79.3 ci / 1.3 L Diesel

Manufacturer	Kubota D1302-DI-A
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	79.3 ci 1.3 L
Bore/Stroke	3.23x3.23 inches 82 x 82 mm
Power (gross)	26.5 hp 19.8 kW
Air cleaner	paper element
Compression	18:1
Rated RPM	2600
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	5.3 qts 5.0 L

Transmission

Transmission options
8-speed mechanical shuttle
8-speed partially synchronized

Transmission — 8 forward and 7 reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and 7 reverse
Oil capacity	32.8 qts 31.0 L
Four gears with high and low ranges, and mechanical shuttle. Fourth gear is locked out in high range.

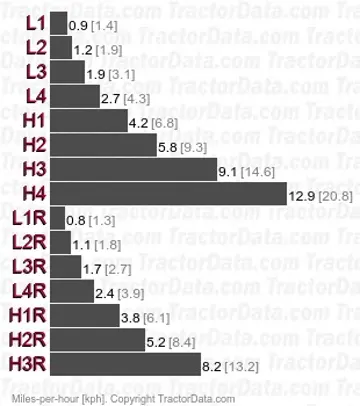

Transmission — 8 forward and 7 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 7 reverse
Oil capacity	32.8 qts 31.0 L
Four gears with high and low ranges, and mechanical shuttle. Synchronized shifting between gears 3-4 in both ranges.

Dimensions

Kubota L2250 Tires
2WD Ag front	4.00-15
4WD Ag front	6-14
Ag rear	9.5-24

Dimensions
Wheelbase	64.6 inches 164 cm
Length	108.3 inches 275 cm
Width	49.4 inches 125 cm
Height	79.9 inches 202 cm
2WD Ground clearance	13.6 inches 34 cm
4WD] Ground clearance	12.0 inches 30 cm
Front tread	39.8 inches 101 cm
Rear tread	40.0 to 44.7 inches 101 to 113 cm

Kubota L2250 Weight
Shipping	2,170 lbs (2WD) 984 kg
	2,380 lbs (4WD) 1079 kg
Operating	2,425 lbs (4WD) 1099 kg
Ballasted	3,130 lbs 1419 kg

Tests

Nebraska Tractor Test 1585
Diesel 8-speed 4WD October 28 - November 5, 1985 Link: Nebraska Tractor Test 1585 file
PTO performance
Power at rated engine speed	21.15 hp 15.8 kW
Fuel use	1.3 gal/hour 4.9 l/hour
Power at rated PTO speed	21.45 hp 16.0 kW
Fuel use	1.2 gal/hour 4.5 l/hour
Drawbar performance
Max power	16.84 hp 12.6 kW
Fuel use	1.3 gal/hour 4.9 l/hour
Max pull	2,673 lbs 1212 kg

Attachments

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck
Kubota BF400G loader
Kubota LA450A loader
Backhoe
Rear-mounted tillers for the Kubota L2250 included the 40-inch model FL1021 and 50-inch model FL1271. The tractor could be equipped with the BL78 post hole digger or a 52-inch box blade.

Kubota BL4520B Backhoe
Backhoe type	Kubota BL4520B Backhoe
Transport height	59.4 inches 150 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	80.9 inches 205 cm
Reach from pivot	97 inches 246 cm
Loading height	59.7 inches 151 cm
Bucket Rotation	164°
Swing Arc	180°
Bucket force	2700 lbs 1224 kg
Dipperstick force	1340 lbs 607 kg

Kubota L4530B Backhoe
Backhoe type	Kubota L4530B Backhoe
Transport height	71.2 inches 180 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	96 inches 243 cm
Reach from pivot	112 inches 284 cm
Loading height	70.8 inches 179 cm
Bucket Rotation	194°
Swing Arc	180°
Bucket force	2890 lbs 1310 kg
Dipperstick force	1645 lbs 746 kg

Kubota BL4590 Backhoe
Backhoe type	Kubota BL4590 Backhoe
Transport height	79 inches 200 cm
Bucket width	13 inches 33 cm
	18 inches 45 cm
	24 inches 60 cm
	30 inches 76 cm
	36 inches 91 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	78.9 inches 200 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg

Kubota BL4690 Backhoe
Backhoe type	Kubota BL4690 Backhoe
Transport height	76.8 inches 195 cm
Bucket width	10 inches 25 cm
	12 inches 30 cm
	16 inches 40 cm
	24 inches 60 cm
Digging depth	90.2 inches 229 cm
Reach from pivot	116.5 inches 295 cm
Loading height	75.5 inches 191 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	2950 lbs 1338 kg
Dipperstick force	1740 lbs 789 kg
