Bolens 1600G 1667
The Bolens 1600G 1667 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Peerless. Operating weight: 703 lbs 318 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Peerless
Operating Weight
703 lbs
318 kg
Overview
 | 1983 - 1987
Medium Frame SeriesGarden tractor
Medium Frame Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Variants | |
|---|---|
1600G | gear |
1600H | hydrostatic |
Bolens 1600G Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Bolens 1600G Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 703 lbs
318 kg |
Front tire | 16/6.50-8 |
Rear tire | 23/8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 402437 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.437x2.156 inches
87 x 55 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | dry with foam precleaner |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Sparkplug | Champion J-8 |
Sparkplug gap | 0.030 inches
0.762 mm |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | gear |
Gears | 4 forward and 1 reverse |
Oil capacity | 1.5 qts
1.4 L |
Oil type | EP 90 Gear Lube |
Dimensions
Bolens 1600G Tires | |
|---|---|
Lawn/turf front | 16/6.50-8 |
Lawn/turf rear | 23/8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 70.75 inches
179 cm |
Width | 36.25 inches
92 cm |
Height | 44 inches
111 cm |
Weight | 703 lbs
318 kg |
Ground clearance | 7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

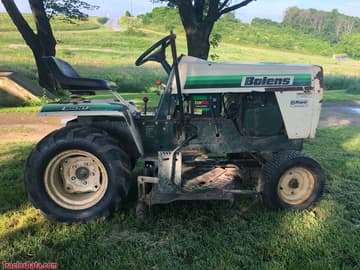

Bolens 1600G 1667
Bolens 1600G 1667
Recommended Implements & Sizing Guide
Engineering recommendations for Bolens Lawn Tractors Bolens 1600G 1667 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1600G 1667.
Estimated Continuous Field Runtime: 4.2 hrs
Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 1600G 1667 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 1600G 1667.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Bolens 1600G 1667 against same-era industry alternatives in the same horsepower class.
Current Model
Bolens Lawn Tractors
Bolens 1600G 1667
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
