Bolens 1600H 1668

The Bolens 1600H 1668 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: Eaton 11. Operating weight: 785 lbs 356 kg.

Engine Power

Gasoline (gross): 16 hp / 11.9 kW

Fuel & Capacities

3.5 gal 13.2 L

Transmission

Eaton 11

Operating Weight

785 lbs 356 kg

Overview

	1983 - 1989 Medium Frame SeriesGarden tractor Medium Frame Series Garden tractor

Production
Manufacturer	Bolens
Garden tractor

Variants
1600G	gear
1600H	hydrostatic

Bolens 1600H Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Bolens 1600H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	49 inches 124 cm
Weight	785 lbs 356 kg
Front tire	16/6.50-8
Rear tire	23/8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery volts	12

References

High Performance published in 1987, by Bolens
Lawn & Garden published in 1988, by Bolens*
Lawn and Garden Power Products published in 1989, by Bolens
*Publication contains known errors.

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 402437
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	655 cc 40 ci
Bore/Stroke	3.437x2.156 inches 87 x 55 mm
Power (gross)	16 hp 11.9 kW
Air cleaner	dry with foam precleaner
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Sparkplug	Champion J-8
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Eaton 11

Transmission	Eaton 11
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	8 qts 7.6 L
Oil type	SAE 20SAE 30	SAE 20	SAE 30

Dimensions

Bolens 1600H Tires
Lawn/turf front	16/6.50-8
Lawn/turf rear	23/8.50-12

Dimensions
Wheelbase	49 inches 124 cm
Length	70.75 inches 179 cm
Width	36.25 inches 92 cm
Height	44 inches 111 cm
Weight	785 lbs 356 kg
Ground clearance	7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

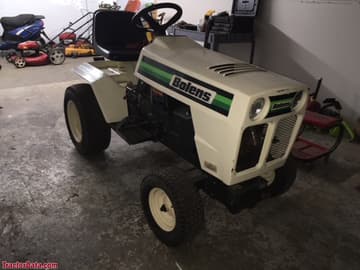

Bolens 1600H 1668

Bolens 1600H dashboard.

Bolens 1600H with mower deck.

Recommended Implements & Sizing Guide

Engineering recommendations for Bolens Lawn Tractors Bolens 1600H 1668 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 1600H 1668.

Estimated Continuous Field Runtime: 4.2 hrs

Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (3.5 gal / 13.2 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
