Bolens 600
The Bolens 600 is a tractor produced by Bolens Lawn Tractors. It is equipped with a 231 cc 14.1 ci engine. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: Bolens. Operating weight: 465 to 520 pounds.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
Bolens
Operating Weight
465 to 520 pounds
Overview
 | 1962 - 1965
Tube Frame SeriesGarden tractor
Tube Frame Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Bolens |
Garden tractor | |
Bolens 600 Engine | |
|---|---|
6HP Briggs & Stratton 231cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Bolens 600 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Dimensions & Tires | |
|---|---|
Wheelbase | 40 inches
101 cm |
Weight | 465 to 520 pounds |
Front tire | 4.00-8 |
Rear tire | 6.00-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 1962, by Bolens | |
Outdoor Power Equipment published in 1963, by Bolens | |
Outdoor Power Equipment published in 1964, by Bolens | |
Husky Tractors published in 1964, by Bolens | |
Outdoor Power Equipment published in 1965, by Bolens |
Engine
Engine Detail — 231 cc / 14.1 ci Gasoline
Manufacturer | Briggs & Stratton 142301 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 231 cc
14.1 ci |
Bore/Stroke | 2.75x2.375 inches
70 x 60 mm |
Power | 6 hp
4.5 kW |
Air cleaner | oil bath |
Rated RPM | 3600 |
Starter | manual recoil |
electric OptOptional | |
Starter volts | 12 |
Oil capacity | 1.4 qts
1.3 L |
Transmission
Transmission — Bolens
Transmission | Bolens |
Type | gear |
Gears | 3 forward and 1 reverse |
The three-speed transmission is fitted with two range pulleys. Changing the input belt allows for a second speed range. | |
 | |
Dimensions
Bolens 600 Tires | |
|---|---|
Lawn/turf front | 4.00-8 |
Lawn/turf rear | 6.00-12 |
Dimensions | |
|---|---|
Wheelbase | 40 inches
101 cm |
Length | 60 inches
152 cm |
Width | 30 inches
76 cm |
Height | 40 inches
101 cm |
Shipping weight | 465 lbs (recoil)
210 kg |
520 lbs (electric)
235 kg | |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
32" Mower deck | |
|---|---|
Type | mid-mount Bolens |
3-blade | |
Cutting width | 32 inches
81 cm |
Photos

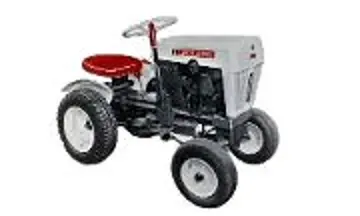

Bolens 600
Bolens 600
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Bolens Lawn Tractors Bolens 600.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Bolens Lawn Tractors Bolens 600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Bolens Lawn Tractors Bolens 600.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
