Branson 3725CH

The Branson 3725CH is a tractor produced by Branson. It is equipped with a 127.2 ci 2.1 L engine. The listed engine power is Diesel (net): 37 hp / 27.6 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1230 lbs 557 kg.

Overview

	2017 - Compact Utility tractor
2017 -
Compact Utility tractor

Production
Manufacturer	Branson (a part of Kukje)
Compact Utility tractor

Variants
3725R	ROPS shuttle
3725H	ROPS hydrostatic
3725C	Cab shuttle
3725CH	Cab hydrostatic

Branson 3725CH Engine
Kukje 2.1L 4-cyl diesel
Engine details ...

Branson 3725CH Transmission
hydrostatic
Transmission details ...

Branson 3725CH Power
Engine (net)	37 hp 27.6 kW
PTO (claimed)	32 hp 23.9 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Cab with air-conditioning.

Capacity
Fuel	12 gal 45.4 L
Hydraulic system	10 gal 37.9 L

Hydraulics
Type	open center
Capacity	10 gal 37.9 L
Pressure	2100 psi 144.8 bar
Pump flow	10.4 gpm 39.4 lpm
Total flow	15.4 gpm 58.3 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	3306 lbs 1499 kg
Rear lift (at 24"/610mm)	2420 lbs 1097 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E (1.375)
Engine RPM	540@2500
	540E@2000

Dimensions & Tires
Wheelbase	71.1 inches 180 cm
Weight	4195 lbs 1902 kg
Front tire	9.5x16
Rear tire	12.4x28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70
Battery volts	12

Engine

Engine Detail — 127.2 ci / 2.1 L Diesel

Manufacturer	Kukje A2000N3-UTR4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	127.2 ci 2.1 L
Bore/Stroke	3.31x3.70 inches 84 x 94 mm
Emissions	Tier IV
Power (net)	37 hp 27.6 kW
Air cleaner	dual dry element
Compression	22:1
Rated RPM	2600
Starter	electric
Starter volts	12
Oil capacity	7 qts 6.6 L
Coolant capacity	6.4 qts 6.1 L

Transmission

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Oil capacity	40 qts 37.9 L

Dimensions

Branson 3725CH Tires
Standard tires (ag)	Front: 9.5x16. Rear: 12.4x28
Industrial front	10x16.5-6
Industrial rear	420/70x24-6

Dimensions
Wheelbase	71.1 inches 180 cm
Length	129 inches 327 cm
Width	60.2 inches 152 cm
Height (cab)	96.8 inches 245 cm
Shipping weight	4195 lbs 1902 kg
Ground clearance	13.1 inches 33 cm

Attachments

Attachment overview
Front-end loader
Backhoe

Branson BH76 Backhoe
Backhoe type	Branson BH76 Backhoe
Weight	1340 lbs 607 kg
Transport height	85.2 inches 216 cm
Bucket width	16 inches 40 cm
Digging depth	91.2 inches 231 cm
Reach from pivot	123.6 inches 313 cm
Loading height	90 inches 228 cm
Bucket Rotation	149°
Swing Arc	180°
Bucket force	4554 lbs 2065 kg
Dipperstick force	2530 lbs 1147 kg

Branson BH86 Backhoe
Backhoe type	Branson BH86 Backhoe
Weight	1500 lbs 680 kg
Transport height	91.2 inches 231 cm
Bucket width	16 inches 40 cm
Digging depth	103.2 inches 262 cm
Reach from pivot	134.4 inches 341 cm
Loading height	92.4 inches 234 cm
Bucket Rotation	151°
Swing Arc	180°
Bucket force	4435 lbs 2011 kg
Dipperstick force	2694 lbs 1221 kg

Branson K710 Backhoe
Backhoe type	Branson K710 Backhoe
Weight	1230 lbs 557 kg
Transport height	119 inches 302 cm
Bucket width	16 inches 40 cm
Digging depth	94 inches 238 cm
Reach from pivot	127 inches 322 cm
Loading height	51 inches 129 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	3190 lbs 1446 kg
Dipperstick force	1980 lbs 898 kg

Photos

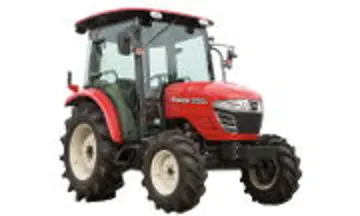

Branson 3725CH tractor photo
