Branson 3510

The Branson 3510 is a tractor produced by Branson. It is equipped with a 105 ci 1.7 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: synchromesh. Operating weight: 3640 lbs 1651 kg.

Overview

	2002 - 2005 10 SeriesCompact Utility tractor
2002 - 2005
10 Series
Compact Utility tractor

Production
Manufacturer	Branson
Compact Utility tractor
Built in Yangsu-ri, South Korea

Branson 3510 Engine
Kukje 1.7L 3-cyl diesel
Engine details ...

Branson 3510 Transmission
12-speed
Transmission details ...

Branson 3510 Power
Engine	35 hp 26.1 kW
PTO (claimed)	31 hp 23.1 kW

Mechanical
Four-wheel drive
Differential lock	standard
Steering	hydrostatic power
Wet disc brakes
Two-post ROPS. Canopy optional.

Capacity
Fuel	10.6 gal 40.1 L
Hydraulic system	9.25 gal 35.0 L

Hydraulics
Type	open center
Capacity	9.25 gal 35.0 L
Valves	0 to 2
Pump flow	8.9 gpm 33.7 lpm
Total flow	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type	I
Rear lift	2580 lbs 1170 kg

Power Take-off (PTO)
Rear PTO	live (2-stage clutch)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	3640 lbs 1651 kg
Front tire	7-16
Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery volts	12

Engine

Engine Detail — 105 ci / 1.7 L Diesel

Manufacturer	Kukje
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	105 ci 1.7 L
Bore/Stroke	3.465x3.701 inches 88 x 94 mm
Power	35 hp 26.1 kW
Pre-heating	block heater OptOptional
Compression	21.3:1
Rated RPM	2600
Starter volts	12
Oil capacity	6.4 qts 6.1 L
Coolant capacity	9.8 qts 9.3 L

Transmission

Transmission — synchromesh

Transmission	synchromesh
Gears	12 forward and reverse
Oil capacity	37 qts 35.0 L

Dimensions

Branson 3510 Tires
Ag front	7-16
Ag rear	12.4-24
Lawn/turf front	27x8.50-15
Lawn/turf rear	41x14.00-20
Industrial front	27x8.50-15
Industrial rear	15x19.5
Industrial front	10-16.5
Industrial rear	420/70-24

Dimensions
Wheelbase	65 inches 165 cm
Length	120 inches 304 cm
Width	58.3 inches 148 cm
Height	95 inches 241 cm
Weight	3640 lbs 1651 kg
Ground clearance	11.2 inches 28 cm

Photos

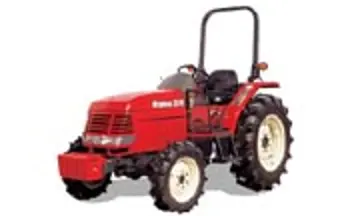

Branson 3510 tractor photo
