Branson 3110i

The Branson 3110i is a tractor produced by Branson. It is equipped with a 95.32 ci 1.6 L engine. The listed engine power is Diesel (gross): 31 hp / 23.1 kW. Transmission: 12 forward and reverse. Operating weight: 3,735 lbs 1694 kg.

Engine Power
Diesel (gross): 31 hp / 23.1 kW
Fuel & Capacities
11 gal 41.6 L
Transmission
12 forward and reverse
Operating Weight
3,735 lbs 1694 kg

Overview

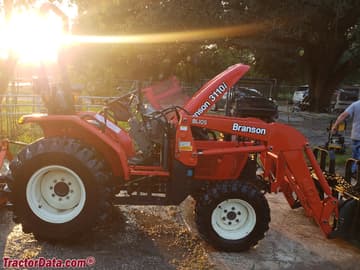

Branson 3110i tractor photo
2008 - ???? Kukje built
2008 - ????
Kukje built
2008 - ????
Kukje built
Production
Distributor
Branson
Manufacturer
Kukje
Built in Yangsu-ri, South Korea
Branson 3110i Engine
1.6L 3-cyl diesel
Fuel tank
11 gal 41.6 L
Engine details ...
Branson 3110i Transmission
12-speed synchronized shuttle
Transmission details ...
Branson 3110i Power
Engine (gross)
31 hp 23.1 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
ROPS. Canopy optional. Soft cab optional.
Hydraulics
Valves
0 to 2
Total flow
8.4 gpm 31.8 lpm
Tractor hitch
Rear Type
I
Rear lift (at ends)
2,140 lbs 970 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/540E
Dimensions & Tires
Wheelbase
65 inches 165 cm
Weight
3,735 lbs 1694 kg
Full dimensions and tires ...

Engine

Branson 3110i tractor photo
2008 - ???? Kukje built
2008 - ????
Kukje built
2008 - ????
Kukje built

Engine Detail — 95.32 ci / 1.6 L Diesel

Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
95.32 ci 1.6 L
Power (gross)
31 hp 23.1 kW
Air cleaner
dry element
Pre-heating
block heater (optional)
Rated RPM
2600
Starter type
electric

Transmission

Branson 3110i tractor photo
2008 - ???? Kukje built
2008 - ????
Kukje built
2008 - ????
Kukje built

Transmission — 12 forward and reverse synchronized shuttle

Type
synchronized shuttle
Gears
12 forward and reverse
Four synchronized gears in each of three ranges plus synchronized shuttle.

Dimensions

Branson 3110i tractor photo
2008 - ???? Kukje built
2008 - ????
Kukje built
2008 - ????
Kukje built
Branson 3110i Tires
Dimensions
Wheelbase
65 inches 165 cm
Length
119 inches 302 cm
Width
55 inches 139 cm
Height (ROPS)
95 inches 241 cm
Weight
3,735 lbs 1694 kg
Ground clearance
11 inches 27 cm
Front tread
44.6 inches 113 cm
Rear tread
42.5 to 57.3 inches 107 to 145 cm

Photos

Branson 3110i

Branson 3110i

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 3110i based on its 31 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 3110i.

Estimated Continuous Field Runtime: 6.8 hrs

Approximately 6.8 hours of continuous field operation at ~75% rated power on a full tank (11 gal / 41.6 L).

Estimated 75% Load Fuel Burn~1.6 gal/hr (6.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 3110i Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 3110i.

Converted Equivalents:

Horsepower (HP)31 hp
Kilowatts (kW)23.1 kW
Metric Horsepower (PS / CV)31.4 PS

Direct Competitor Comparison

Compare Branson 3110i against same-era industry alternatives in the same horsepower class.

Current Model
Branson

Branson 3110i

Engine Power:Diesel (gross): 31 hp / 23.1 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 140

Engine Power:28
Production Years:1958 - 1979
Massey FergusonMarket Competitor

Massey Ferguson 22-28GC

Engine Power:28
Production Years:2007 - 2009
DeereMarket Competitor

Deere 870

Engine Power:28
Production Years:1989 - 1998
New HollandMarket Competitor

New Holland Boomer 1030

Engine Power:28
Production Years:2008 - 2008
