Branson 3820

The Branson 3820 is a tractor produced by Branson. It is equipped with a 110 ci 1.8 L engine. The listed engine power is Diesel (listed): 38 hp / 28.3 kW. Transmission: synchromesh. Operating weight: 3770 lbs 1710 kg.

Engine Power
Diesel (listed): 38 hp / 28.3 kW
Fuel & Capacities
11.1 gal 42.0 L
Transmission
synchromesh
Operating Weight
3770 lbs 1710 kg

Overview

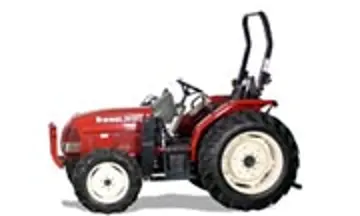

Branson 3820 tractor photo
2004 - 2005 20 SeriesCompact Utility tractor 20 Series Compact Utility tractor
Production
Manufacturer
Branson
Compact Utility tractor
Built in Yangsu-ri, South Korea
Branson 3820 Engine
Kukje 1.8L 4-cyl diesel
Engine details ...
Branson 3820 Transmission
12-speed
Transmission details ...
Branson 3820 Power
Engine
38 hp 28.3 kW
PTO (claimed)
32 hp 23.9 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post ROPS.
Capacity
Fuel
11.1 gal 42.0 L
Hydraulic system
9.7 gal 36.7 L
Hydraulics
Type
open center
Capacity
9.7 gal 36.7 L
Valves
1 to 3
Pump flow
8.9 gpm 33.7 lpm
Total flow
13.2 gpm 50.0 lpm
Tractor hitch
Rear Type
I
Rear lift
2580 lbs 1170 kg
Power Take-off (PTO)
Rear PTO
live (2-stage clutch)
Rear PTO Type
540, 1000
Dimensions & Tires
Wheelbase
69 inches 175 cm
Weight
3770 lbs 1710 kg
Front tire
8-18
Rear tire
12.4-28
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
45
Battery volts
12

Engine

Engine Detail — 110 ci / 1.8 L Diesel

Manufacturer
Kukje
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
110 ci 1.8 L
Bore/Stroke
3.307x3.701 inches 84 x 94 mm
Power
38 hp 28.3 kW
Compression
22.2:1
Rated RPM
2600
Starter volts
12
Oil capacity
6.4 qts 6.1 L
Coolant capacity
9.8 qts 9.3 L

Transmission

Transmission — synchromesh

Transmission
synchromesh
Gears
12 forward and reverse

Dimensions

Branson 3820 Tires
Ag front
8-18
Ag rear
12.4-28
Lawn/turf front
29x12.00-15
Lawn/turf rear
44x18.00-20
Industrial front
12-16.5
Industrial rear
17.5L-24
Dimensions
Wheelbase
69 inches 175 cm
Length
124 inches 314 cm
Width
61 inches 154 cm
Height
96 inches 243 cm
Weight
3770 lbs 1710 kg
Ground clearance
12.2 inches 30 cm

Photos

Branson 3820 tractor photo

Branson 3820 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 3820 based on its 38 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 3820.

Estimated Continuous Field Runtime: 5.6 hrs

Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).

Estimated 75% Load Fuel Burn~2 gal/hr (7.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 3820 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 3820.

Converted Equivalents:

Horsepower (HP)38 hp
Kilowatts (kW)28.3 kW
Metric Horsepower (PS / CV)38.5 PS
