Branson 3510h

The Branson 3510h is a tractor produced by Branson. It is equipped with a 104.6 ci 1.7 L engine. The listed engine power is Diesel (gross): 35 hp / 26.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3478 lbs 1577 kg.

Engine Power
Diesel (gross): 35 hp / 26.1 kW
Fuel & Capacities
9.8 gal 37.1 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
3478 lbs 1577 kg

Overview

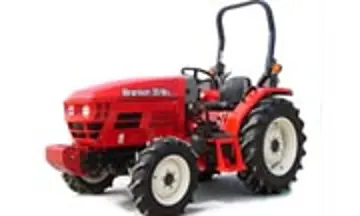

Branson 3510h tractor photo
2005 - ???? Compact Utility tractor
2005 - ????
Compact Utility tractor
2005 - ????
Compact Utility tractor
Production
Manufacturer
Branson (a part of Kukje)
Compact Utility tractor
Variants
3510i
shuttle
3510h
hydrostatic
Branson 3510h Engine
Kukje 1.7L 3-cyl diesel
Fuel tank
9.8 gal 37.1 L
Engine details ...
Branson 3510h Transmission
hydrostatic
Transmission details ...
Branson 3510h Power
Engine (gross)
35 hp 26.1 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Canopy optional.
Hydraulics
Total flow
11.6 gpm 43.9 lpm
Tractor hitch
Rear Type
I
Rear lift (at ends)
2,756 lbs 1250 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/540E
Dimensions & Tires
Wheelbase
65 inches 165 cm
Weight
3478 lbs 1577 kg
Front tire
7-16
Rear tire
12.4-24
Full dimensions and tires ...

Engine

Branson 3510h tractor photo
2005 - ???? Compact Utility tractor
2005 - ????
Compact Utility tractor
2005 - ????
Compact Utility tractor

Engine Detail — 104.6 ci / 1.7 L Diesel

Manufacturer
Kukje A1700
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
104.6 ci 1.7 L
Bore/Stroke
3.46x3.7 inches 88 x 94 mm
Power (gross)
35 hp 26.1 kW
Air cleaner
dry element
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Branson 3510h tractor photo
2005 - ???? Compact Utility tractor
2005 - ????
Compact Utility tractor
2005 - ????
Compact Utility tractor

Transmission — infinite forward and reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (3-range)

Dimensions

Branson 3510h tractor photo
2005 - ???? Compact Utility tractor
2005 - ????
Compact Utility tractor
2005 - ????
Compact Utility tractor
Branson 3510h Tires
Ag front
7-16
Ag rear
12.4-24
Dimensions
Wheelbase
65 inches 165 cm
Length
122 inches 309 cm
Width
55.2 inches 140 cm
Height (ROPS)
93.4 inches 237 cm
Weight
3478 lbs 1577 kg
Ground clearance
11 inches 27 cm
Front tread
44 inches 111 cm
Rear tread
42 to 57 inches 106 to 144 cm

Photos

Branson 3510h tractor photo

Branson 3510h tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 3510h based on its 35 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 3510h.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (9.8 gal / 37.1 L).

Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 3510h Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 3510h.

Converted Equivalents:

Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
