Branson 4815CH

The Branson 4815CH is a tractor produced by Branson. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (listed): 48 hp / 35.8 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3664 lbs 1661 kg.

Overview

	2021 - 2023 15 SeriesCompact Utility tractor
2021 - 2023
15 Series
Compact Utility tractor

Production
Manufacturer	Branson (a part of TYM)
Compact Utility tractor

Variants
4815R	shuttle
4815H	hydrostatic
4815CH	cab

Branson 4815CH Engine
Kukje 2.3L 4-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Branson 4815CH Transmission
hydrostatic
Transmission details ...

Branson 4815CH Power
Engine	48 hp 35.8 kW
PTO (claimed)	40 hp 29.8 kW

Mechanical
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Pump flow	4.4 gpm 16.7 lpm
Total flow	14.3 gpm 54.1 lpm
Steering flow	9.9 gpm 37.5 lpm

Tractor hitch
Rear Type	I
Rear lift	3306 lbs 1499 kg
Rear lift (at 24"/610mm)	2425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	560@2600

Dimensions & Tires
Wheelbase	65.7 inches 166 cm
Weight	3664 lbs 1661 kg
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	70
Battery volts	12

References
15 Series Cabs published in 2021, by Branson

Engine

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer	Kukje A2300N2
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	139.5 ci 2.3 L
Bore/Stroke	3.46x3.70 inches 88 x 94 mm
Emissions	Tier 4
Power	48 hp 35.8 kW
Fuel system	indirect injection
Air cleaner	dry
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Branson 4815CH Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24
Industrial front	28x8.5-14
Industrial rear	15-19.5

Dimensions
Wheelbase	65.7 inches 166 cm
Length	130 inches 330 cm
Width	55.6 inches 141 cm
Height (cab)	89.3 inches 226 cm
Weight	3664 lbs 1661 kg
Ground clearance	13.1 inches 33 cm

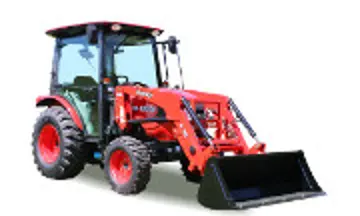

Photos

Branson 4815CH
