Branson 4720

The Branson 4720 is a tractor produced by Branson. It is equipped with a 139 ci 2.3 L engine. The listed engine power is Diesel (listed): 40 hp / 29.8 kW. Transmission: synchromesh. Operating weight: 3,883 lbs 1761 kg.

Engine Power
Diesel (listed): 40 hp / 29.8 kW
Fuel & Capacities
11.1 gal 42.0 L
Transmission
synchromesh
Operating Weight
3,883 lbs 1761 kg

Overview

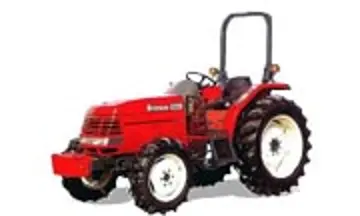

Branson 4720 tractor photo
2004 - 2005 20 SeriesCompact Utility tractor 20 Series Compact Utility tractor
Production
Manufacturer
Branson
Compact Utility tractor
Built in Yangsu-ri, South Korea
Branson 4720 Engine
Kukje 2.3L 4-cyl diesel
Engine details ...
Branson 4720 Transmission
12-speed
Transmission details ...
Branson 4720 Power
Engine
40 hp 29.8 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post ROPS.
Capacity
Fuel
11.1 gal 42.0 L
Hydraulic system
9.7 gal 36.7 L
Hydraulics
Type
open center
Capacity
9.7 gal 36.7 L
Valves
0 to 2
Pump flow
8.9 gpm 33.7 lpm
Total flow
13.2 gpm 50.0 lpm
Tractor hitch
Rear Type
I
Rear lift
2580 lbs 1170 kg
Power Take-off (PTO)
Rear PTO
live *2-stage clutch
Rear PTO Type
540, 1000
Dimensions & Tires
Wheelbase
71 inches 180 cm
Weight
3,883 lbs 1761 kg
Front tire
8-18
Rear tire
12.4-28
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
45
Battery volts
12

Engine

Engine Detail — 139 ci / 2.3 L Diesel

Manufacturer
Kukje A2300N2
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
139 ci 2.3 L
Bore/Stroke
3.465x3.701 inches 88 x 94 mm
Power
40 hp 29.8 kW
Pre-heating
block heater OptOptional
Compression
21.3:1
Rated RPM
2600
Starter volts
12
Oil capacity
6 qts 5.7 L
Coolant capacity
9.8 qts 9.3 L

Transmission

Transmission — synchromesh

Transmission
synchromesh
Gears
12 forward and reverse

Dimensions

Branson 4720 Tires
Ag front
8-18
Ag rear
12.4-28
Lawn/turf front
29x12.00-15
Lawn/turf rear
44x18.00-20
Industrial front
12-16.5
Industrial rear
17.5L-24
Dimensions
Wheelbase
71 inches 180 cm
Length
127 inches 322 cm
Width
61 inches 154 cm
Height
88 inches 223 cm
Weight
3,883 lbs 1761 kg
Ground clearance
12.2 inches 30 cm

Photos

Branson 4720 tractor photo

Branson 4720 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 4720 based on its 40 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 4720.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).

Estimated 75% Load Fuel Burn~2.1 gal/hr (7.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 4720 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 4720.

Converted Equivalents:

Horsepower (HP)40 hp
Kilowatts (kW)29.8 kW
Metric Horsepower (PS / CV)40.6 PS
